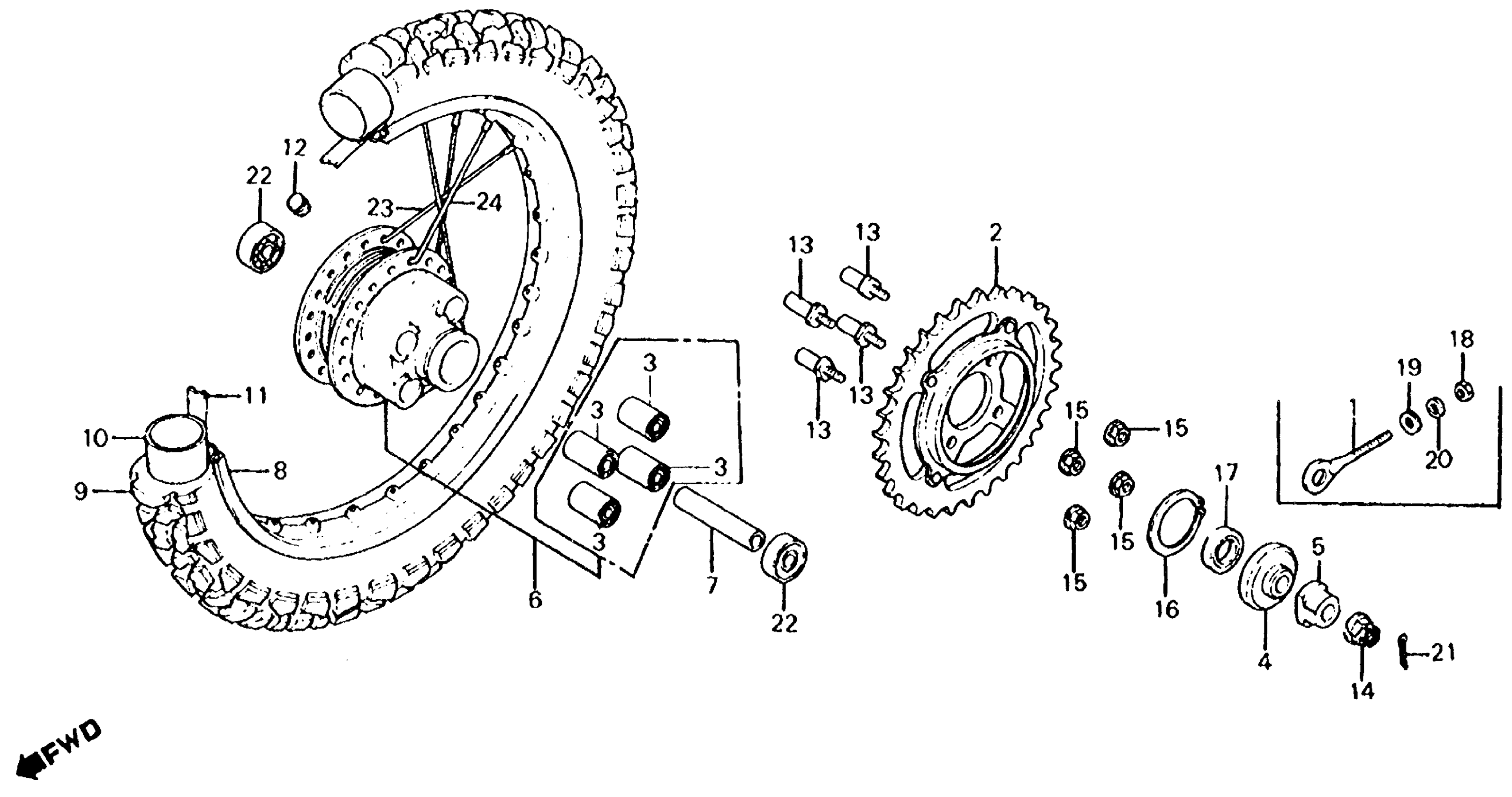

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 REAR WHEEL Diagram

#

Description
Price

2

SPROCKET, FINAL DRIVEN (56T)

41200-437-670

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

4

COLLAR, RR. WHEEL SIDE

42304-437-000

Unavailable

5

COLLAR, RR. AXLE

42304-446-770

Unavailable

6

HUB, RR. WHEEL *NH105* (MAT BLACK)

42610-437-000ZA

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-437-000

Unavailable

8

RIM, RR. WHEEL

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-437-003.

42701-314-405

Unavailable

9

TIRE, RR. (4.10-18) (BS)

42711-KG1-671

Unavailable

9

TIRE, RR. (4.10-18) (BS) (NOT AVAILABLE) This part replaces 42711-437-671.

42711-KG1-671

Unavailable

9

TIRE, RR. (4.10-18) (YOKOHAMA) (NOT AVAILABLE)

42711-437-672

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

10

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-003.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-389-009.

42713-304-003

$6.69

12

CAP, RIM HOLE

42717-310-000

Unavailable

13

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-391-000.

90128-KE2-940

$6.84

14

NUT, AXLE (14MM)

90305-401-680

$11.65

15

NUT, FLANGE (10MM)

90308-382-670

$4.07

16

CIRCLIP (58MM)

90664-216-000

$5.55

17

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

17

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

17

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

22

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

22

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

23

SPOKE BS (8X170.0)

97506-69180-Q0

Unavailable

24

SPOKE BS (8X169.5)

97716-69179-Q0

$5.04
