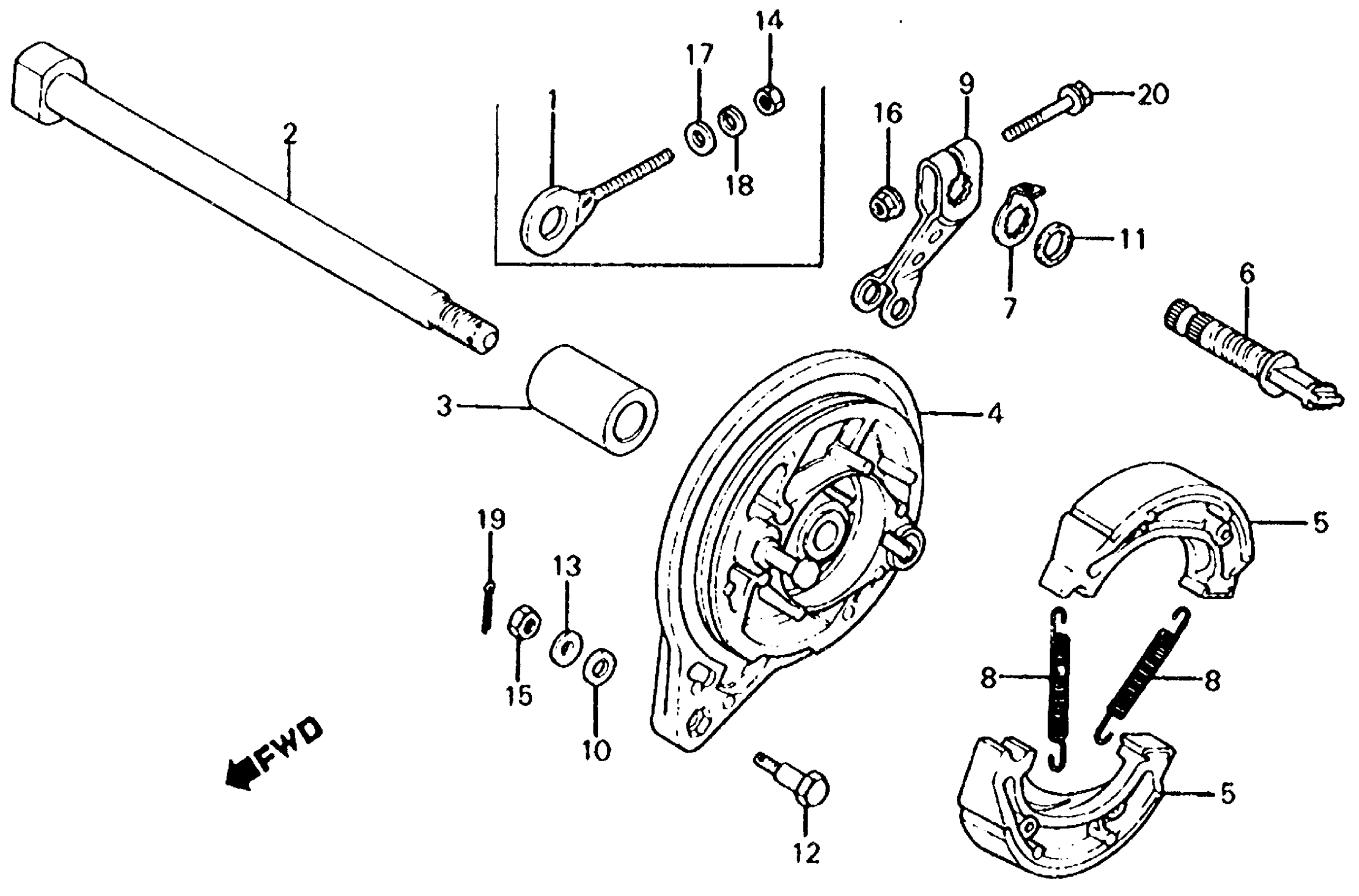

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

AXLE, RR. WHEEL

42301-437-710

Unavailable

COLLAR, RR. BRAKE PANEL SIDE

42313-437-000

Unavailable

PANEL, RR. BRAKE *NH105* (MAT BLACK)

43100-382-790ZA

Unavailable

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

CAM, RR. BRAKE

43141-400-010

$23.52

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-121-710

Unavailable

SPRING, BRAKE SHOE

43151-110-000

$2.92

ARM, RR. BRAKE

43410-437-000

Unavailable

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

BOLT A, BRAKE STOPPER

92811-10000

$2.92

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
