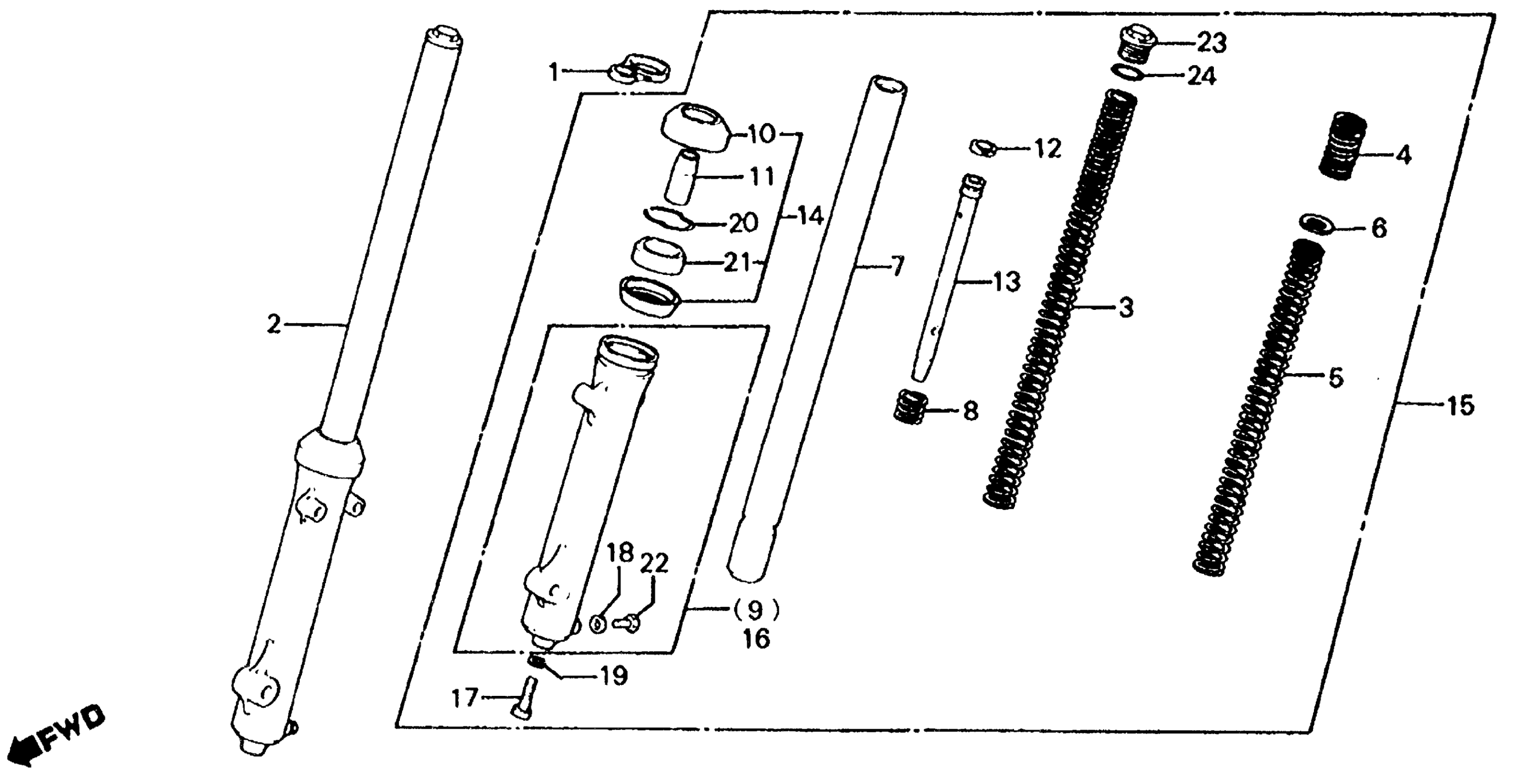

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-399-620

Unavailable

2

SHOCK ABSORBER, R. FR. (SHOWA) (NOT AVAILABLE)

51400-437-711

Unavailable

4

SPRING A, FR. FORK (NOT AVAILABLE)

51401-437-711

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-437-711

Unavailable

6

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

7

PIPE, FR. FORK

51410-437-003

Unavailable

8

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

9

CASE, R. (LOWER) (SHOWA)

51421-437-013

Unavailable

10

DUST SEAL (SHOWA)

91254-437-003

$15.16

11

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

11

PIECE, OIL LOCKING

51432-447-731

$27.42

12

RING, PISTON

51437-373-781

Unavailable

13

PIPE, SEAT

51440-437-003

Unavailable

14

SEAL SET, FR. FORK

51490-437-305

Unavailable

15

SHOCK ABSORBER ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-437-711

Unavailable

16

CASE, L. (LOWER) (SHOWA)

51521-437-013

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

17

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

18

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

19

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

20

RING, OIL SEAL STOP

90601-354-000

$5.13

21

OIL SEAL (31X43X10) OIL SEAL (31X43X10.3) (SHOWA)

91255-GAA-003

$20.00

21

OIL SEAL (31X43X10) This part replaces 91255-446-013.

91255-GAA-003

$20.00

22

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

23

BOLT, FR. FORK (NOT AVAILABLE)

90127-437-770

Unavailable

24

O-RING (23X2.8)

94608-50000

$1.49
