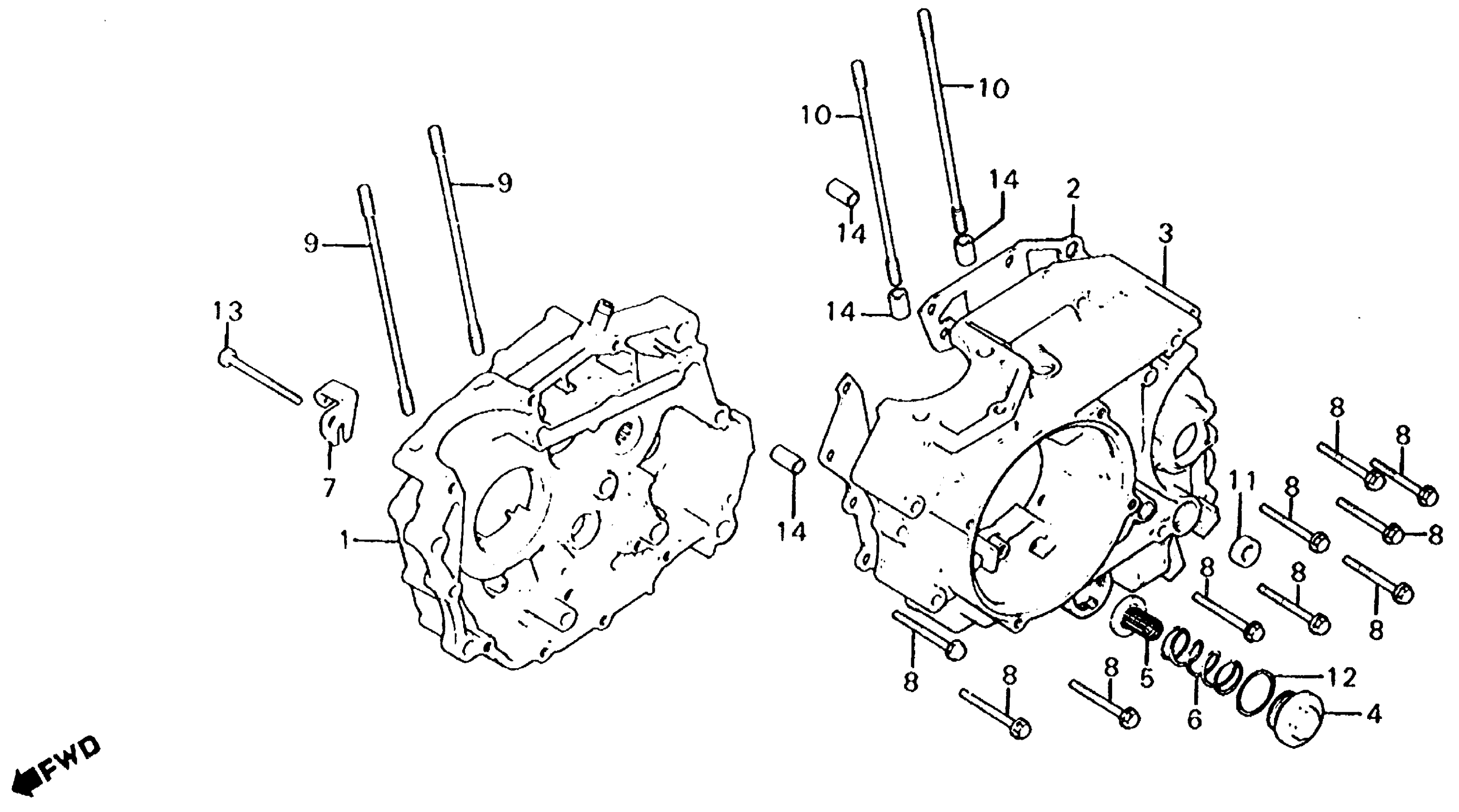

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KC6-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-KC6-960.

11100-KC6-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-437-040.

11100-KC6-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-437-050.

11100-KC6-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-437-060.

11100-KC6-405

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KT0-710.

11191-KT0-711

$21.56

2

GASKET, CRANKCASE This part replaces 11191-437-020.

11191-KT0-711

$21.56

2

GASKET, CRANKCASE This part replaces 11191-437-306.

11191-KT0-711

$21.56

3

CRANKCASE, L.

11200-KC6-960

Unavailable

3

CRANKCASE, L. This part replaces 11200-437-010.

11200-KC6-960

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$6.43

5

SCREEN, OIL FILTER

15421-107-000

$6.31

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

HOLDER, CLUTCH CABLE

22838-KY0-890

Unavailable

7

HOLDER, CLUTCH CABLE This part replaces 22838-397-630.

22838-KY0-890

Unavailable

7

HOLDER, CLUTCH CABLE This part replaces 22838-437-000.

22838-KY0-890

Unavailable

8

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

8

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

9

BOLT A, CYLINDER STUD

90031-107-010

$9.57

10

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90032-107-010

Unavailable

11

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

12

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

13

BOLT, HEX. (6X60) This part replaces 92000-06060.

92101-06060-0A

$1.49

13

BOLT, HEX. (6X60) This part replaces 92000-06060-0A.

92101-06060-0A

$1.49

13

BOLT, HEX. (6X60)

92101-06060-0A

$1.49

14

PIN A, DOWEL (10X14)

94301-10140

$2.28
