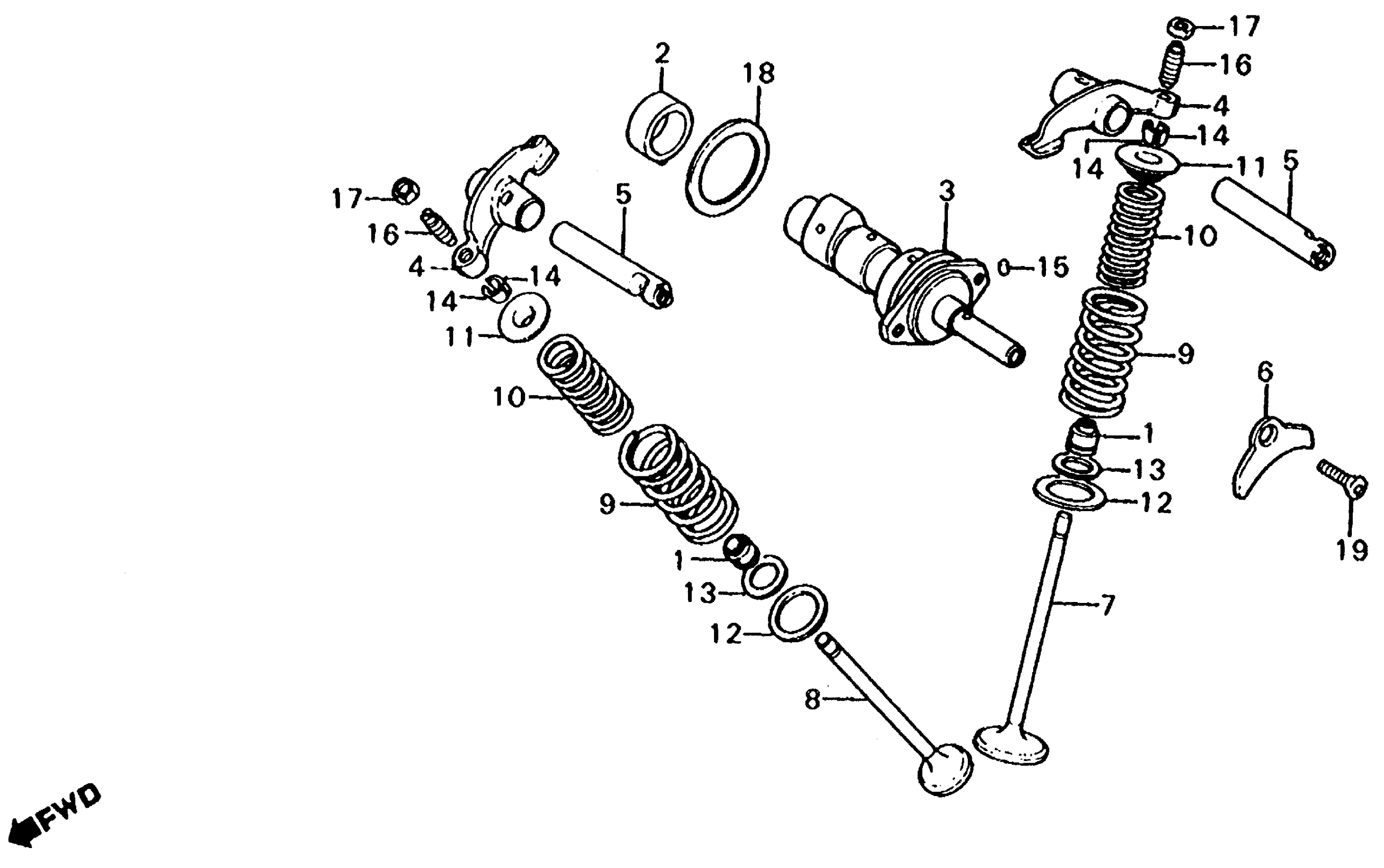

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$10.44

SEAL, VALVE STEM (ARAI)

12208-413-003

$10.44

BUSH, CAMSHAFT

12260-437-000

$36.21

CAMSHAFT This part replaces 14101-437-000.

14101-437-010

Unavailable

ARM, VALVE ROCKER

14431-383-000

$60.50

SHAFT, VALVE ROCKER ARM

14451-437-000

$29.54

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

VALVE, IN.

14711-437-000

$56.47

VALVE, EX.

14721-437-000

$62.20

SPRING, VALVE (OUTER) (CHUO HATSUJO)

14751-383-003

$14.56

SPRING, VALVE (OUTER) (NIPPON)

14751-383-005

$13.61

SPRING, VALVE (INNER) (NIPPON) This part replaces 14761-383-003.

14761-383-005

$7.75

SPRING, VALVE (INNER) (NIPPON)

14761-383-005

$7.75

RETAINER, VALVE SPRING

14771-107-020

$7.63

SEAT, VALVE SPRING (OUTER)

14775-107-000

$3.90

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.03

COTTER, VALVE (SANKO)

14781-107-003

$2.47

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.47

SCREW, TAPPET ADJ.

90012-426-000

$8.90

NUT, TAPPET ADJ.

90206-250-000

$2.95

WASHER, THRUST (34MM)

90451-383-000

$8.21

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$0.97

SCREW, FLAT (6X20)

93600-06020-0A

$0.97
