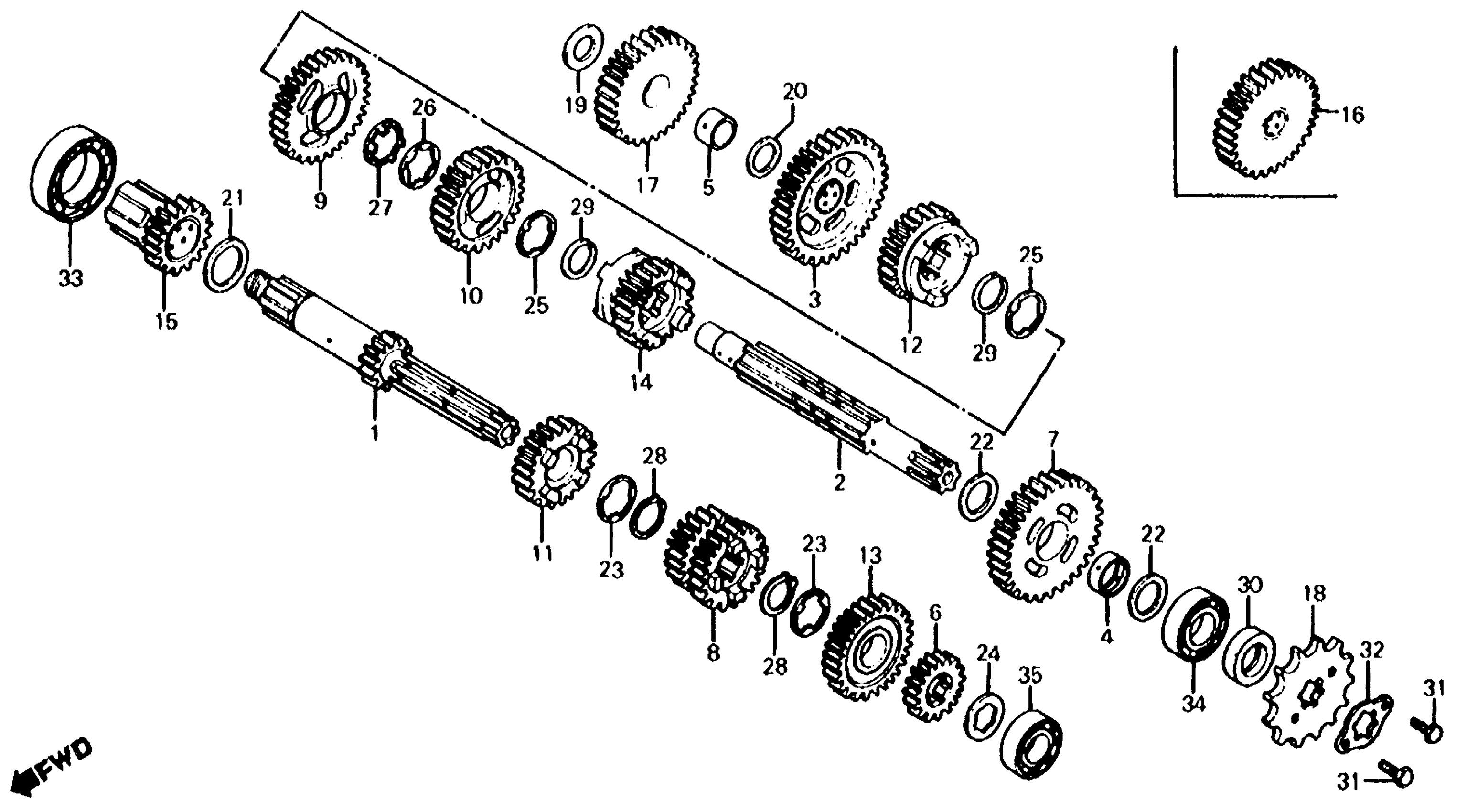

Honda XL125SA (82) MOTORCYCLE, JPN, VIN# JH2JD020-CK300006 TO JH2JD020-CK304770 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T) (NOT AVAILABLE)

23211-437-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-437-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (37T)

23420-437-000

Unavailable

4

BUSH (20MM)

23431-437-000

$25.64

5

BUSHING

23431-439-000

Unavailable

6

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23441-437-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (33T)

23451-437-010

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (23T,20T) This part replaces 23461-437-010.

23461-437-020

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (23T,20T)

23461-437-020

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE) This part replaces 23471-437-000.

235A1-437-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

235A1-437-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23491-437-010

Unavailable

11

GEAR, MAINSHAFT FIFTH (26T)

23501-437-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (24T) (NOT AVAILABLE)

23511-437-010

Unavailable

13

GEAR, MAINSHAFT TOP (28T)

23512-437-000

Unavailable

14

GEAR, COUNTERSHAFT TOP (22T)

23513-437-020

$97.29

15

GEAR, STARTER (19T)

23520-437-000

Unavailable

17

GEAR ONLY, IDLE STARTER (28T)

23531-437-310

Unavailable

18

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$35.72

18

SPROCKET, DRIVE (14T) This part replaces 23801-437-000.

23801-KF9-505

$35.72

19

WASHER, THRUST (15MM)

90451-365-000

$2.85

20

WASHER, THRUST (16.5MM)

90452-437-000

$3.16

21

WASHER A, THRUST (20MM)

90453-107-000

$2.04

22

WASHER, THRUST (20MM)

90454-107-000

$1.59

23

WASHER, SPLINE (17MM)

90461-115-000

$2.42

24

WASHER, SPECIAL SPLINE (17MM) (NOT AVAILABLE)

90462-437-000

Unavailable

25

WASHER, SPLINE (22MM)

90463-437-000

$3.25

26

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.43

27

WASHER, LOCK

90465-360-000

$6.13

28

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

29

CIRCLIP (OUTER) (22MM)

90601-437-000

$2.91

30

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.15

30

OIL SEAL (20X34X7)

91201-030-015

Unavailable

30

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.15

30

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.15

30

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.15

31

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

31

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

32

PLATE B, FIXING

95014-92100

$0.93

33

BEARING, RADIAL BALL (6006)

96100-60060-00

$11.79

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

35

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$9.89
