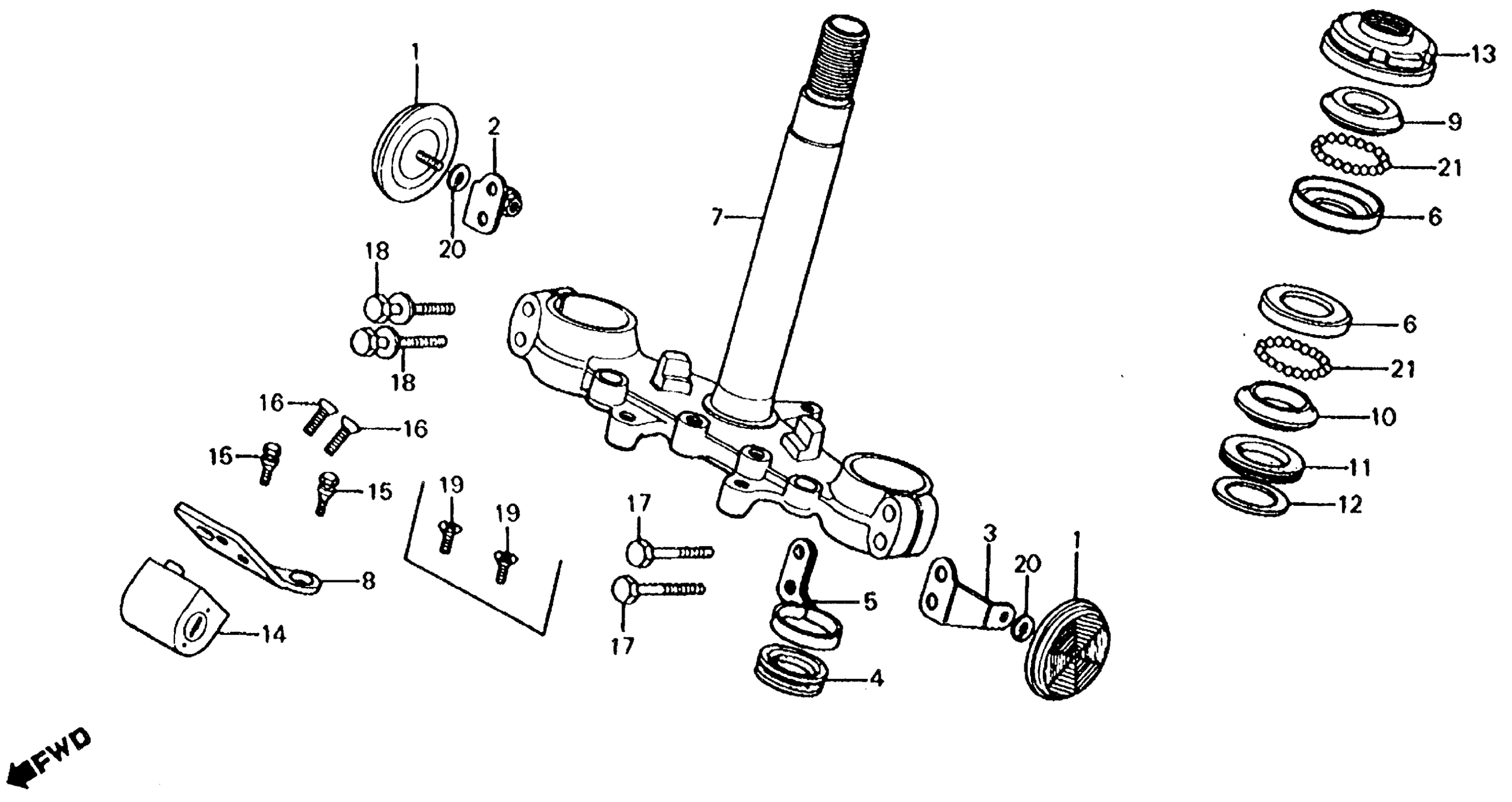

Honda XL125SA (82) MOTORCYCLE, JPN, VIN# JH2JD020-CK300006 TO JH2JD020-CK304770 STEERING STEM Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$32.91

1

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$32.91

2

STAY, R. FR. REFLEX (NOT AVAILABLE)

33750-436-670

Unavailable

3

STAY, L. FR. REFLEX

33751-436-670

Unavailable

4

GUIDE, CABLE (INNER)

45466-329-000

$2.82

5

GUIDE, BRAKE CABLE

45468-427-770

Unavailable

6

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.38

6

RACE, STEERING TOP BALL

50301-041-010

$11.38

7

STEM, STEERING *NH1* This part replaces 53200-437-000ZA.

53200-437-000ZC

Unavailable

8

HOLDER, HANDLE LOCK

53203-437-000

Unavailable

9

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$10.18

9

RACE, STEERING CONE (UPPER)

53211-028-010

$10.18

10

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.85

10

RACE, STEERING CONE (LOWER)

53212-030-010

$9.85

11

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.40

12

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

13

THREAD, STEERING HEAD TOP

53220-074-000

$14.54

14

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$44.25

14

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$44.25

15

BOLT B, SPECIAL (6MM) This part replaces 90106-428-000.

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.66

17

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.28

17

BOLT, FLANGE (8X32)

95701-08032-00

$1.28

18

BOLT-WASHER (8X32) (NOT AVAILABLE)

93481-08032-00

Unavailable

20

WASHER, SPRING (6MM)

94111-06000

$0.87

21

BALL, STEEL (#6) (3/16)

96211-06000

Unavailable
