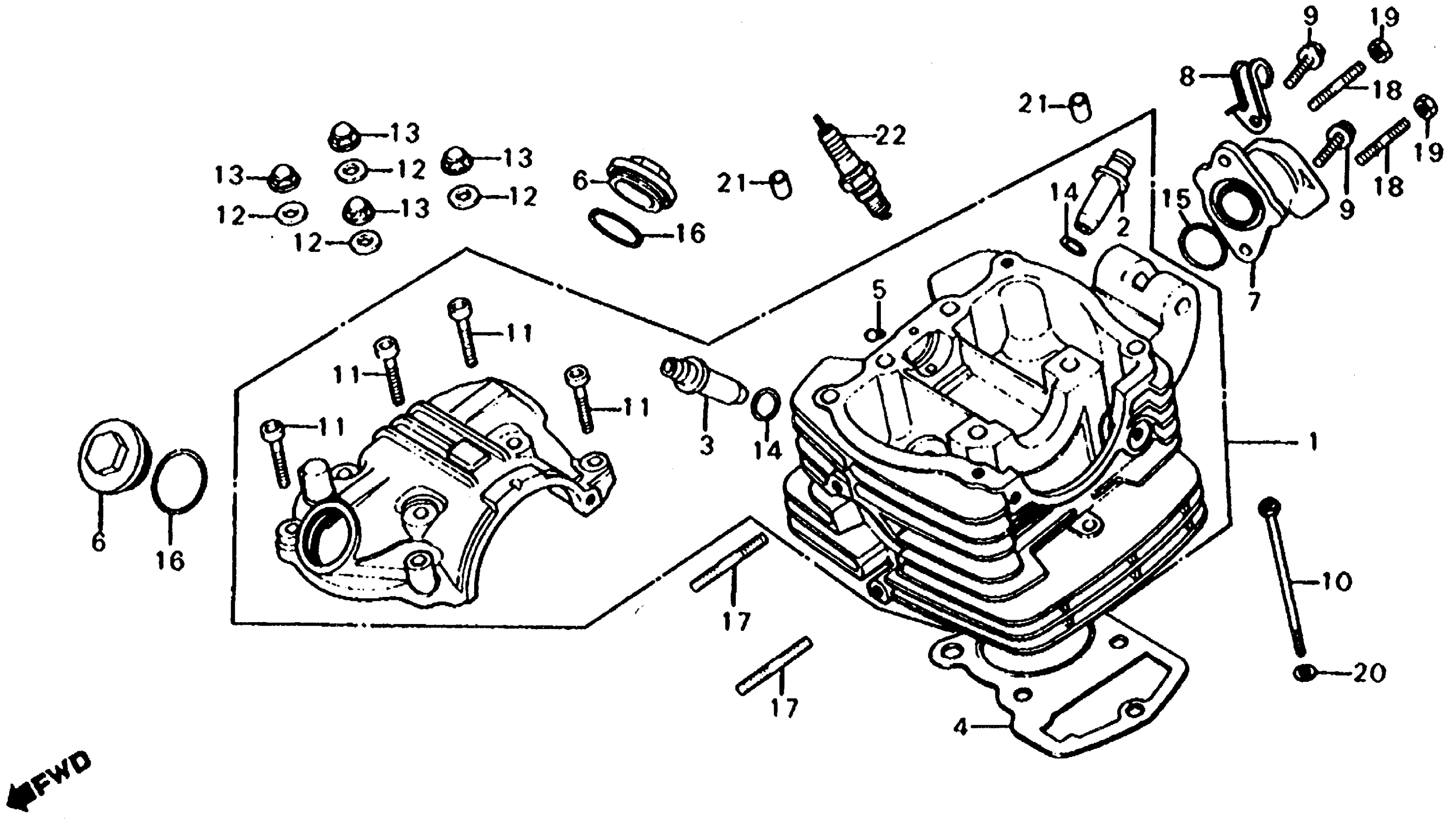

Honda XL125SA (82) MOTORCYCLE, JPN, VIN# JH2JD020-CK300006 TO JH2JD020-CK304770 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. | Use up to Engine SN 5306414 This part replaces 12000-437-000.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-437-010.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY. | Use up to Engine SN 5306414 This part replaces 12000-437-010.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-437-020.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY. | Use up to Engine SN 5306414 This part replaces 12000-437-020.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY.

12000-437-305

Unavailable

1

CYLINDER HEAD ASSY. | Use up to Engine SN 5306414

12000-437-305

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$26.84

4

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

5

RUBBER, OIL SEAL

12271-383-000

$2.92

6

CAP, VALVE ADJ.

12361-383-000

$6.43

7

INSULATOR, CARBURETOR | Use from Engine SN 5306415

16210-437-000

$47.33

8

CLIP, COIL CABLE

32921-437-000

Unavailable

9

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

9

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

10

BOLT, HS (6MM)

90081-107-000

Unavailable

11

BOLT, SOCKET (6MM)

90081-383-000

$5.66

12

WASHER, SEALING (8MM)

90442-028-000

$1.77

13

NUT, CAP (8MM)

90443-107-000

$2.89

14

O-RING (10X1.6)

91301-200-000

$3.01

15

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

15

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

15

O-RING (33.5X3.0)

91304-HB3-003

$7.70

16

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

17

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

$1.51

17

BOLT, STUD (6X35) This part replaces 92700-06035-35.

92900-06020-3E

$1.51

17

BOLT, STUD (6X35)

92900-06020-3E

$1.51

18

BOLT, STUD (6X28) This part replaces 92712-06028.

92712-06028-0B

$1.49

18

BOLT, STUD (6X28)

92712-06028-0B

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

PIN A, DOWEL (8X14)

94301-08140

$2.25

22

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

22

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

22

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.44

22

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

22

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

22

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.50

22

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

22

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

22

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
