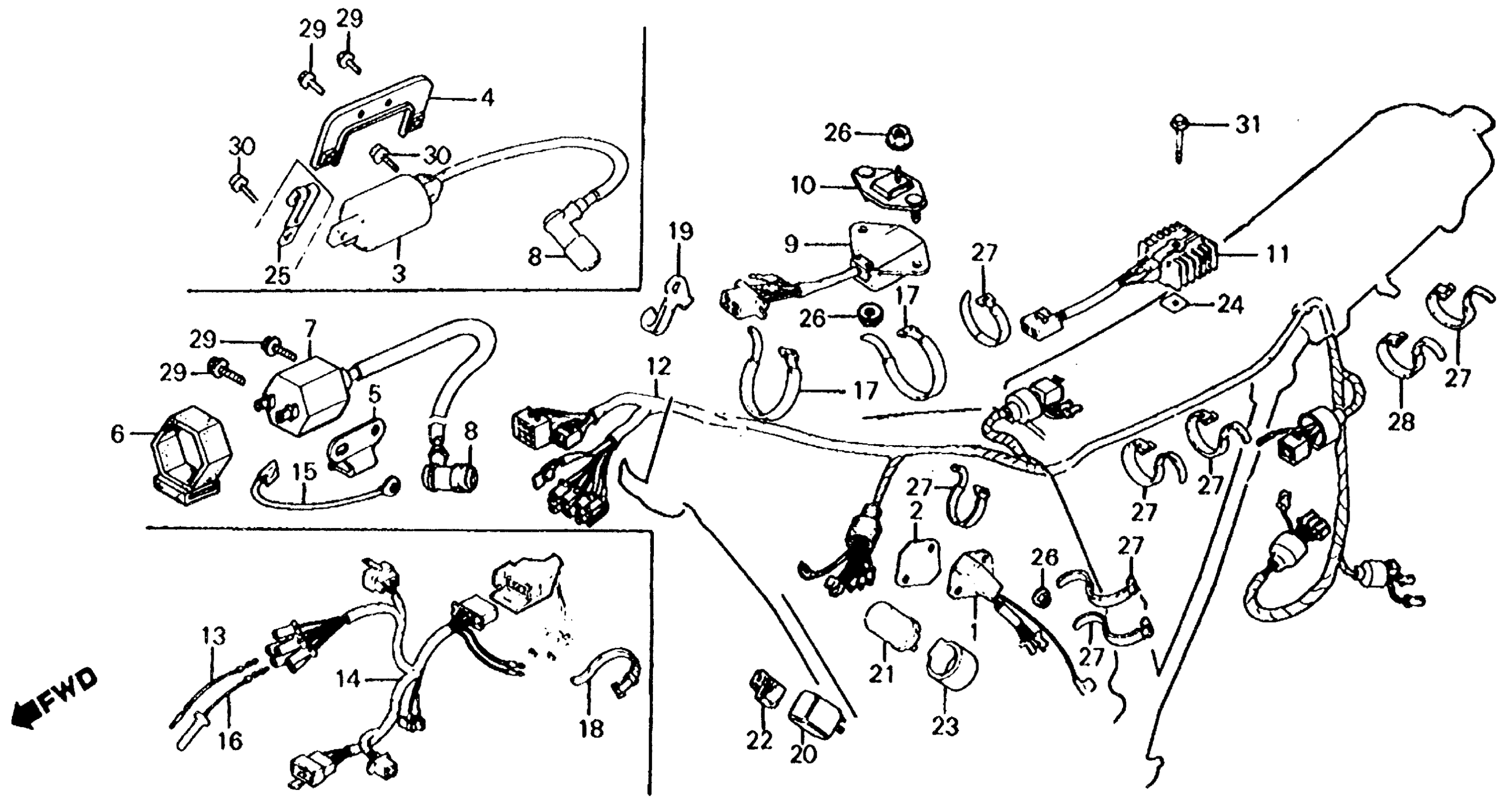

Honda XL125SA (80) MOTORCYCLE, JPN, VIN# JD02-5000003 TO JD02-5006405 WIRE HARNESS + IGNITION COIL + C.D.I. UNIT Diagram

#

Description
Price

1

MODULE, IGN CONT | Use up to Frame SN 5002498 This part replaces 30400-437-003.

30400-437-023

Unavailable

1

MODULE, IGN CONT | Use up to Frame SN 5002498 This part replaces 30400-437-013.

30400-437-023

Unavailable

1

MODULE, IGN CONT | Use up to Frame SN 5002498 This part replaces 30400-446-000.

30400-437-023

Unavailable

2

PLATE, IGNITION CONTROL MODULE SETTING (NOT AVAILABLE)

30401-446-000

Unavailable

3

SET,IGN COIL This part replaces 30500-437-000.

30500-KB1-305

Unavailable

3

SET,IGN COIL This part replaces 30500-437-010.

30500-KB1-305

Unavailable

4

STAY, IGNITION COIL

30501-437-000

Unavailable

8

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

8

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

11

RECTIFIER ASSY.

31700-385-000

Unavailable

12

WIRE HARNESS | Use up to Frame SN 5001678 This part replaces 32100-437-770.

32100-437-772

Unavailable

12

WIRE HARNESS This part replaces 32100-437-771.

32100-437-772

Unavailable

17

BAND, CABLE

32161-399-000

Unavailable

21

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

21

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

23

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

24

NUT (6MM)

90356-437-000

Unavailable

26

NUT, FLANGE (6MM)

94050-06080

$1.49

27

BAND B1, CABLE

32161-404-000

$2.23

27

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

28

BAND A2, CABLE

95014-61200

$2.33

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

29

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

30

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

31

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

31

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
