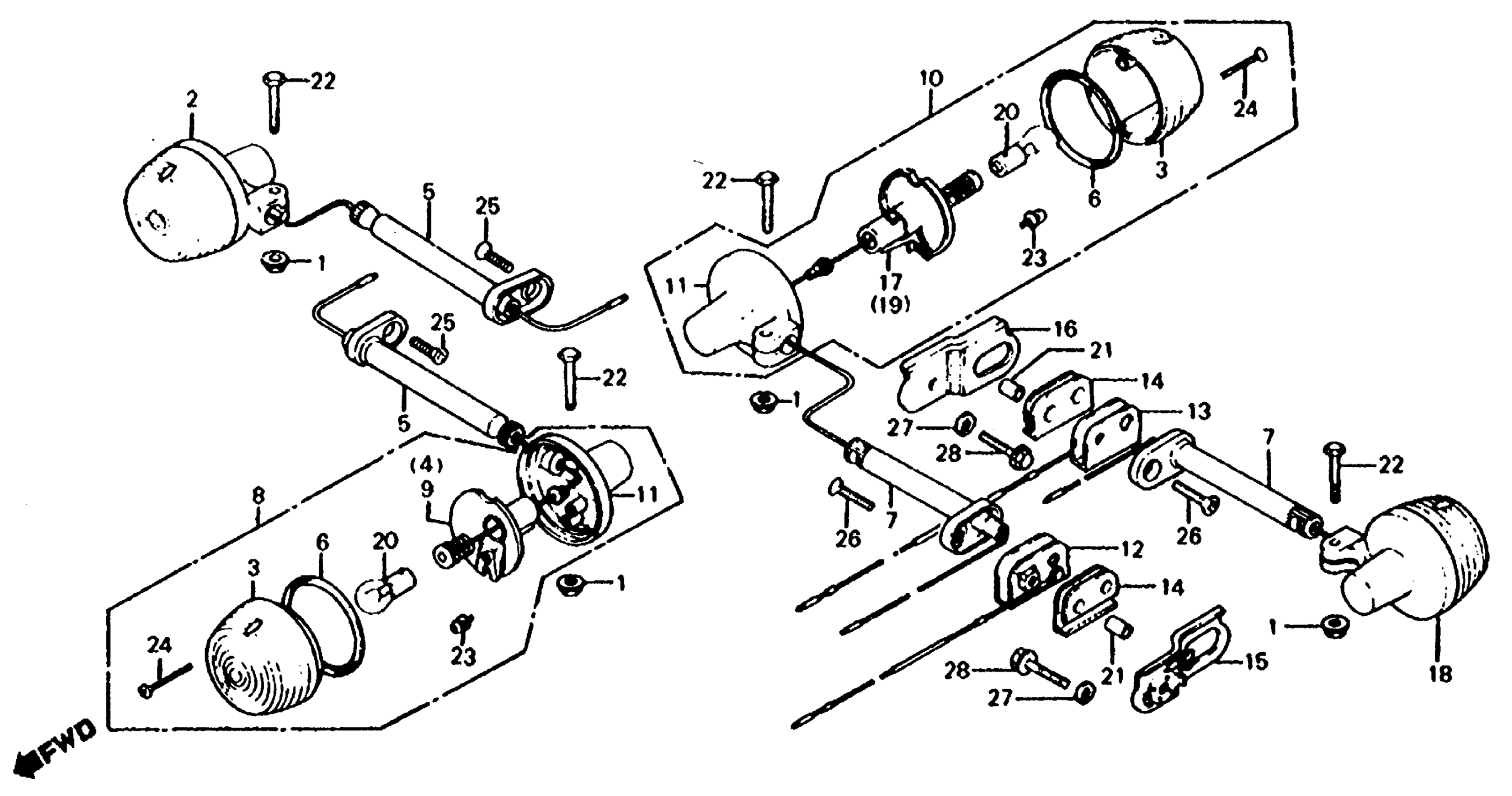

Honda XL125SA (80) MOTORCYCLE, JPN, VIN# JD02-5000003 TO JD02-5006405 TURN SIGNAL 80 Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-329-690.

94050-06070

$1.32

1

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.32

1

NUT, FLANGE (6MM)

94050-06070

$1.32

2

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-437-770

Unavailable

3

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.02

3

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.02

4

SOCKET, R. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33410-056-671

Unavailable

5

STAY, FR. TURN SIGNAL (NOT AVAILABLE)

33441-399-600

Unavailable

6

GASKET, TURN SIGNAL LENS

33443-268-671

$1.94

7

STAY, RR. TURN SIGNAL

33444-437-770

Unavailable

8

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-437-770

Unavailable

9

SOCKET, L. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33460-056-671

Unavailable

10

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-437-770

Unavailable

11

BASE, TURN SIGNAL

33601-447-870

Unavailable

12

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-436-670

Unavailable

13

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33605-436-670

Unavailable

14

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.64

15

STAY, R. RR. TURN SIGNAL (NOT AVAILABLE)

33606-436-000

Unavailable

16

STAY, L. RR. TURN SIGNAL (NOT AVAILABLE)

33607-436-000

Unavailable

17

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33610-436-670

Unavailable

18

TURN SIGNAL ASSY., L. RR.

33650-437-770

Unavailable

19

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33660-436-670

Unavailable

20

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.04

21

COLLAR A, RR. FENDER

80108-061-010

$3.82

22

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.)

93000-06028-0G

Unavailable

23

SCREW, PAN (5X8)

93500-05008-0H

$0.83

24

SCREW, OVAL (3X25)

93700-03025-0B

$1.16

25

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.04

25

SCREW, OVAL (6X20)

93700-06020-0A

$1.04

26

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.22

26

SCREW, OVAL (6X25)

93700-06025-0A

$1.22

26

SCREW, OVAL (6X25) | Use from Frame SN 5004229 This part replaces 93700-06025-1A.

93700-06025-0A

$1.22

27

WASHER, SPRING (6MM)

94111-06700

$0.97

28

BOLT, FLANGE (6X25) This part replaces 95800-06025-07.

95801-06025-07

$1.64

28

BOLT, FLANGE (6X25)

95801-06025-07

$1.64
