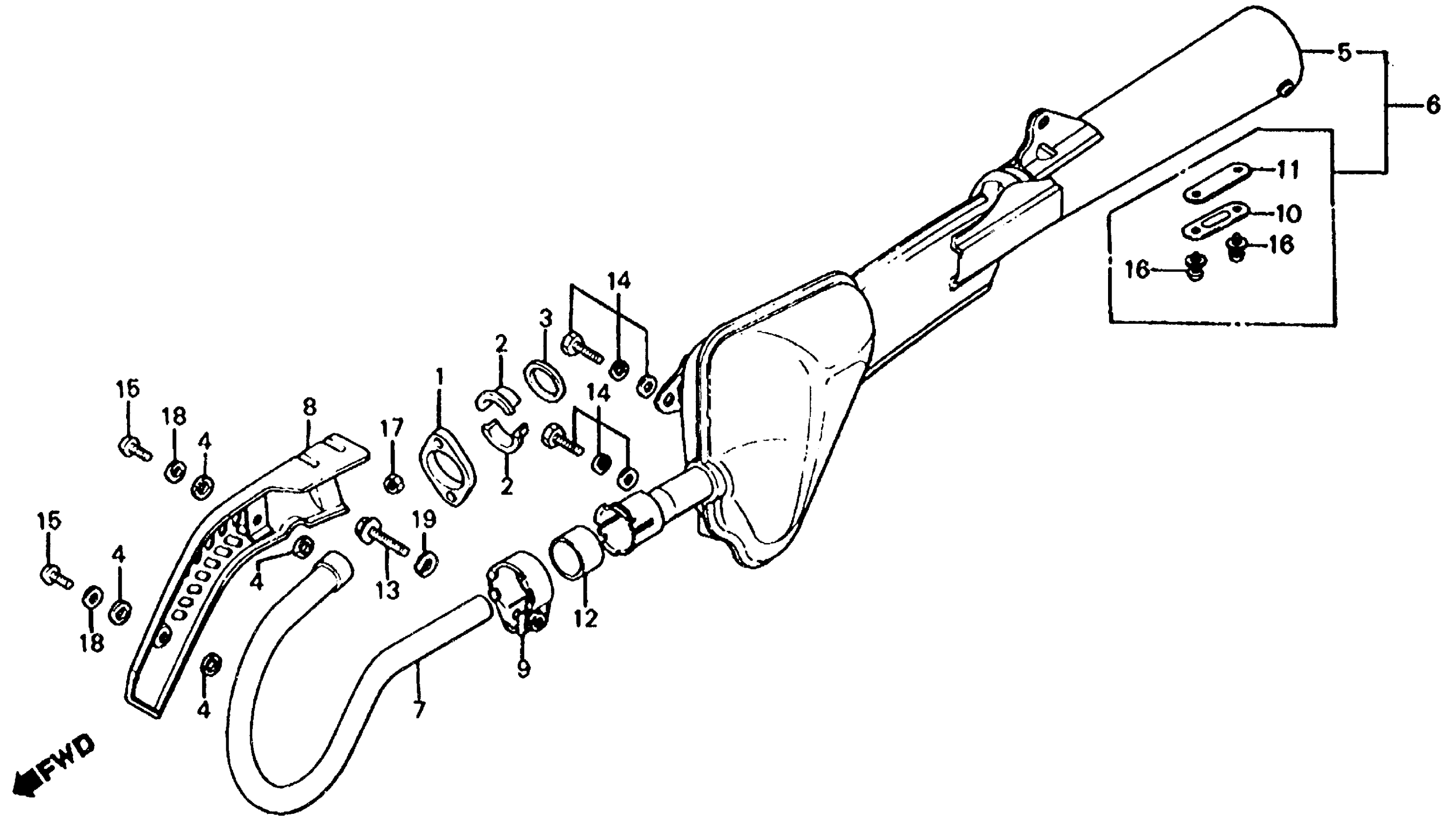

Honda XL125SA (80) MOTORCYCLE, JPN, VIN# JD02-5000003 TO JD02-5006405 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-355-000

$29.07

2

COLLAR, EX. PIPE JOINT

18233-437-000

$8.41

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

4

GASKET, PROTECTOR

18292-MM9-740

$2.81

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

6

MUFFLER ASSY. (NOT AVAILABLE) This part replaces 18300-437-771.

18300-427-777

Unavailable

6

MUFFLER ASSY. (NOT AVAILABLE) This part replaces 18300-437-772.

18300-427-777

Unavailable

6

MUFFLER ASSY. (NOT AVAILABLE) This part replaces 18300-437-774.

18300-427-777

Unavailable

7

PIPE, EX. This part replaces 18320-437-003.

18320-437-023

Unavailable

7

PIPE, EX. This part replaces 18320-437-013.

18320-437-023

Unavailable

7

PIPE, EX.

18320-437-023

Unavailable

8

PROTECTOR, EX. PIPE This part replaces 18321-437-000.

18321-437-010

Unavailable

8

PROTECTOR, EX. PIPE

18321-437-010

Unavailable

9

BAND, MUFFLER

18371-355-710

Unavailable

10

LID, MUFFLER This part replaces 18373-446-000.

18373-446-010

Unavailable

10

LID, MUFFLER

18373-446-010

Unavailable

11

GASKET, MUFFLER

18374-KR8-900

Unavailable

11

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

12

GASKET, MUFFLER

18391-KJ3-700

$26.61

12

GASKET, MUFFLER This part replaces 18391-KR9-000.

18391-KJ3-700

$26.61

12

GASKET, MUFFLER This part replaces 18391-437-000.

18391-KJ3-700

$26.61

13

BOLT, SOCKET

90116-391-670

Unavailable

14

BOLT-WASHER (8X16)

93413-08016-08

$1.22

14

BOLT-WASHER (8X16) This part replaces 93483-08016-08.

93413-08016-08

$1.22

15

SCREW, PAN (6X10)

93500-06010-0G

$0.96

15

SCREW, PAN (6X10) This part replaces 93500-06010-07.

93500-06010-0G

$0.96

16

SCREW-WASHER (6X12)

93891-06012-07

$0.88

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM)

94001-06200-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

18

WASHER, PLAIN (6MM)

94101-06700

$0.86

19

WASHER, SPRING (8MM)

94111-08000

$0.90
