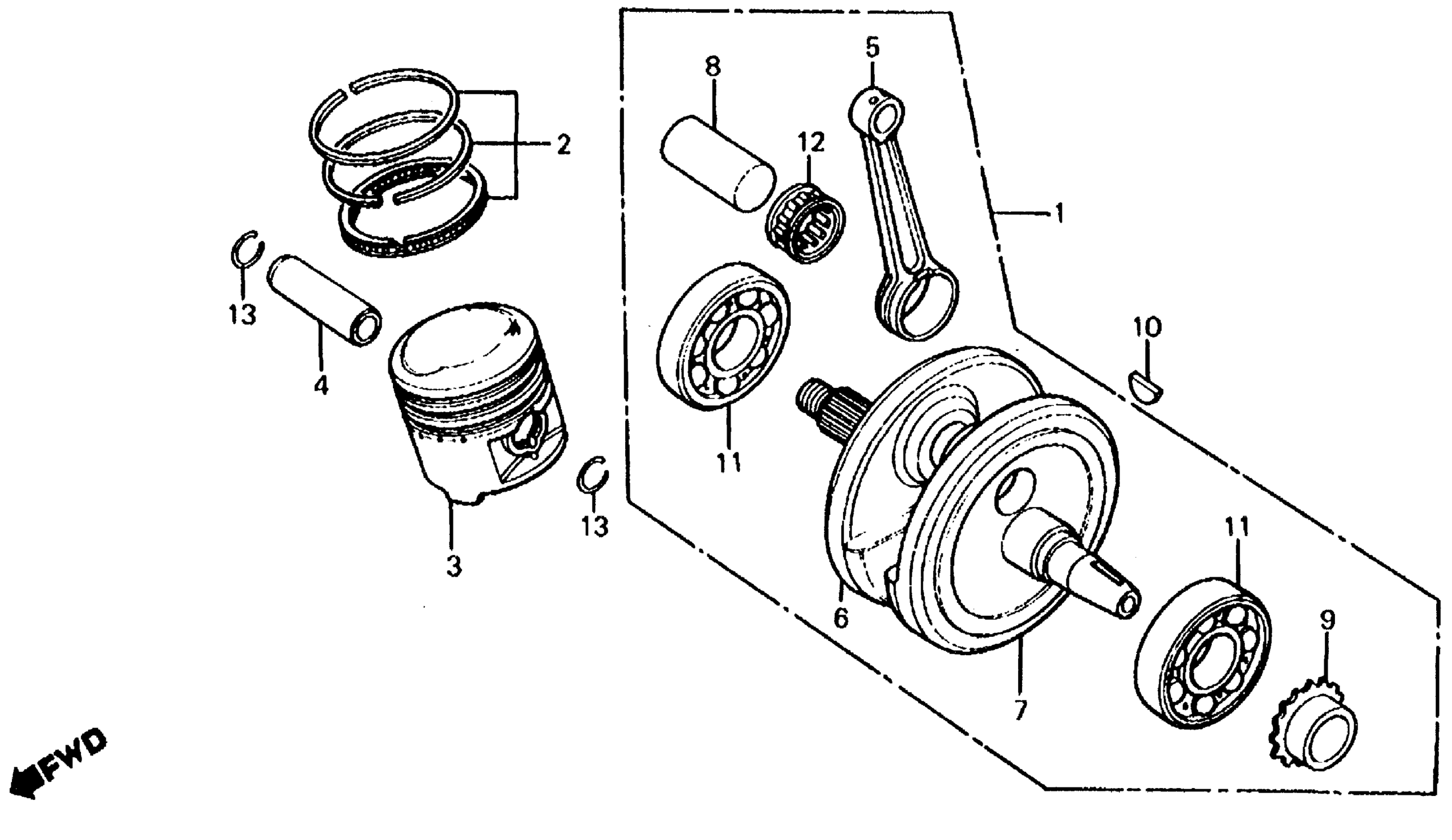

Honda XL125SA (80) MOTORCYCLE, JPN, VIN# JD02-5000003 TO JD02-5006405 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-437-000.

13000-437-305

Unavailable

1

CRANKSHAFT This part replaces 13000-437-010.

13000-437-305

Unavailable

1

CRANKSHAFT This part replaces 13000-437-020.

13000-437-305

Unavailable

1

CRANKSHAFT This part replaces 13000-437-030.

13000-437-305

Unavailable

1

CRANKSHAFT

13000-437-305

Unavailable

2

RING SET, PISTON (STD)

13011-437-000

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-437-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-437-000

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13041-437-000

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-437-000

Unavailable

3

PISTON (STD)

13101-437-003

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-437-000

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-437-000

Unavailable

3

PISTON (0.75) | (Optional).

13104-437-000

Unavailable

3

PISTON (1.00) | (Optional).

13105-437-000

Unavailable

4

PIN, PISTON

13111-286-000

$26.03

4

PIN, PISTON

13111-440-000

$24.55

5

ROD, CONNECTING

13202-437-300

Unavailable

6

CRANKSHAFT, R.

13311-383-300

Unavailable

7

CRANKSHAFT, L. (NOT AVAILABLE)

13321-355-700

Unavailable

8

PIN, CRANK

13381-HF1-670

Unavailable

8

PIN, CRANK This part replaces 13381-383-300.

13381-HF1-670

Unavailable

9

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

9

SPROCKET, TIMING (16T)

14311-958-000

$41.06

10

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-004.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-008.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-014.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING A, CONNECTING ROD (RED) (TOYO) | Use up to Engine SN 5004259 This part replaces 91002-437-004.

91002-440-003

Unavailable

12

BEARING C, CONNECTING ROD (WHITE) (TOYO) | Use up to Engine SN 5004260 This part replaces 91004-437-004.

91004-440-003

Unavailable

12

BEARING A, CONNECTING ROD (RED) (TOYO)

91002-440-003

Unavailable

12

BEARING C, CONNECTING ROD (WHITE) (TOYO)

91004-440-003

Unavailable

12

BEARING B, CONNECTING ROD (BLUE) (TOYO) This part replaces 91003-437-004.

91003-440-003

Unavailable

12

BEARING B, CONNECTING ROD (BLUE) (TOYO)

91003-440-003

Unavailable

13

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
