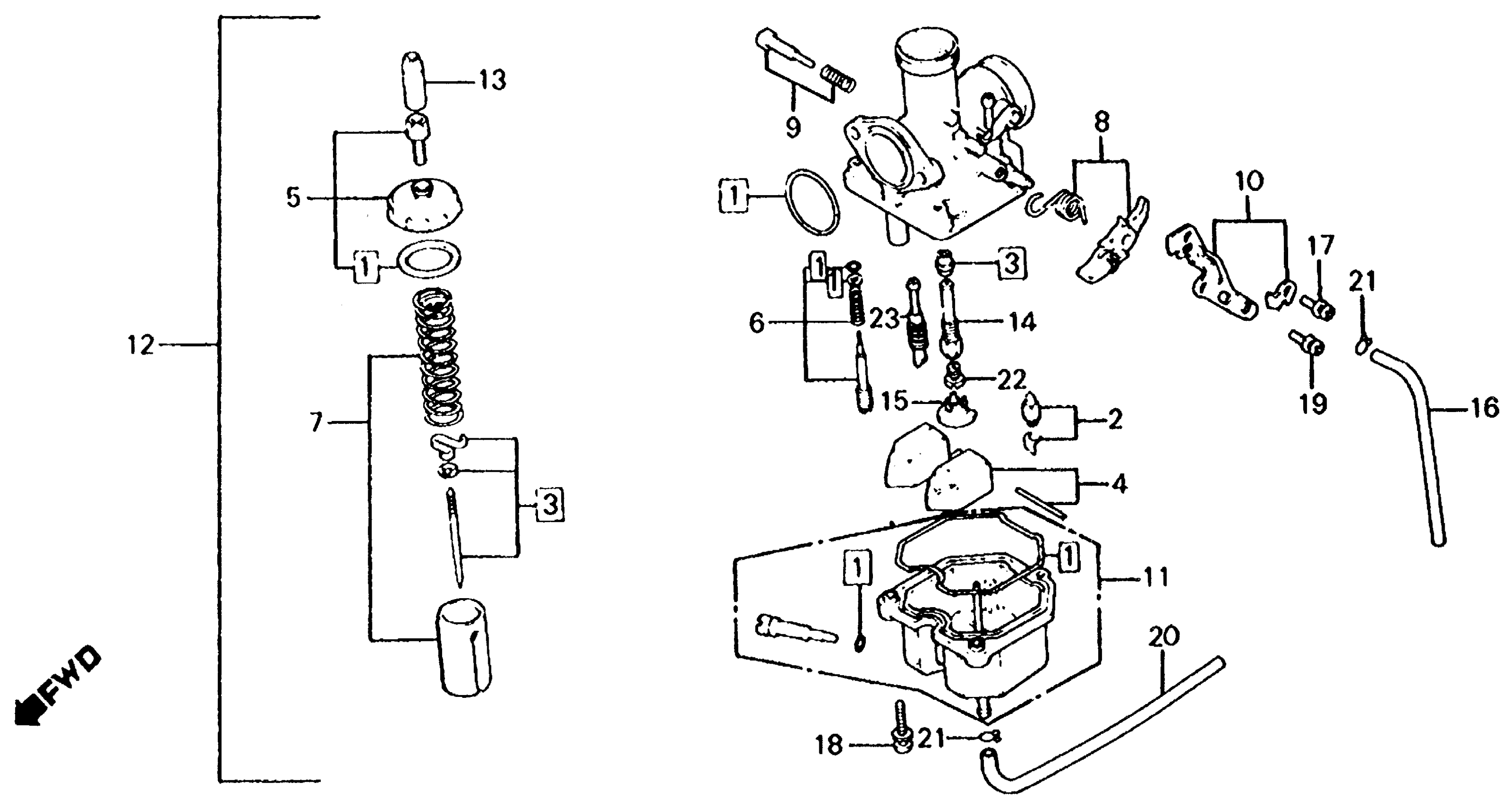

Honda XL125SA (80) MOTORCYCLE, JPN, VIN# JD02-5000003 TO JD02-5006405 CARBURETOR Diagram

GASKET SET

16010-HB5-305

$27.44

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

NEEDLE SET, JET (NOT AVAILABLE)

16012-437-771

Unavailable

FLOAT SET

16013-405-004

$56.20

TOP SET | Use up to Engine SN PD13A A This part replaces 16014-324-680.

16014-324-681

Unavailable

TOP SET | Use up to Engine SN PD13A A

16014-324-681

Unavailable

TOP SET | Use up to Engine SN PD13A A This part replaces 16014-437-771.

16014-324-681

Unavailable

SCREW SET A

16016-KC2-970

$25.35

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-440-004

Unavailable

LEVER SET, CHOKE

16025-427-004

$29.95

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

PLATE SET, STAY

16035-427-004

Unavailable

CHAMBER SET, FLOAT This part replaces 16045-399-004.

16045-399-014

Unavailable

CHAMBER SET, FLOAT

16045-399-014

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 5005016 This part replaces 16100-437-771.

16100-437-772

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

16100-437-772

Unavailable

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

CAP, CABLE SEALING

16118-166-004

$8.08

HOLDER, NEEDLE JET

16165-437-771

Unavailable

HOLDER, JET

16168-382-014

$9.81

PIPE, AIR VENT

16199-427-004

Unavailable

SCREW-WASHER (4X10)

93892-04010-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (5X12)

93892-05012-08

$1.49

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

CLIP, TUBE (B6.5)

95002-02650

$1.49

JET, MAIN (#100)

99101-GHB-1000

$6.75

JET, MAIN (#100) This part replaces 99101-393-1000.

99101-GHB-1000

$6.75

JET SET, MAIN (#95) (NOT AVAILABLE) | (Optional).

16110-437-770

Unavailable
