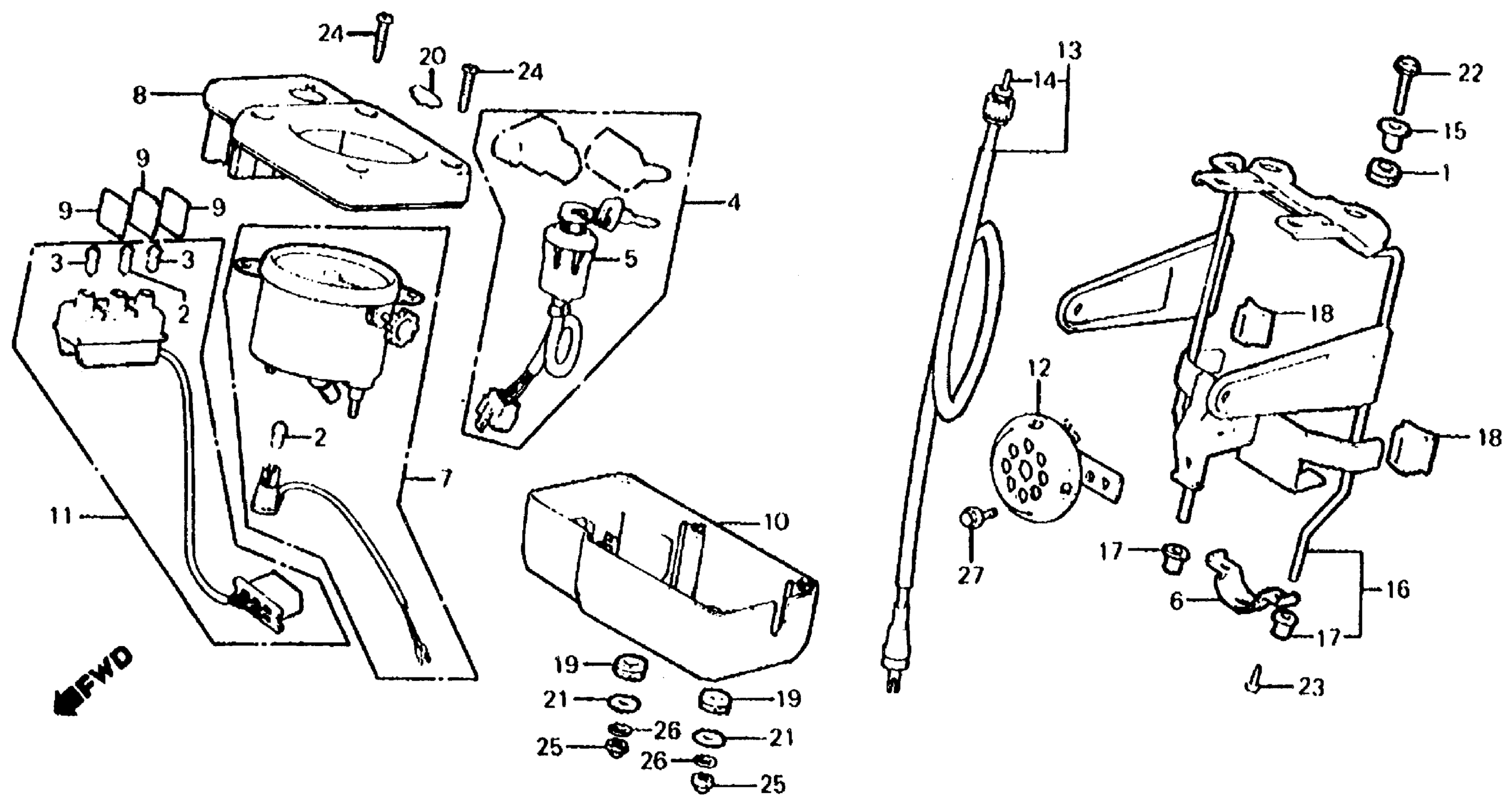

Honda XL125SA (79) MOTORCYCLE, JPN, VIN# L125S-5008316 TO L125S-5027623 SPEEDOMETER + HORN Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

3

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

4

LOCK SET This part replaces 35010-437-000.

35010-437-030

Unavailable

4

LOCK SET This part replaces 35010-437-010.

35010-437-030

Unavailable

4

LOCK SET This part replaces 35010-437-020.

35010-437-030

Unavailable

4

LOCK SET

35010-437-030

Unavailable

5

SWITCH ASSY., COMBINATION

35100-KF9-631

Unavailable

5

SWITCH ASSY., COMBINATION This part replaces 35100-437-007.

35100-KF9-631

Unavailable

5

SWITCH ASSY., COMBINATION This part replaces 35100-437-017.

35100-KF9-631

Unavailable

5

SWITCH ASSY., COMBINATION This part replaces 35100-437-027.

35100-KF9-631

Unavailable

5

SWITCH ASSY., COMBINATION This part replaces 35100-437-037.

35100-KF9-631

Unavailable

6

PROTECTOR, WIRE (NOT AVAILABLE) | Use up to Frame SN 5015801 This part replaces 35114-437-000.

35114-437-010

Unavailable

6

PROTECTOR, WIRE (NOT AVAILABLE) | Use from Frame SN 5015802

35114-437-010

Unavailable

7

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-437-671

Unavailable

8

CASE, PILOT (UPPER)

37610-437-671

Unavailable

9

PLATE, SEALING

37611-437-671

Unavailable

10

CASE, PILOT (LOWER) (NOT AVAILABLE)

37618-437-671

Unavailable

11

WIRE, PILOT (NOT AVAILABLE)

37619-437-671

Unavailable

12

HORN ASSY. (HIGH)

38110-GS3-013

Unavailable

12

HORN ASSY. (HIGH) This part replaces 38110-147-004.

38110-GS3-013

Unavailable

12

HORN ASSY. (HIGH) This part replaces 38110-437-004.

38110-GS3-013

Unavailable

13

CABLE ASSY., SPEEDOMETER

44830-KB7-000

Unavailable

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-313-000.

44830-KB7-000

Unavailable

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-437-670.

44830-KB7-000

Unavailable

14

CABLE (INNER) (USE P/N: 44830-KB7-000)

44831-437-670

Unavailable

15

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

15

COLLAR, RR. FENDER

61105-428-000

Unavailable

16

BRACKET, HEADLIGHT CASE *NH1* (BLACK) (NOT AVAILABLE)

61311-437-670ZA

Unavailable

17

GROMMET, HEADLIGHT CASE

61312-358-300

$3.67

18

RUBBER, BRACKET SETTING

61316-361-000

Unavailable

19

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

20

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

21

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

22

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

23

SCREW, TAPPING (4X10)

93901-24210

$1.49

24

SCREW, TAPPING (4X30) (NOT AVAILABLE)

93903-24780

Unavailable

25

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

25

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

25

NUT, CAP (6MM)

94021-06070-0S

$1.62

26

WASHER, SPRING (6MM)

94111-06700

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
