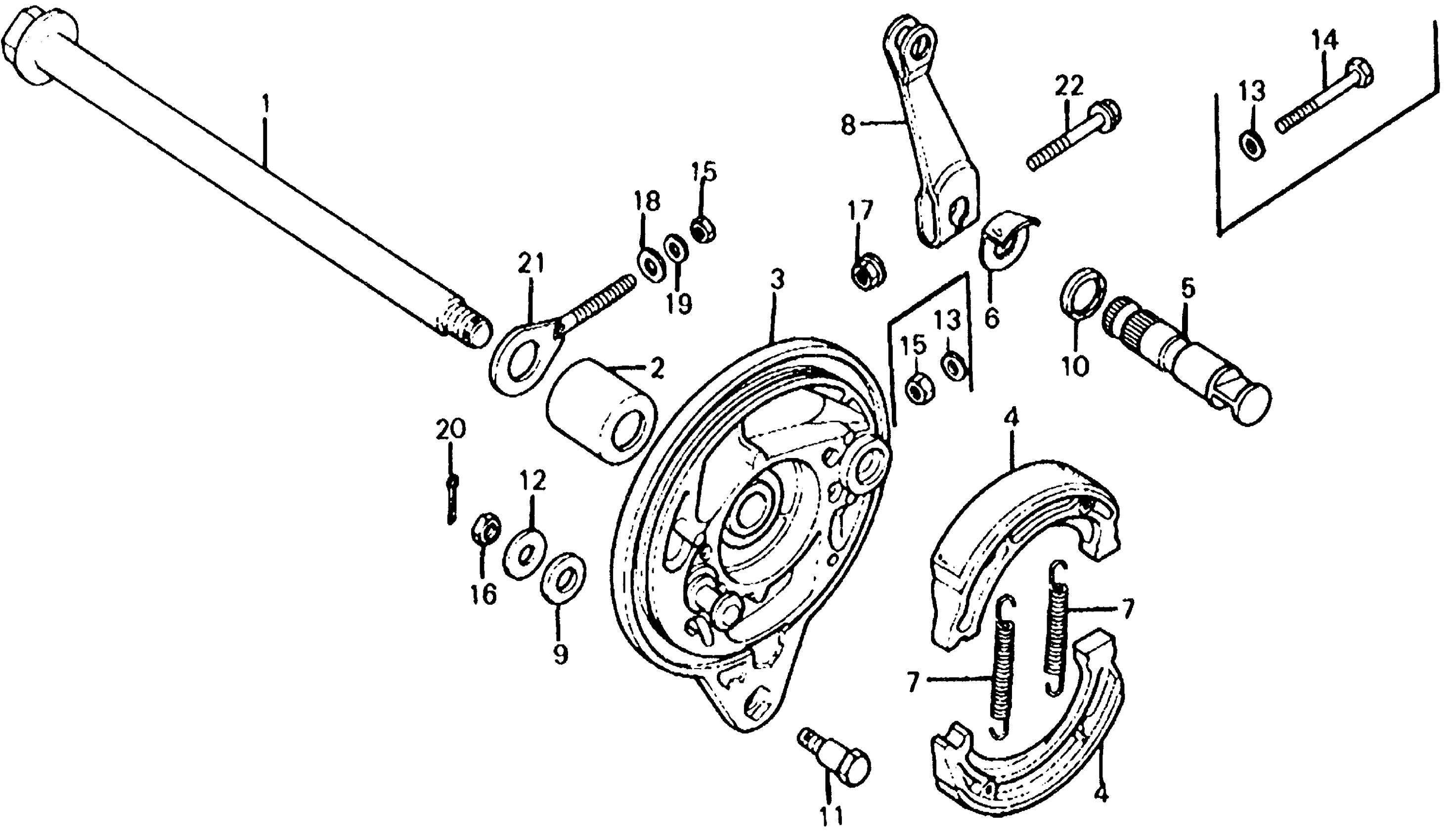

Honda XL125A MOTORCYCLE, JPN, VIN# XL125-1000001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

AXLE, RR. WHEEL (USED AS FR. FOR THIS BLOCK) This part replaces 42301-107-020.

42301-401-680

Unavailable

1

AXLE, RR. WHEEL

42301-401-680

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-365-670

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-361-670

Unavailable

6

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-355-000

Unavailable

7

SPRING, BRAKE SHOE

43151-110-000

$2.92

8

ARM, RR. BRAKE (NOT AVAILABLE)

43411-355-020

Unavailable

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

11

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

12

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

13

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

14

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

14

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

14

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

16

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

20

PIN, COTTER (1.6X25)

94201-16250

$1.49

21

ADJUSTER C, R. CHAIN

95014-12100

$5.54
