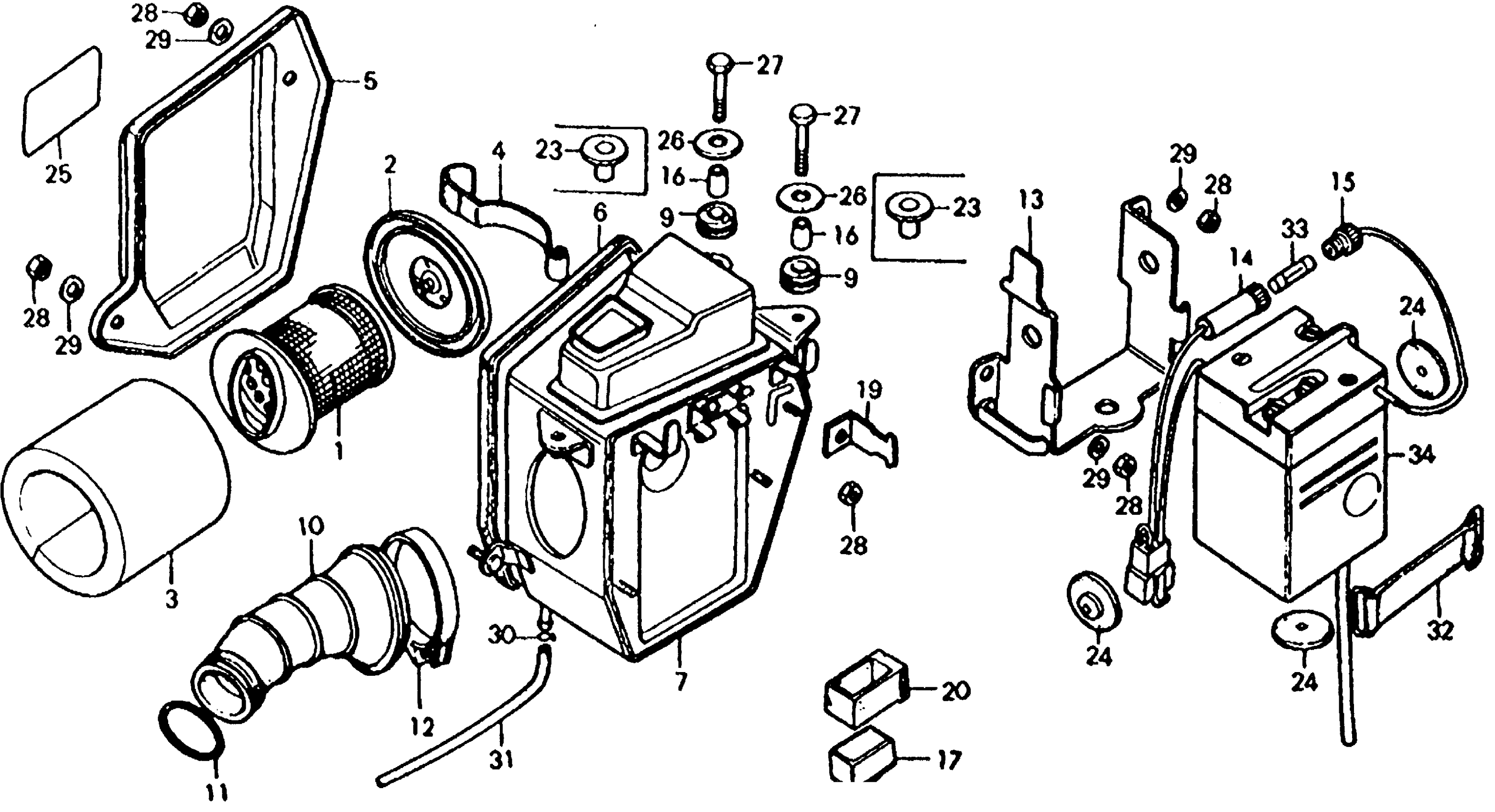

Honda XL125A MOTORCYCLE, JPN, VIN# XL125-1000001 AIR CLEANER + BATTERY Diagram

#

Description
Price

1

TRAP, FLAME

17214-365-670

Unavailable

2

CAP, AIR CLEANER ELEMENT (NOT AVAILABLE)

17212-365-670

Unavailable

3

ELEMENT, AIR CLEANER

17211-365-670

Unavailable

4

SPRING, ELEMENT HOLDER (NOT AVAILABLE)

17215-365-670

Unavailable

5

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17220-365-670

Unavailable

5

COVER, AIR CLEANER (NOT AVAILABLE)

17220-382-670

Unavailable

6

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-365-670

Unavailable

6

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-382-670

Unavailable

7

HOUSING, AIR CLEANER *NH1* (BLACK)

17230-365-670B

Unavailable

7

HOUSING, AIR CLEANER

17230-382-670

Unavailable

9

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

10

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-365-670

Unavailable

11

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

11

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

12

BAND ASSY., AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17260-365-670

Unavailable

13

TRAY, BATTERY (NOT AVAILABLE)

31530-365-670

Unavailable

14

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-000.

32106-437-300

Unavailable

14

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-008.

32106-437-300

Unavailable

14

CONNECTOR A, FUSE (YUASA)

32106-437-300

Unavailable

15

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

15

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

16

COLLAR, RR. TURN SIGNAL STAY | Use up to Frame SN 1220000

33603-053-650

$1.64

17

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

19

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38301-365-670

Unavailable

20

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

24

RUBBER, BATTERY BOX

83618-323-000

$2.47

25

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

26

WASHER, WHEEL (6MM)

90563-355-000

$3.13

27

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

27

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

28

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

BAND B1, BATTERY This part replaces 95012-12000.

95012-12001

$5.90

32

BAND B1, BATTERY

95012-12001

$5.90

33

FUSE A (10A)

98200-11000

$1.80

34

BATTERY (6N4C-1B) This part replaces 31500-098-506.

31500-098-506AH

Unavailable

34

BATTERY (6N4C-1B) This part replaces 31500-098-957.

31500-098-506AH

Unavailable

34

BATTERY (6N4C-1B) This part replaces 98203-66230.

31500-098-506AH

Unavailable
