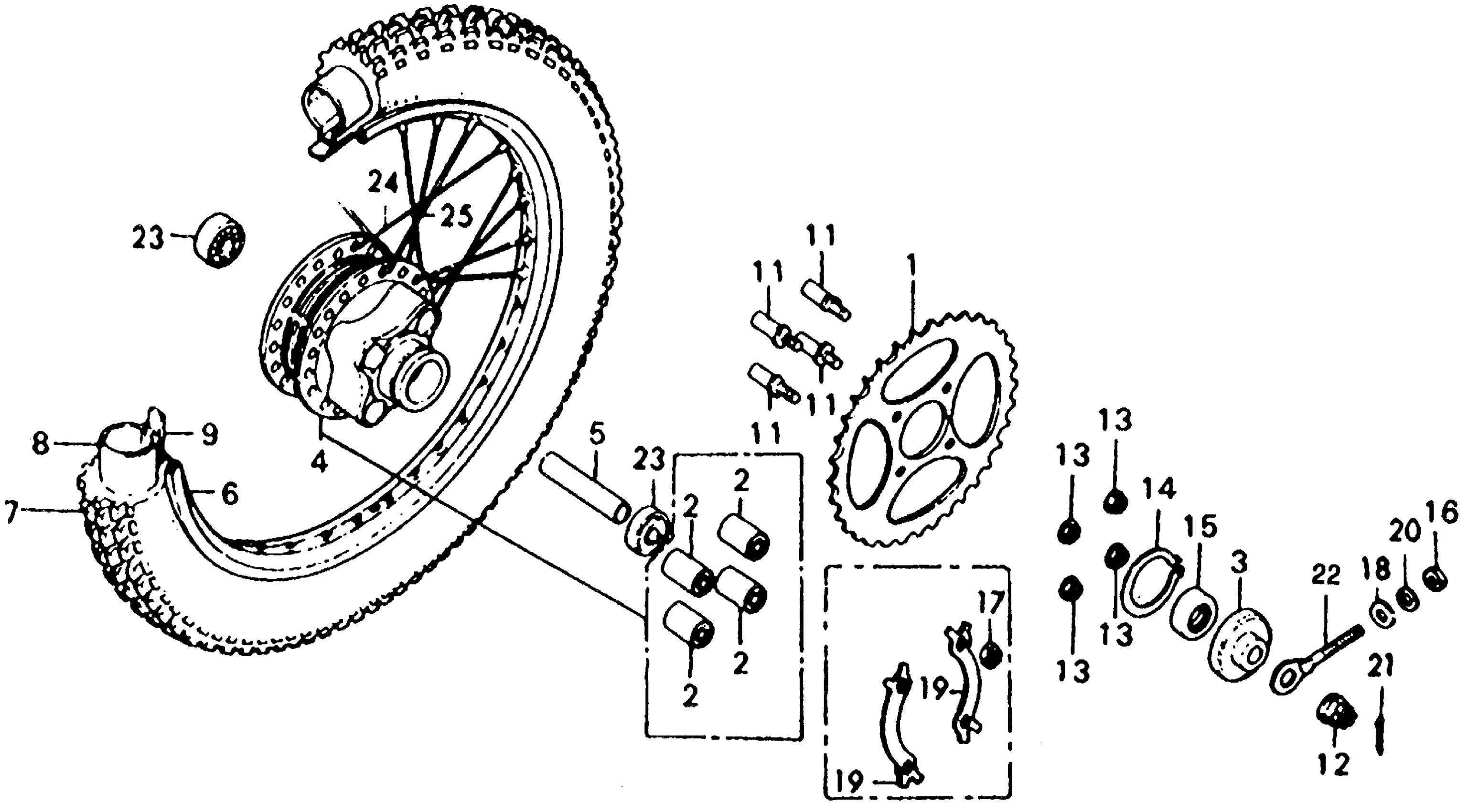

Honda XL125A (78) MOTORCYCLE, JPN, VIN# XL125-2100003 TO XL125-2113132 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (52T)

41201-382-670

Unavailable

2

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

3

COLLAR, RR. WHEEL SIDE

42304-107-000

Unavailable

4

HUB, RR. WHEEL *A01* (MAT BLACK)

42610-382-790ZA

Unavailable

5

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

6

RIM, RR. WHEEL | Use up to Frame SN 2108485 This part replaces 42701-331-671.

42701-314-405

Unavailable

6

RIM, RR. WHEEL

42701-314-405

Unavailable

6

RIM, RR. WHEEL | Use up to Frame SN 2108485

42701-314-405

Unavailable

6

RIM, RR. WHEEL This part replaces 42701-382-791.

42701-314-405

Unavailable

6

RIM, RR. WHEEL This part replaces 42701-437-003.

42701-314-405

Unavailable

7

TIRE, RR. (3.50-18) (BS) (NOT AVAILABLE)

42711-362-003

Unavailable

7

TIRE, RR. (3.50-18) (NITTO) (NOT AVAILABLE)

42711-382-671

Unavailable

7

TIRE, RR. (3.50-18) (BS) (NOT AVAILABLE) This part replaces 42711-391-671.

42711-362-003

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

8

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

9

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

9

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

11

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-391-000.

90128-KE2-940

$6.84

12

NUT, AXLE (14MM) | Use from Frame SN 1233332

90305-401-680

$11.65

13

NUT, FLANGE (10MM)

90308-382-670

$4.07

14

CIRCLIP (58MM)

90664-216-000

$5.55

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

22

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

22

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

22

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

23

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

23

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

24

SPOKE B (9X171.5)

97337-52183-10

$4.16

25

SPOKE B (9X171)

97714-52182-10

Unavailable
