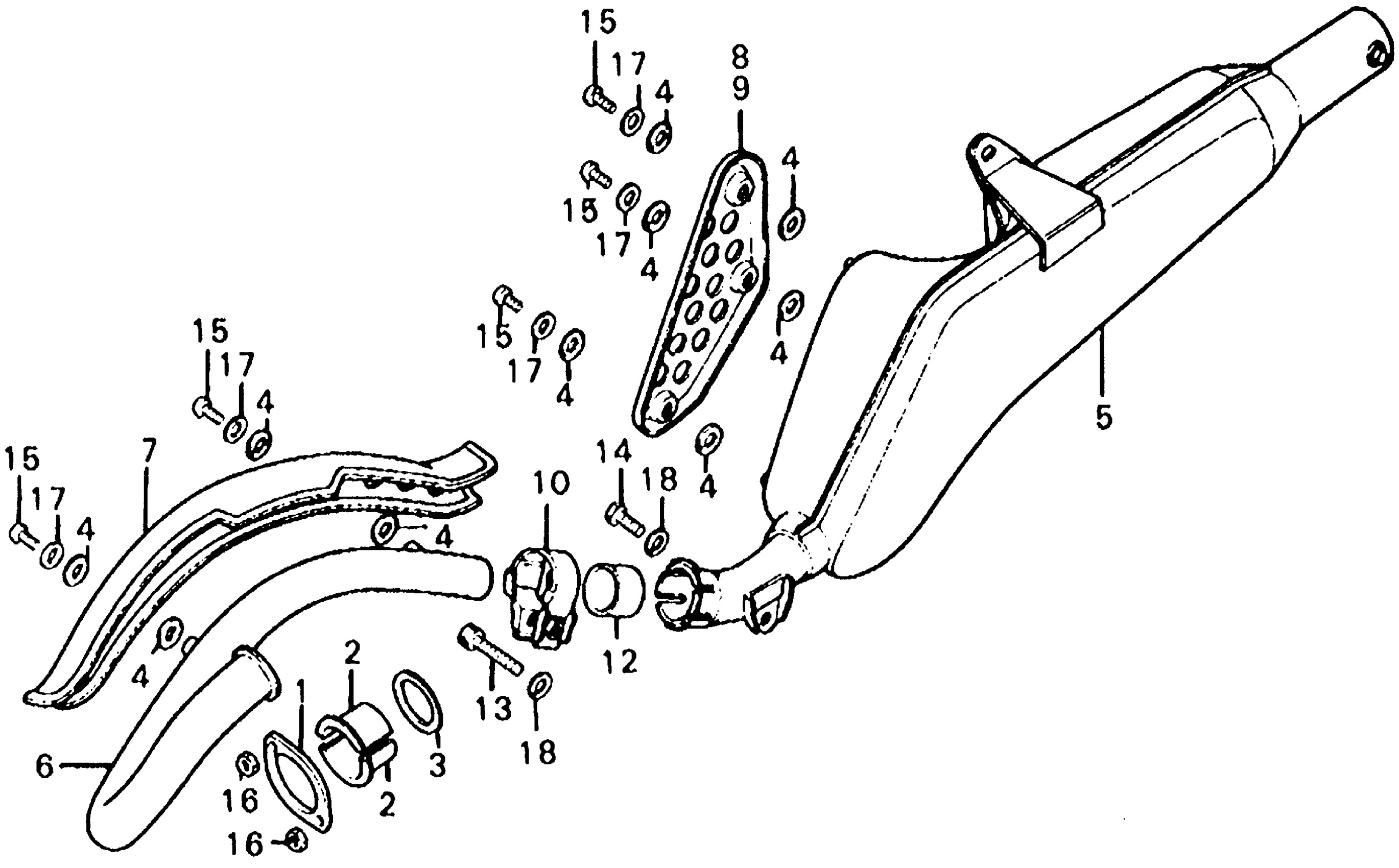

Honda XL125A (78) MOTORCYCLE, JPN, VIN# XL125-2100003 TO XL125-2113132 MUFFLER 76-78 Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-355-000

$29.07

2

COLLAR, EX. JOINT

18233-107-000

$5.91

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

4

GASKET, PROTECTOR

18292-167-890

$1.80

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.80

5

MUFFLER (SANKEI) (NOT AVAILABLE) This part replaces 18310-382-671.

18310-382-677

Unavailable

5

MUFFLER (SANKEI) (NOT AVAILABLE)

18310-382-677

Unavailable

6

PIPE, EX. This part replaces 18320-382-671.

18320-382-672

Unavailable

6

PIPE, EX.

18320-382-672

Unavailable

7

PROTECTOR, EX. PIPE This part replaces 18325-KE4-010.

18325-KE4-660

Unavailable

7

PROTECTOR, EX. PIPE

18325-KE4-660

Unavailable

7

PROTECTOR, EX. PIPE This part replaces 18325-382-670.

18325-KE4-660

Unavailable

7

PROTECTOR, EX. PIPE This part replaces 18325-382-671.

18325-KE4-660

Unavailable

8

PROTECTOR, MUFFLER This part replaces 18361-382-670.

18361-401-750

Unavailable

8

PROTECTOR, MUFFLER

18361-401-750

Unavailable

11

BAND, MUFFLER (NOT AVAILABLE)

18371-110-310

Unavailable

12

GASKET, MUFFLER

18391-ML8-000

$8.27

12

GASKET, MUFFLER This part replaces 18391-110-000.

18391-ML8-000

$8.27

13

BOLT, SOCKET

90116-391-670

Unavailable

14

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

14

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

15

SCREW, PAN (5X8)

93500-05008-0G

$0.83

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM)

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

17

WASHER, FLAT (5MM)

94101-05700

Unavailable

18

WASHER, SPRING (8MM)

94111-08000

$0.90
