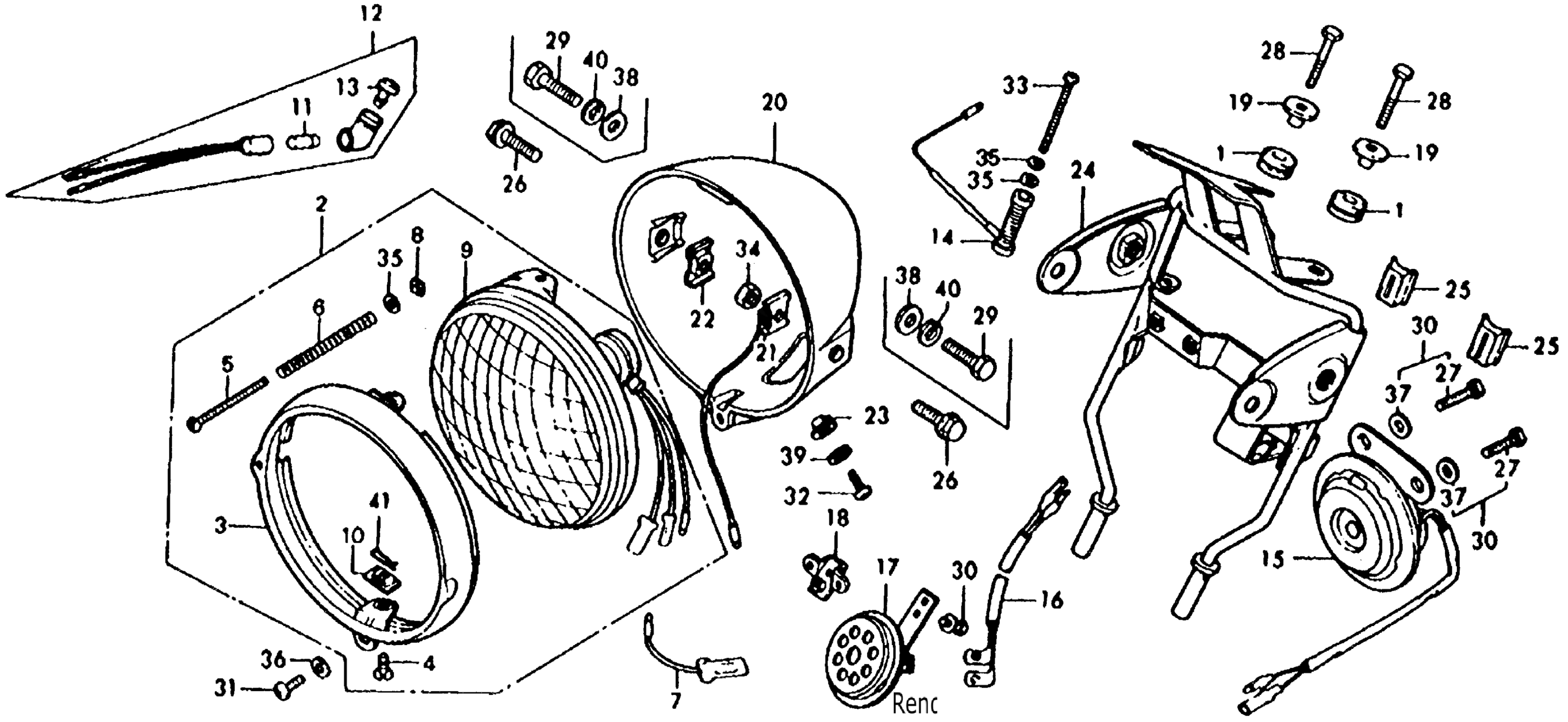

Honda XL125A (78) MOTORCYCLE, JPN, VIN# XL125-2100003 TO XL125-2113132 HEADLIGHT + BRACKET Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-243-670.

33100-243-672

Unavailable

2

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-243-672

Unavailable

3

RIM, HEADLIGHT

33101-243-670

$33.52

4

SCREW, UNIT HOLDER (NOT AVAILABLE)

33102-283-000

Unavailable

5

SCREW, HEADLIGHT BEAM ADJ.

33103-200-020

Unavailable

6

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

7

SUB-WIRE, HEADLIGHT (NOT AVAILABLE)

33109-382-670

Unavailable

8

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

9

HEADLIGHT UNIT (6V35/25W) This part replaces 33120-243-670.

33120-243-672

$62.34

9

HEADLIGHT UNIT (6V35/25W)

33120-243-672

$62.34

10

NUT, UNIT HOLDER

33128-200-033

Unavailable

14

RESISTOR (NOT AVAILABLE)

35400-329-671

Unavailable

16

SUB-WIRE, HORN

38105-312-670

Unavailable

17

HORN (HIGH)

38110-192-004

Unavailable

17

HORN (HIGH) This part replaces 38110-382-770.

38110-192-004

Unavailable

19

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

CASE, HEADLIGHT *NH1* (BLACK) This part replaces 61301-391-000B.

61301-391-000ZB

Unavailable

20

CASE, HEADLIGHT *NH1* (BLACK)

61301-391-000ZB

Unavailable

21

WASHER, HEADLIGHT CASE (NOT AVAILABLE)

61303-074-000

Unavailable

22

NUT, HEADLIGHT CASE

61303-105-000

$3.81

24

BRACKET, HEADLIGHT CASE *A01* (MAT BLACK) (NOT AVAILABLE)

61311-382-790ZA

Unavailable

25

RUBBER, BRACKET SETTING

61316-361-000

Unavailable

26

BOLT, FLANGE (8X25) (NOT AVAILABLE)

90119-383-000

Unavailable

28

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

28

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

30

BOLT-WASHER (6X12) (NOT AVAILABLE)

93483-06012-00

Unavailable

31

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

31

SCREW, PAN (5X12)

93500-05012-0A

$1.49

31

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

31

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

33

SCREW, PAN (5X55)

93500-05055-0A

$1.20

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

WASHER, PLAIN (4MM)

94101-04800

$1.49

36

WASHER, PLAIN (5MM)

94101-05000

$1.49

39

WASHER, SPRING (5MM)

94111-05000

$1.49

41

PIN, LOCK (5MM)

94251-05000

$1.49
