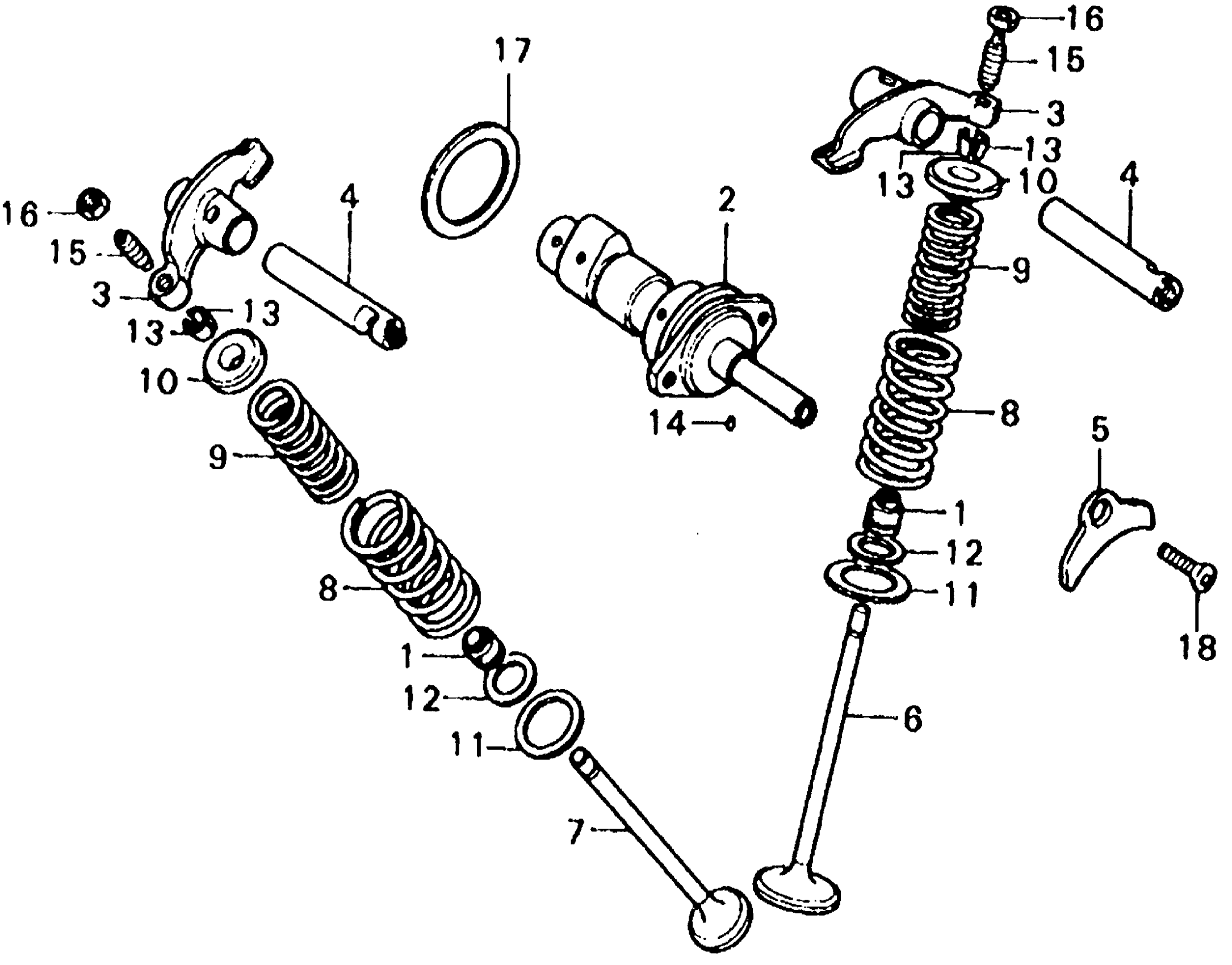

Honda XL125A (78) MOTORCYCLE, JPN, VIN# XL125-2100003 TO XL125-2113132 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$11.37

2

CAMSHAFT

14101-383-000

Unavailable

3

ARM, VALVE ROCKER

14431-383-000

$65.49

4

SHAFT, VALVE ROCKER ARM This part replaces 14451-383-000.

14451-437-000

$30.13

4

SHAFT, VALVE ROCKER ARM

14451-437-000

$30.13

5

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

6

VALVE, IN.

14711-383-000

Unavailable

7

VALVE, EX.

14721-383-000

Unavailable

8

SPRING, VALVE (OUTER) (CHUO HATSUJO)

14751-383-003

$15.75

8

SPRING, VALVE (OUTER) (NIPPON)

14751-383-005

$14.82

9

SPRING, VALVE (INNER) (NIPPON) This part replaces 14761-383-003.

14761-383-005

$8.13

9

SPRING, VALVE (INNER) (NIPPON)

14761-383-005

$8.13

10

RETAINER, VALVE SPRING

14771-107-020

$7.99

11

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

12

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

13

COTTER, VALVE (SANKO)

14781-107-003

$2.55

13

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

14

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

15

SCREW, TAPPET ADJ. This part replaces 90012-324-000.

90012-415-000

$6.05

15

SCREW, TAPPET ADJ.

90012-415-000

$6.05

16

NUT, TAPPET ADJ.

90206-250-000

$2.94

17

WASHER, THRUST (34MM)

90451-383-000

$8.91

18

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

18

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
