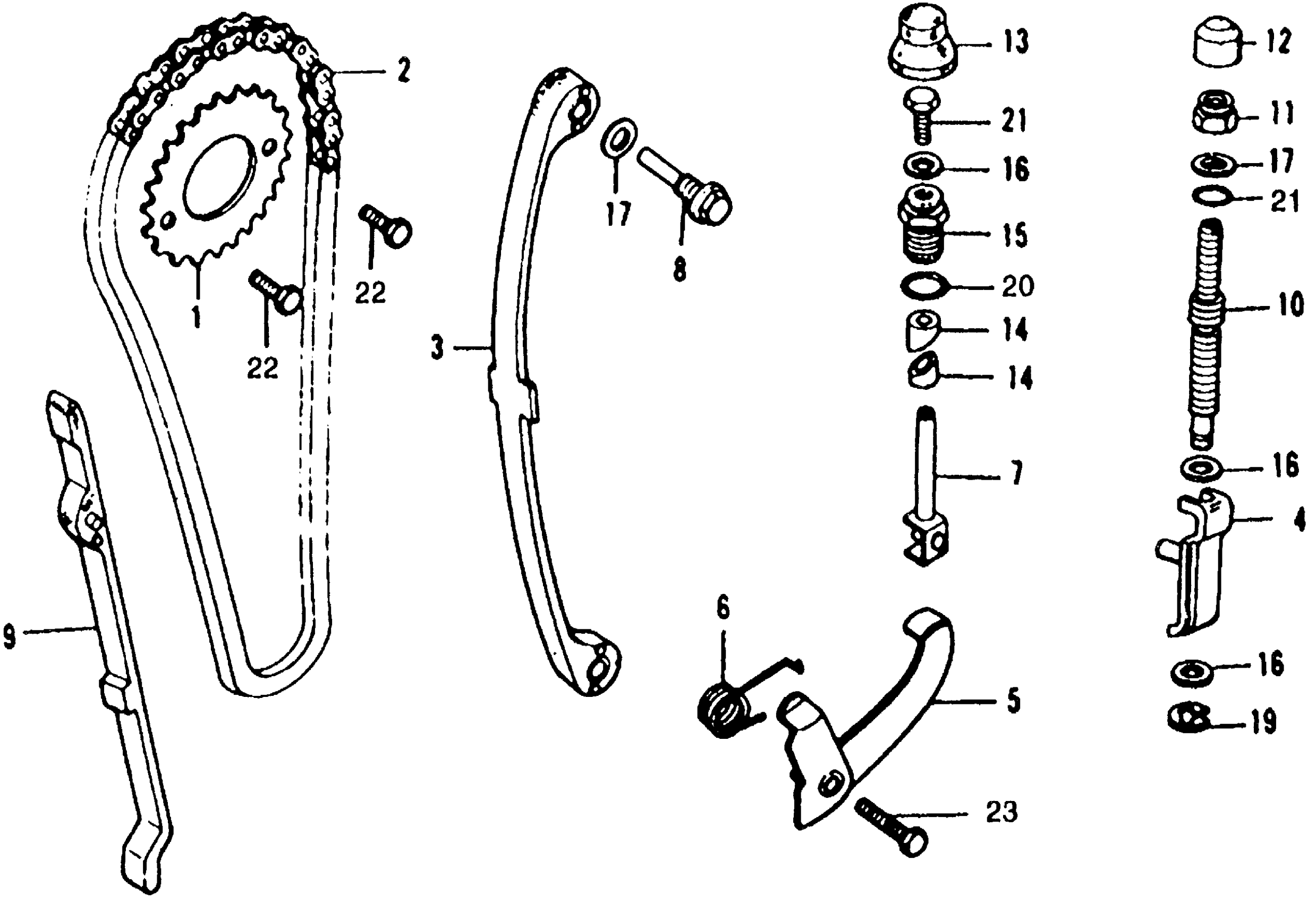

Honda XL125A (78) MOTORCYCLE, JPN, VIN# XL125-2100003 TO XL125-2113132 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T) This part replaces 14321-107-010.

14321-437-000

Unavailable

SPROCKET, CAM (32T)

14321-437-000

Unavailable

CHAIN, CAM (DID25H-98LE) (DAIDO)

14401-383-003

Unavailable

TENSIONER, CAM CHAIN

14500-383-000

$77.46

ARM, CAM CHAIN TENSIONER

14510-383-000

$30.65

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.86

BAR, TENSIONER SETTING

14520-969-010

$23.94

BOLT, CAM CHAIN TENSIONER PIVOT

14535-107-010

Unavailable

GUIDE, CAM CHAIN

14550-383-000

Unavailable

CAP, TENSIONER ADJ.

14564-383-000

$4.24

COLLAR, SET BAR LOCKING

14626-383-000

$8.76

BOLT, SPECIAL (16MM)

90082-383-000

$24.66

WASHER, SEALING (6MM)

90441-028-010

$3.29

WASHER (8MM)

90481-035-000

$1.72

O-RING (13X2.5)

91335-567-000

$3.83

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.29

BOLT, HEX. (6X10)

92101-06010-0A

$1.29

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.96

BOLT, HEX. (6X20)

92101-06020-0A

$0.96
