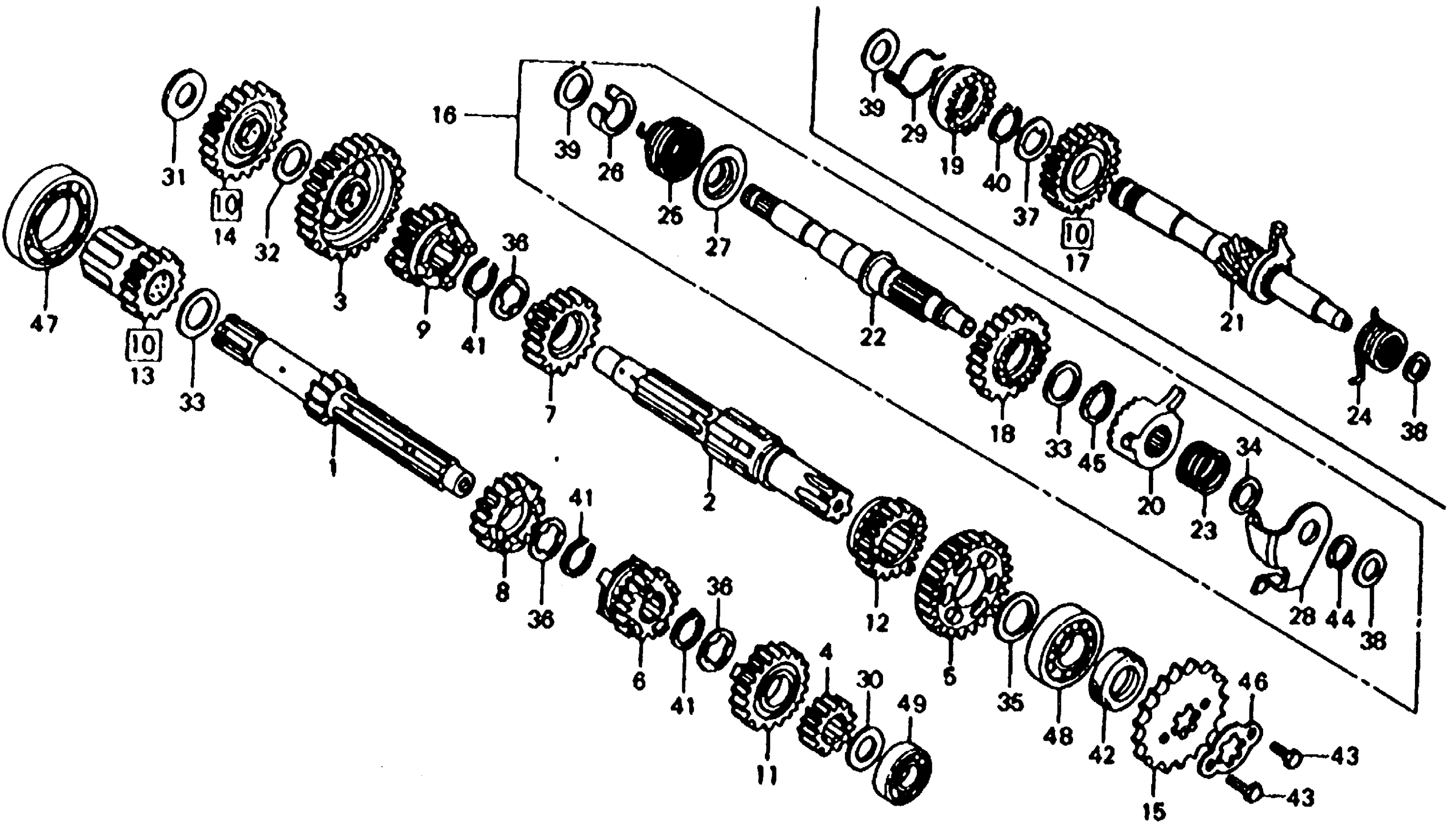

Honda XL125A (76) MOTORCYCLE, JPN, VIN# XL125-1200023 TO XL125-1205203 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

2

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 1213203 This part replaces 23221-107-000.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 1213203 This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 1213203

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-383-000

Unavailable

4

GEAR, COUNTERSHAFT SECOND (18T)

23441-107-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T)

23451-331-671

Unavailable

6

GEAR, MAINSHAFT THIRD (22T) This part replaces 23461-331-670.

23461-427-000

Unavailable

6

GEAR, MAINSHAFT THIRD (22T)

23461-427-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-331-670

$48.95

8

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

8

GEAR, MAINSHAFT FOURTH (25T) This part replaces 23501-383-000.

23481-427-000

$70.13

9

GEAR, COUNTERSHAFT FOURTH (25T)

23491-331-000

Unavailable

10

GEAR SET, KICK STARTER (NOT AVAILABLE) | (Optional). Use up to Engine SN 1221068

23500-383-000

Unavailable

11

GEAR, MAINSHAFT TOP (27T)

23501-331-010

Unavailable

12

GEAR, COUNTERSHAFT TOP (22T)

23511-331-670

Unavailable

13

GEAR, STARTER (19T)

23520-383-000

Unavailable

14

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

15

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

15

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

16

STARTER ASSY., KICK (NOT AVAILABLE) | (Optional). Use from Engine SN 1221069 to 1230197 This part replaces 28200-397-315.

28200-397-325

Unavailable

16

STARTER ASSY., KICK (NOT AVAILABLE) | (Optional). Use from Engine SN 1221069 to 1230197

28200-397-325

Unavailable

17

PINION, KICK STARTER (29T) | Use up to Engine SN 1221068

28211-383-000

Unavailable

18

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069 This part replaces 28211-397-000.

28220-397-305

Unavailable

18

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069

28220-397-305

Unavailable

19

RATCHET, KICK STARTER DRIVE | Use up to Engine SN 1221068

28221-107-010

Unavailable

20

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069 This part replaces 28211-397-000.

28220-397-305

Unavailable

20

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069 to 1230197 This part replaces 28211-397-000.

28220-397-305

Unavailable

20

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069

28220-397-305

Unavailable

20

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069 to 1230197 This part replaces 28221-397-000.

28220-397-305

Unavailable

20

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1221069 This part replaces 28221-397-010.

28220-397-305

Unavailable

21

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1221068

28250-365-000

Unavailable

22

SPINDLE, KICK STARTER | Use from Engine SN 1221069 This part replaces 28251-397-000.

28251-397-010

Unavailable

22

SPINDLE, KICK STARTER | Use from Engine SN 1221069

28251-397-010

Unavailable

23

SPRING, KICK STARTER RATCHET | Use from Engine SN 1221069

28253-397-000

Unavailable

24

SPRING, KICK STARTER | Use up to Engine SN 1221068

28261-107-000

Unavailable

25

SPRING, KICK STARTER | Use from Engine SN 1221069

28261-397-000

Unavailable

26

COLLAR, KICK SPINDLE | Use from Engine SN 1221069

28262-397-000

Unavailable

27

RETAINER, STARTER SPRING | Use from Engine SN 1221069

28263-397-000

Unavailable

28

PLATE, RATCHET GUIDE | Use from Engine SN 1221069 This part replaces 28270-397-000.

28270-397-020

Unavailable

28

PLATE, RATCHET GUIDE | Use from Engine SN 1221069 This part replaces 28270-397-010.

28270-397-020

Unavailable

28

PLATE, RATCHET GUIDE | Use from Engine SN 1221069

28270-397-020

Unavailable

29

SPRING, STARTER PINION FRICTION (NOT AVAILABLE) | Use up to Engine SN 1221068

28271-107-000

Unavailable

30

WASHER, THRUST (15MM)

90451-107-000

$1.49

31

WASHER, THRUST (15MM)

90451-365-000

$3.08

32

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

33

WASHER A, THRUST (20MM) | Use up to Engine SN 1221068

90453-107-000

$2.25

33

WASHER A, THRUST (20MM) | Use from Engine SN 1221069

90453-107-000

$2.25

34

WASHER, THRUST (16MM) | Use from Engine SN 1221069

90453-235-000

$1.83

35

WASHER, THRUST (20MM)

90454-107-000

$1.80

36

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

37

WASHER, THRUST (25MM) (NOT AVAILABLE) | Use up to Engine SN 1221068

90458-107-000

Unavailable

38

WASHER, THRUST (12MM)

90459-107-000

$1.49

39

WASHER, THRUST (16MM)

90462-107-000

$2.11

40

CIRCLIP (25MM) | Use up to Engine SN 1221068

90601-107-000

$3.74

41

SET-RING (20MM)

90605-200-000

$2.92

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-005.

91201-030-033

$5.54

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

42

OIL SEAL (20X34X7)

91201-030-015

Unavailable

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

42

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

42

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

43

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

43

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

44

CIRCLIP (OUTER) (16MM) | Use from Engine SN 1221069

94510-16000

$1.49

45

CIRCLIP (OUTER) (20MM) | Use from Engine SN 1221069

94510-20000

$1.49

46

PLATE B, FIXING

95014-92100

$1.49

47

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

47

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

48

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

48

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

49

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

49

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10
