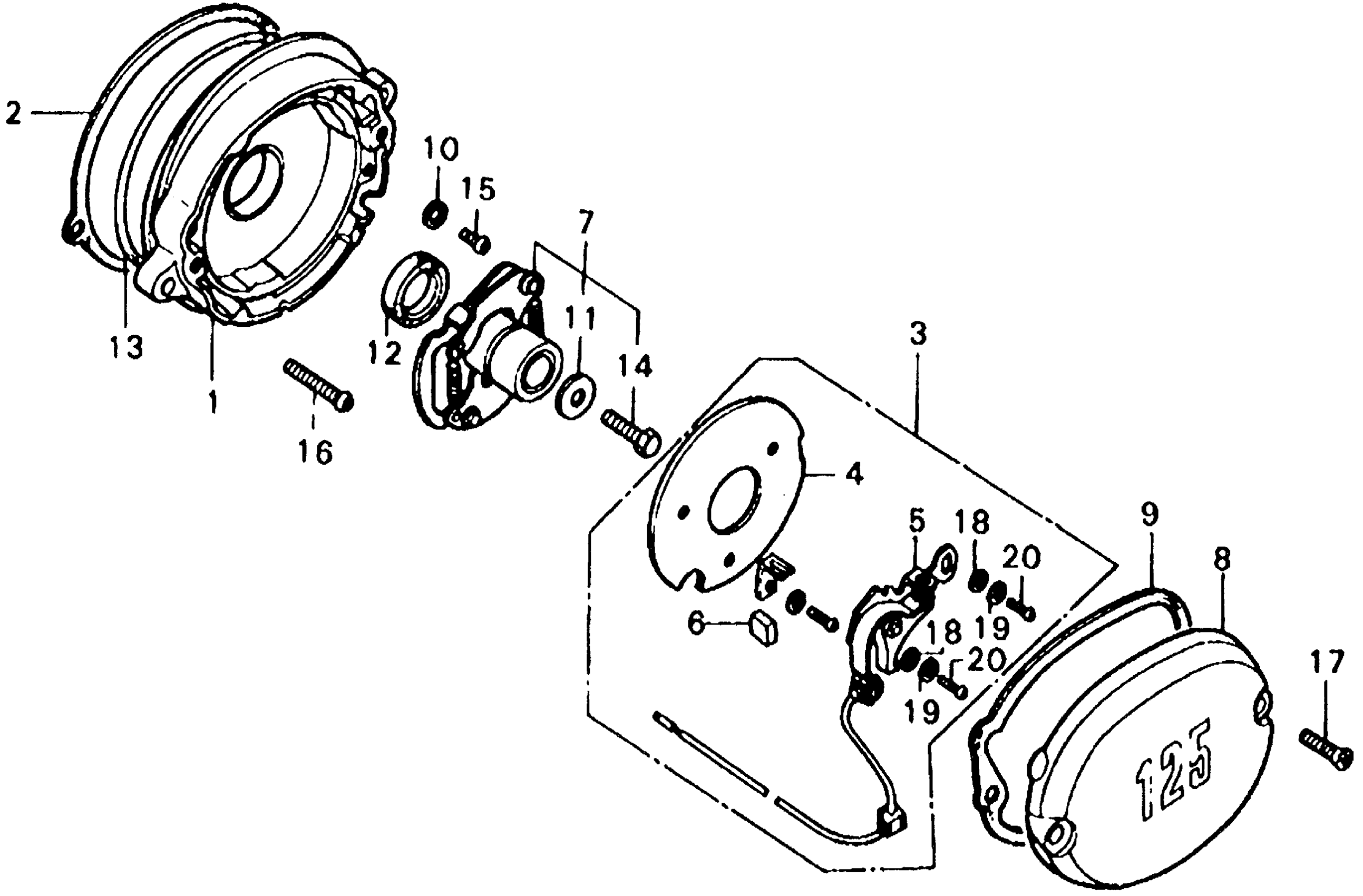

Honda XL125A (76) MOTORCYCLE, JPN, VIN# XL125-1200023 TO XL125-1205203 POINTS + ADVANCER Diagram

#

Description
Price

1

BASE, POINTS

12332-324-000

Unavailable

2

GASKET, POINTS BASE (AS) This part replaces 12339-383-000.

12339-383-306

Unavailable

2

GASKET, POINTS BASE (AS)

12339-383-306

Unavailable

3

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-329-004

Unavailable

4

PLATE, POINTS BASE (TOYO)

30201-107-154

Unavailable

4

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-329-004

Unavailable

5

POINTS (DENSO)

30202-107-004

$43.04

5

POINTS (TOYO)

30202-107-154

$27.89

6

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

6

FELT, OIL (TOYO)

30205-300-154

Unavailable

7

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-382-154

Unavailable

8

COVER, POINTS

30370-324-000

Unavailable

9

GASKET, POINTS COVER This part replaces 30372-107-000.

30372-107-307

Unavailable

9

GASKET, POINTS COVER

30372-107-307

Unavailable

10

WASHER (5MM)

90482-028-000

$2.09

11

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

12

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

12

OIL SEAL (15X25X7)

91203-965-003

$6.41

13

O-RING (75X2.5)

91301-107-000

$4.87

14

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

14

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

15

SCREW, PAN (5X12)

93500-05012-0A

$1.49

16

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

17

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

18

WASHER, PLAIN (4MM)

94101-04000

$1.49

19

WASHER, SPRING (4MM)

94111-04000

$1.49

20

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

20

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
