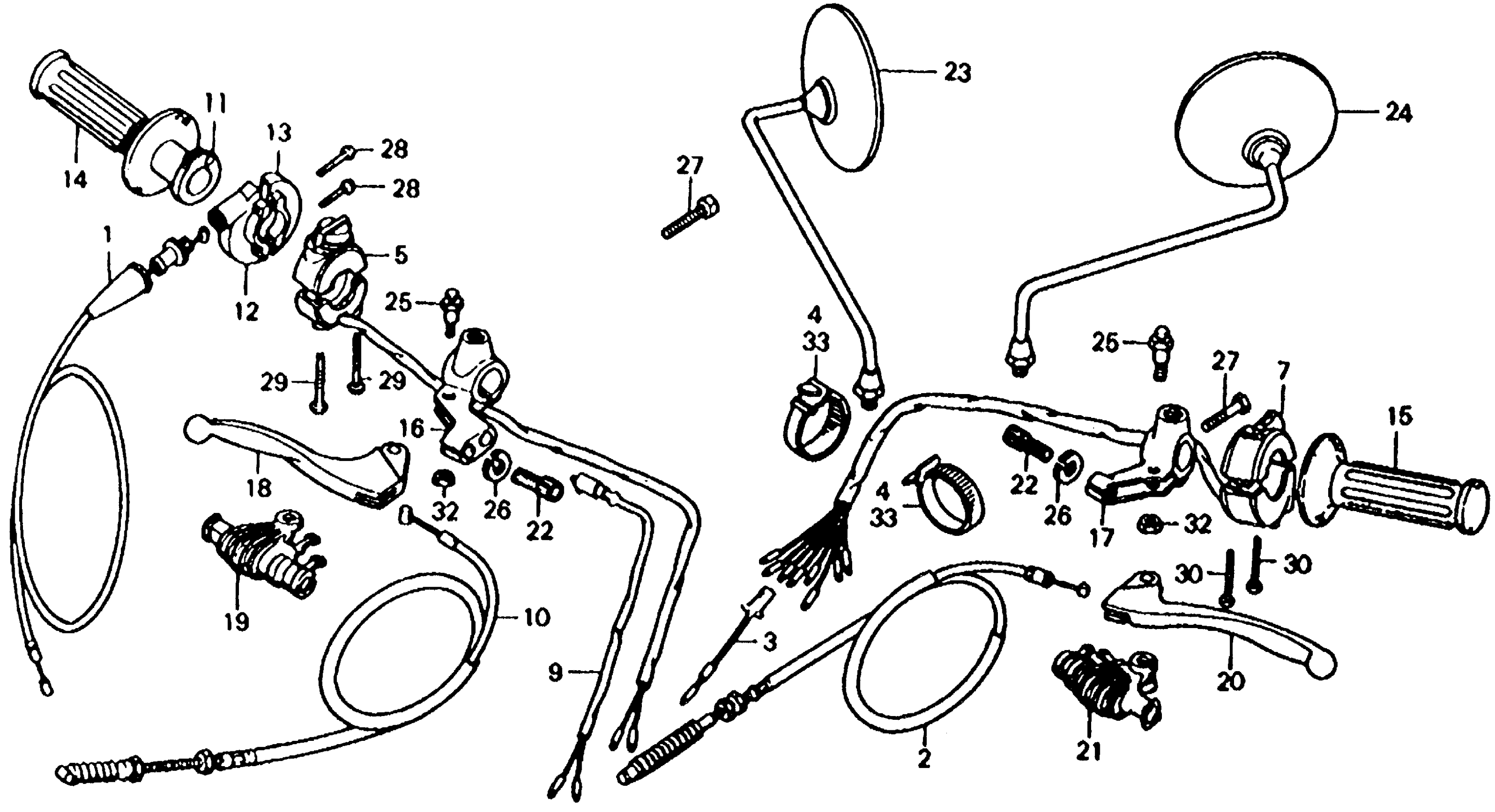

Honda XL125A (76) MOTORCYCLE, JPN, VIN# XL125-1200023 TO XL125-1205203 HANDLE LEVER + SWITCH 76-78 Diagram

#

Description
Price

1

CABLE, THROTTLE | Use from Frame SN 1220011 This part replaces 17910-116-690.

17910-153-P00

$31.84

1

CABLE, THROTTLE | Use from Frame SN 1220011 This part replaces 17910-116-710.

17910-153-P00

$31.84

1

CABLE, THROTTLE | Use from Frame SN 1220011

17910-153-P00

$31.84

1

CABLE, THROTTLE

17910-153-P00

$31.84

1

CABLE, THROTTLE | Use from Frame SN 1220011 This part replaces 17910-365-670.

17910-153-P00

$31.84

1

CABLE, THROTTLE This part replaces 17910-365-670.

17910-153-P00

$31.84

1

CABLE, THROTTLE | Use from Frame SN 1220011 This part replaces 17910-365-671.

17910-153-P00

$31.84

1

CABLE, THROTTLE | Use from Frame SN 1220011 This part replaces 17910-382-670.

17910-153-P00

$31.84

2

CABLE, CLUTCH

22870-KB1-405

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KB1-910.

22870-KB1-405

Unavailable

2

CABLE, CLUTCH This part replaces 22870-382-670.

22870-KB1-405

Unavailable

3

CABLE B, SUB (WHITE) (NOT AVAILABLE)

32102-385-000

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-137-671

Unavailable

7

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

9

SWITCH ASSY., FR. STOP This part replaces 35340-GJ5-000.

35340-GAN-620

$19.20

9

SWITCH ASSY., FR. STOP This part replaces 35340-GJ5-010.

35340-GAN-620

$19.20

9

SWITCH ASSY., FR. STOP This part replaces 35340-355-000.

35340-GAN-620

$19.20

9

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

10

CABLE, FR. BRAKE | Use from Frame SN 1216375

45450-KE4-P00

Unavailable

10

CABLE, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1216374

45450-361-000

Unavailable

10

CABLE, FR. BRAKE | Use from Frame SN 1216375 This part replaces 45450-361-780.

45450-KE4-P00

Unavailable

10

CABLE, FR. BRAKE | Use from Frame SN 1216375 This part replaces 45450-401-650.

45450-KE4-P00

Unavailable

10

CABLE, FR. BRAKE | Use from Frame SN 1216375 This part replaces 45450-436-770.

45450-KE4-P00

Unavailable

11

PIPE, THROTTLE GRIP This part replaces 53141-355-000.

53141-355-010

Unavailable

11

PIPE, THROTTLE GRIP

53141-355-010

Unavailable

12

CASE (UPPER)

53143-355-000

Unavailable

13

CASE (LOWER)

53144-355-000

Unavailable

14

GRIP, R. HANDLEBAR

53165-116-670

$12.17

15

GRIP, L. HANDLEBAR

53166-116-670

$12.19

16

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

17

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

18

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

19

COVER, R. CONTROL LEVER

53176-329-000

$12.41

20

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

21

COVER, L. CONTROL LEVER

53179-329-000

$15.07

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

23

MIRROR, R.

88110-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

25

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

26

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

27

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

29

SCREW, PAN (5X28)

93500-05028-0A

$1.49

30

SCREW, PAN (5X32)

93500-05032-0A

$1.49

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

BAND B1, CABLE

95014-62100

$1.64
