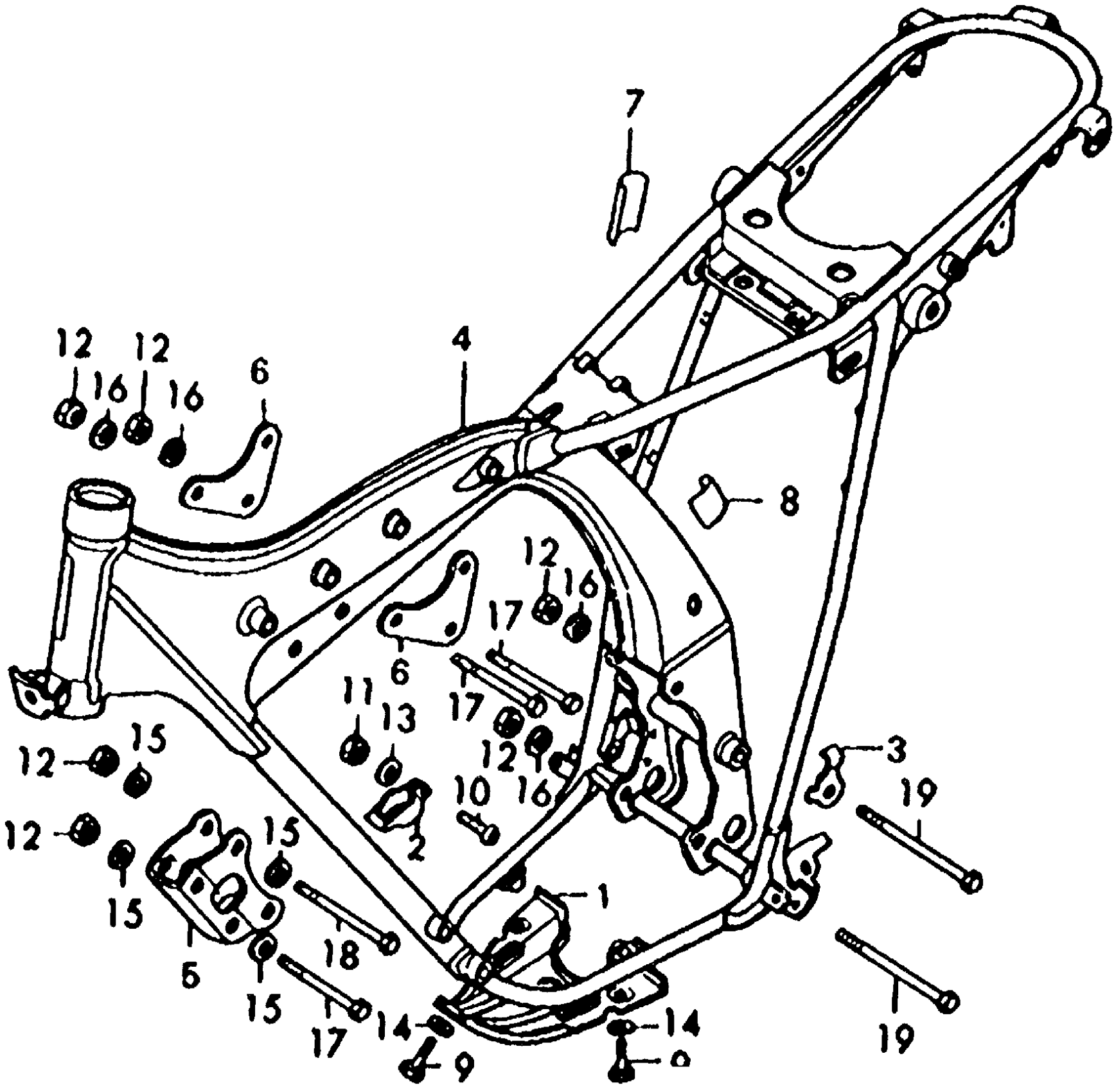

Honda XL125A (76) MOTORCYCLE, JPN, VIN# XL125-1200023 TO XL125-1205203 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-365-670

Unavailable

2

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-355-000

Unavailable

3

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

4

FRAME *NH1* (BLACK)

50100-382-670ZA

Unavailable

5

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-355-000B

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

7

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

8

MARK, BATTERY CAUTION

87506-382-670

Unavailable

9

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

9

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

9

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

10

SCREW, PAN (5X20)

93500-05020-0A

$1.49

10

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

11

NUT, HEX. (5MM)

94001-05000-0S

$2.74

12

NUT, HEX. (8MM)

94030-08000

$1.49

13

WASHER, PLAIN (5MM)

94101-05000

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49

17

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

18

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

19

BOLT, HEX. (8X111)

95300-08111-00

$2.92
