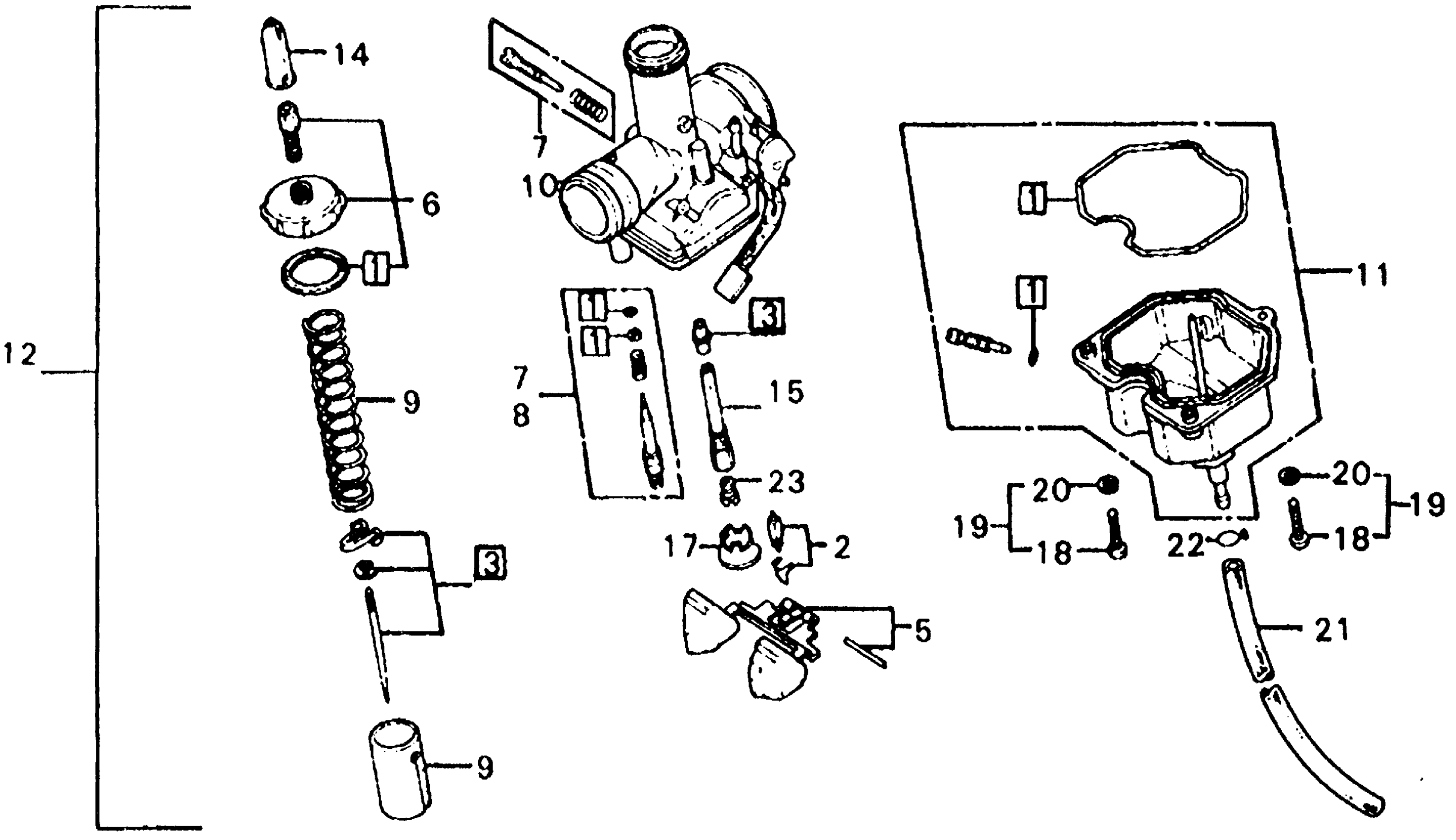

Honda XL125A (76) MOTORCYCLE, JPN, VIN# XL125-1200023 TO XL125-1205203 CARBURETOR (2) 76-78 Diagram

#

Description
Price

1

GASKET SET | Use from Engine SN PD65A A

16010-HB5-305

$27.44

1

GASKET SET | Use from Engine SN PD65A A This part replaces 16010-382-004.

16010-HB5-305

$27.44

2

VALVE SET, FLOAT | Use from Engine SN PD65A A This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use from Engine SN PD65A A This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use from Engine SN PD65A A This part replaces 16011-393-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN PD65A A

16012-382-014

Unavailable

5

FLOAT SET | Use from Engine SN PD65A A

16013-324-680

Unavailable

6

TOP SET | Use from Engine SN PD65A A This part replaces 16014-324-680.

16014-324-681

Unavailable

6

TOP SET | Use from Engine SN PD65A A

16014-324-681

Unavailable

7

SCREW SET | Use from Engine SN PD65A A

16016-324-680

Unavailable

9

VALVE SET, THROTTLE | Use from Engine SN PD65A A

16022-324-680

Unavailable

11

CHAMBER SET, FLOAT | Use from Engine SN PD65A A

16015-KFC-910

Unavailable

11

CHAMBER SET, FLOAT | Use from Engine SN PD65A A This part replaces 16015-384-601.

16015-KFC-910

Unavailable

11

CHAMBER SET, FLOAT | Use from Engine SN PD65A A This part replaces 16045-393-004.

16015-KFC-910

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 1221069 This part replaces 16100-382-024.

16100-382-034

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 1221069

16100-382-034

Unavailable

14

CAP, CABLE SEALING | Use from Engine SN PD65A A This part replaces 16118-086-004.

16118-166-004

$8.08

14

CAP, CABLE SEALING | Use from Engine SN PD65A A

16118-166-004

$8.08

15

HOLDER, NEEDLE JET | Use from Engine SN PD65A A

16165-382-014

Unavailable

17

HOLDER, JET | Use from Engine SN PD65A A

16168-382-014

$9.81

18

SCREW, PAN (4X16) | Use from Engine SN PD65A A

93500-04016-0H

$1.49

20

WASHER, SPRING (4MM) | Use from Engine SN PD65A A

94111-04800

$1.49

21

BULK HOSE, FUEL (3.5X3000) (3.5X330) | Use from Engine SN PD65A A

95001-35003-60M

$20.85

22

CLIP, TUBE (B7) | Use from Engine SN PD65A A

95002-02070

$1.80

23

JET, MAIN (#98) | Use from Engine SN PD65A A

99101-GHB-0980

$6.40

23

JET, MAIN (#98) | Use from Engine SN PD65A A This part replaces 99101-393-0980.

99101-GHB-0980

$6.40
