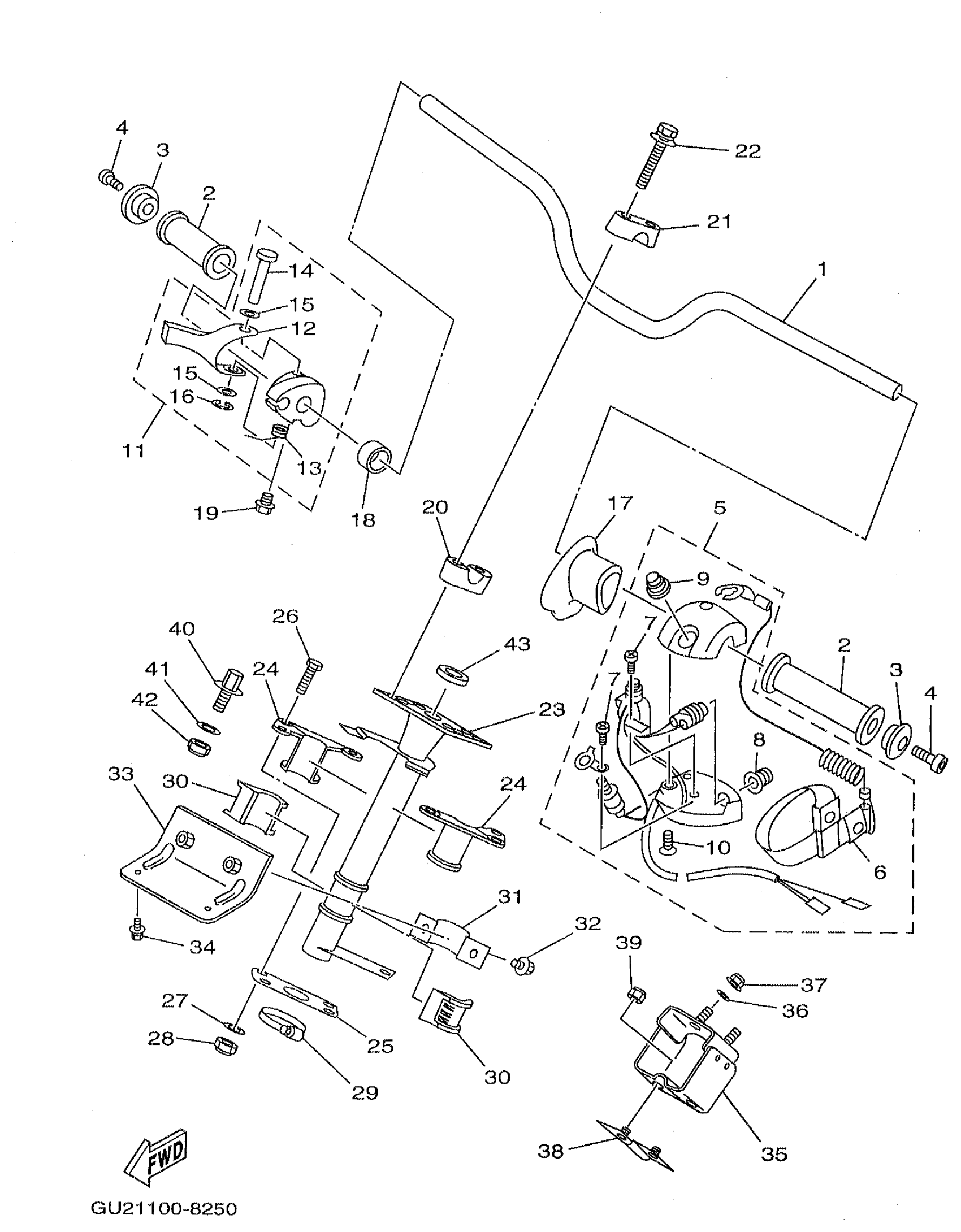

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GU2-U1552-00-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

SWITCH BOX ASSY

GP7-68310-01-00

$263.62

6

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

7

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

8

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

9

. START BUTTON COMP

FK7-68313-02-00

$11.31

10

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

11

THROTTLE LEVER ASSY

GJ1-67250-01-00

Unavailable

12

. LEVER, THROTTLE

GJ1-67255-00-00

$32.99

13

. SPRING

EW2-67256-00-00

$6.36

14

. SHAFT

EW2-67257-01-00

$13.99

15

WASHER, PLAIN (646)

92990-05600-00

Unavailable

16

CIRCLIP (EU0)

99080-04600-00

$1.70

17

SPACER

GU2-6143G-00-00

$32.99

18

SPACER(1LX)

90560-22281-00

Unavailable

19

SCREW, WITH WASHER

90159-059U2-00

Unavailable

20

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

21

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

22

BOLT, WITH WASHER

90119-08925-00

Unavailable

23

COLUMN, STEERING

GU2-61541-00-00

Unavailable

24

BEARING, COLUMN

GH1-6141B-00-00

$20.37

25

SEAL, RUBBER

GH1-U143C-30-00

Unavailable

26

BOLT(JF7)

97080-06030-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

NUT, SELF-LOCKING

95720-06300-00

$1.82

29

BAND, HOSE 42

90601-142U6-00

Unavailable

30

BEARING, STEERING

GH1-6141D-01-00

$17.40

31

JOINT, BEARING

EU0-61588-00-00

Unavailable

32

BOLT, WITH WASHER

90119-08800-00

$4.09

33

BRACKET, BEARING

GU2-61433-00-00

Unavailable

34

BOLT, WITH WASHER

90119-08800-00

$4.09

35

BRACKET, STOPPER CABLE

GU2-61467-00-00

$71.20

36

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

37

NUT, FLANGE

95780-06300-00

$7.14

38

STOPPER, CABLE

GH3-61468-00-00

Unavailable

39

NUT, SELF-LOCKING

95720-06300-00

$1.82

40

PIN, STOPPER

FN8-6131B-00-00

$77.26

41

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

42

NUT, NYLON (FN8)

95720-10300-00

Unavailable

43

PACKING, STEERING COLUMN

GH1-U1469-00-00

Unavailable
