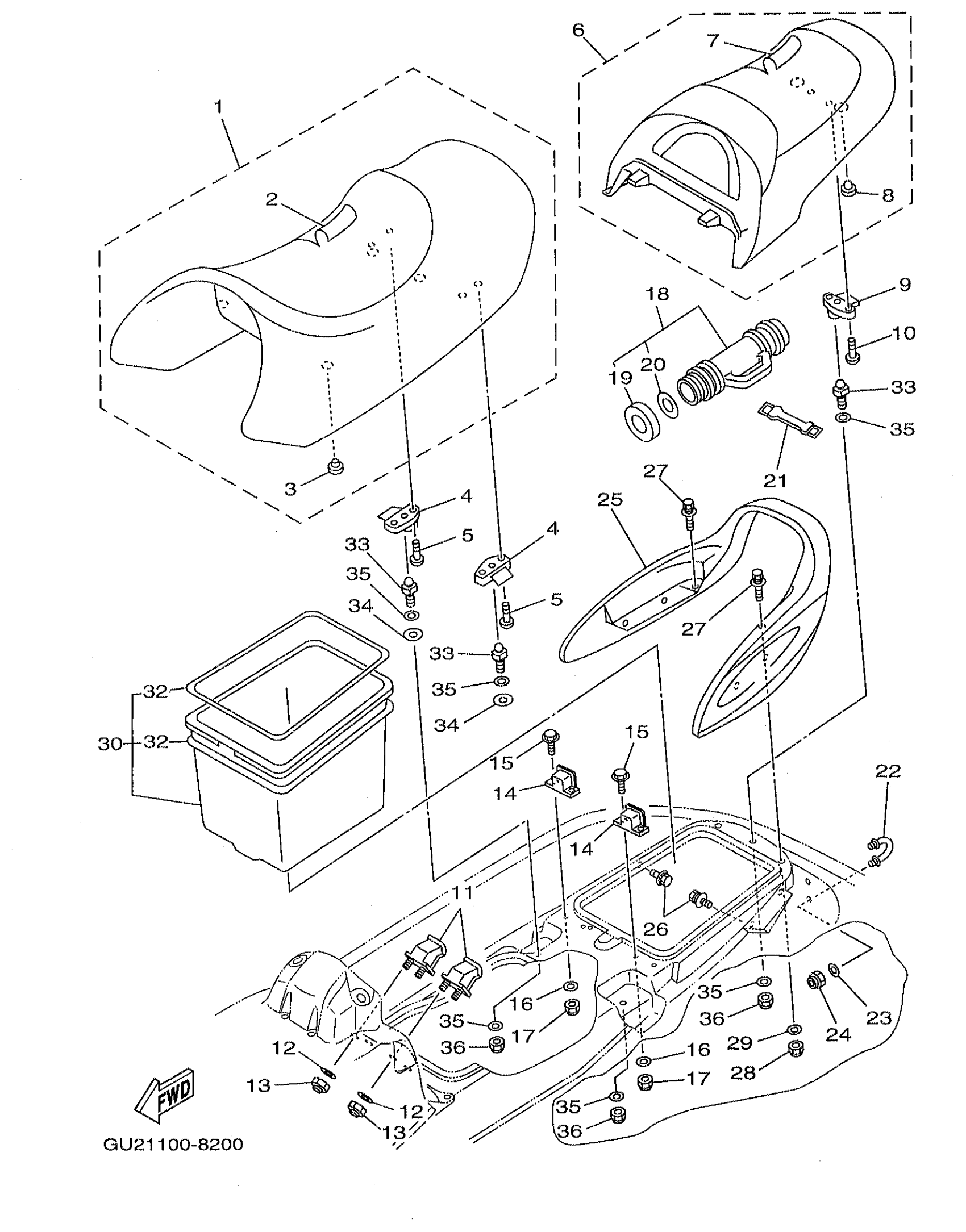

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GU2-U371A-10-00

Unavailable

2

. COVER, SEAT 1

GU2-U371B-10-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSEMBLY

GU2-U372A-10-00

Unavailable

7

. COVER, SEAT

GU2-U372B-10-00

Unavailable

8

STOPPER MAIN STAND

278-27114-00-00

$7.90

9

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STAY, SEAT 1

GU2-6378C-00-00

$62.11

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

13

NUT, SELF-LOCKING

95720-06300-00

$1.82

14

STAY,SEAT 2

GU2-6378D-02-00

$19.68

15

BOLT(7U8)

97080-06020-00

$3.63

16

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

17

NUT, SELF-LOCKING

95720-06300-00

$1.82

18

CASE 2 ASSY.

EW2-U5920-00-00

Unavailable

19

. CAP, CASE

EW2-U5912-01-00

Unavailable

20

PACKING, CASE

EW2-U5913-01-00

Unavailable

21

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

22

BOW EYE 2 (C)

A00-61626-40-00

$43.92

23

WASHER, PLAIN

92990-08200-00

$2.36

24

. NUT, SELF-LOCKING

95720-08300-00

$3.33

25

GRIP, HAND

GU2-U271B-00-00

Unavailable

26

BOLT WITH WASHER (EW2)

90119-06920-00

Unavailable

27

BOLT, HEX (MIRROR)

90119-06924-00

Unavailable

28

NUT, SELF-LOCKING

95720-06300-00

$1.82

29

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

30

UNDER LOCKER ASSY

GJ3-U474A-01-00

Unavailable

32

PACKING 4

GJ3-U266C-02-00

$24.98

33

PIN

GH1-63774-01-00

$22.71

34

TAPE

GJ3-U5578-00-00

Unavailable

35

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

36

NUT, NYLON (FN8)

95720-10300-00

Unavailable
