- XL1200W (WAVE RUNNER XL1200) 1998
REPAIR KIT 1

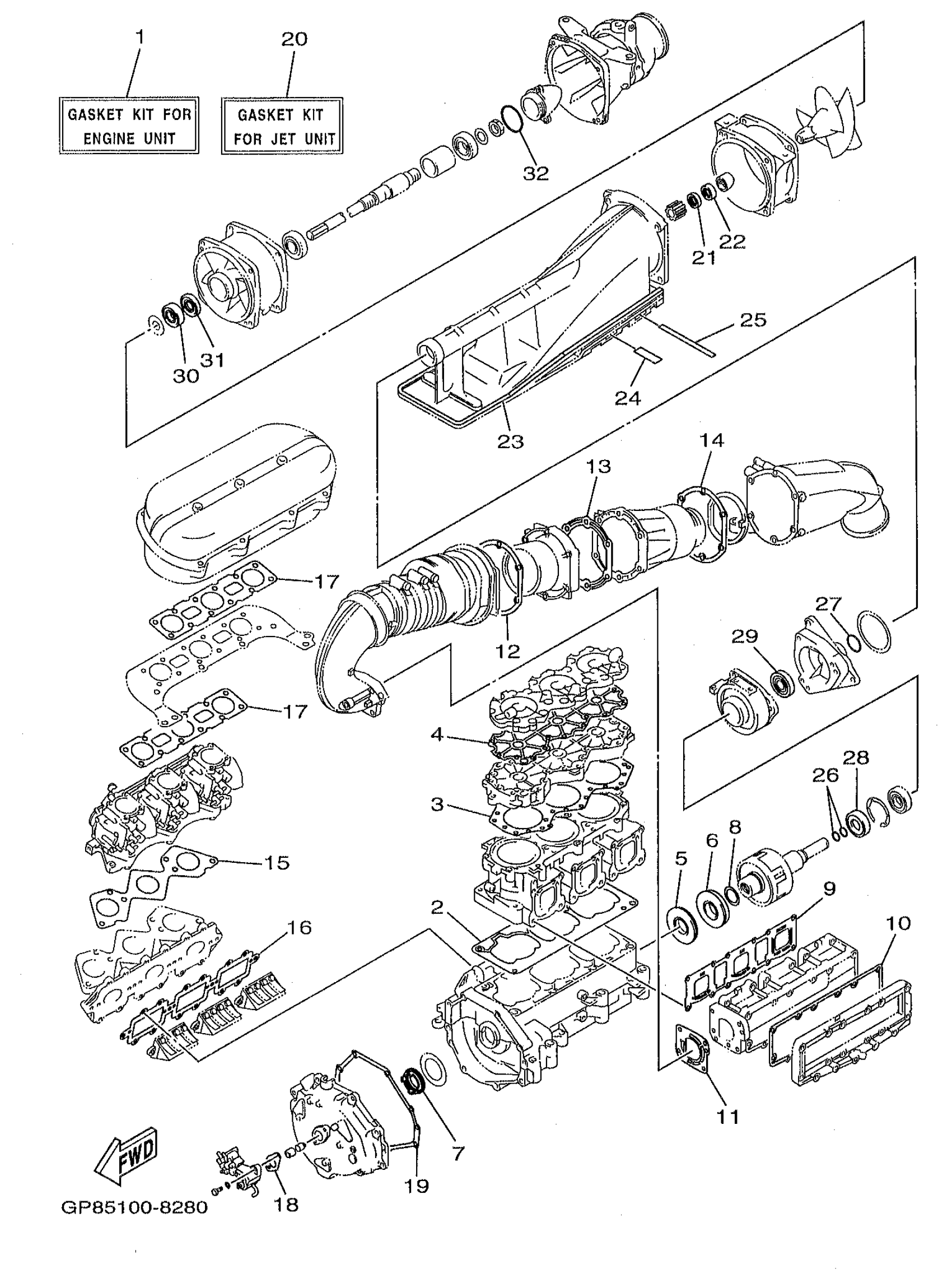

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 REPAIR KIT 1 Diagram
#
1
GASKET KIT ENGINE UNIT
65U-W0001-00-00
Unavailable
2
GASKET, CYLINDER
63M-11351-01-00
Unavailable
3
GASKET, CYLINDER HEAD 1
65U-11181-01-00
Unavailable
4
GASKET, HEAD COVER 1
63M-11193-01-00
Unavailable
5
. OIL SEAL
93102-36M33-00
Unavailable
6
. OIL SEAL
93101-36M46-00
Unavailable
7
. OIL SEAL
93103-32M01-00
Unavailable
8
SEAL
62T-45127-01-00
Unavailable
9
GASKET, EXHAUST PIPE
65U-14613-01-00
Unavailable
10
GASKET, MUFFLER DAMPER 1
63M-14739-00-00
Unavailable
11
GASKET, MUFFLER DAMPER 2
63M-14749-01-00
Unavailable
12
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
13
GASKET, EXHAUST INNER COVER
63M-41122-00-00
Unavailable
14
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
15
GASKET
65U-13556-00-00
Unavailable
16
GASKET
65U-13566-00-00
Unavailable
17
GASKET, AIR COOLER COVER 1
65U-13674-00-00
Unavailable
18
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
19
GASKET, HOLE COVER
63M-81365-00-00
Unavailable
20
GASKET KIT FOR JET UNIT
65U-W0001-20-00
Unavailable
21
OIL SEAL
93102-17M49-00
Unavailable
22
OIL SEAL
93102-17M50-00
Unavailable
23
. FELT, PACKING
6R8-51367-01-00
Unavailable
24
. FELT, PACKING
63M-51367-00-00
Unavailable
25
. FELT, PACKING
63M-51368-00-00
Unavailable
26
O-RING(6R7)
93210-17MA4-00
Unavailable
27
O-RING
93210-35M72-00
Unavailable
28
OIL SEAL(62T)
93101-25M55-00
Unavailable
29
OIL SEAL
93101-24001-00
Unavailable
30
OIL SEAL(6R7)
93102-25M34-00
Unavailable
31
OIL SEAL(6R7)
93101-25M50-00
Unavailable
32
. O-RING
93210-46M16-00
Unavailable
