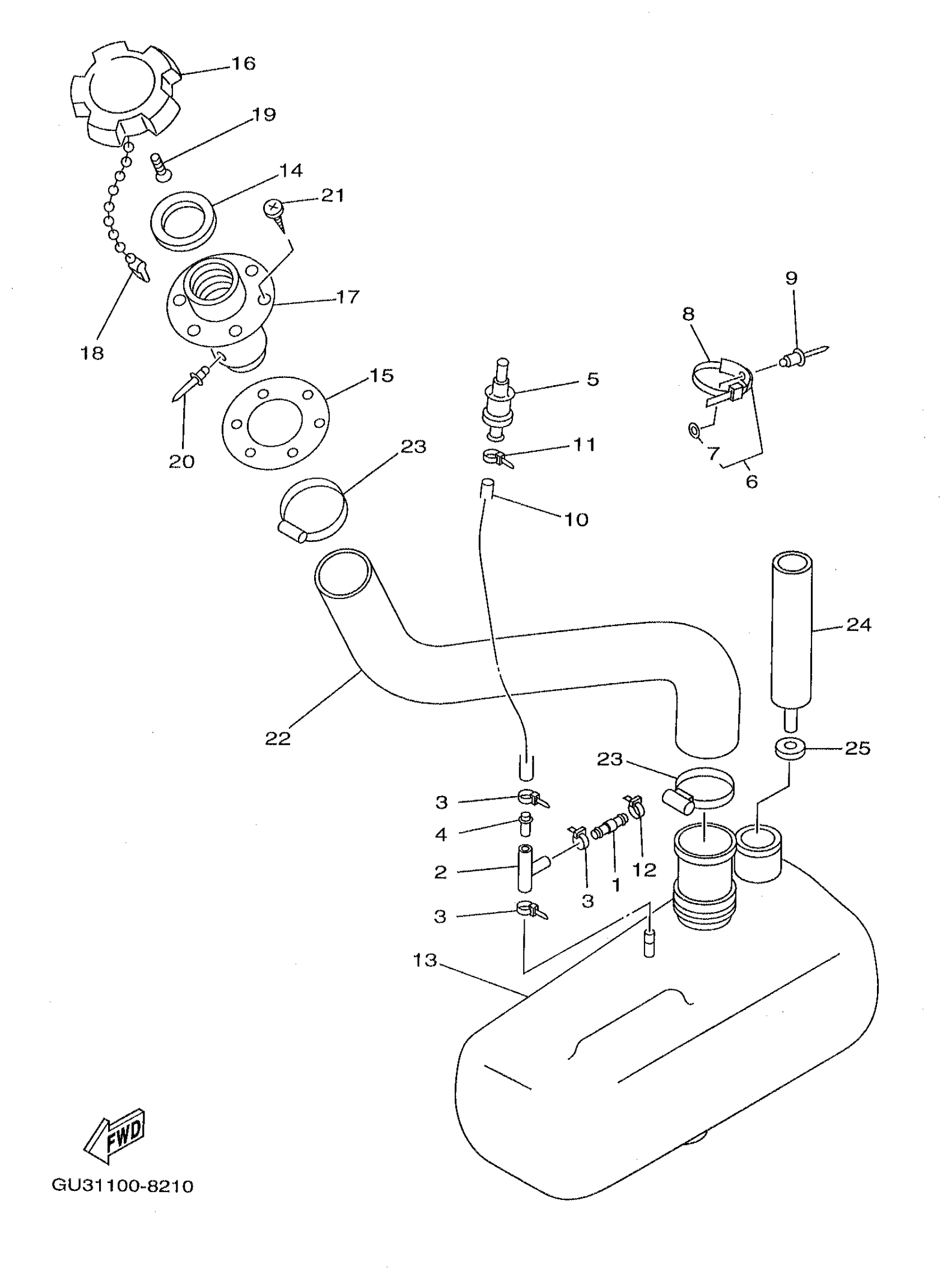

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 OIL TANK Diagram
#
Description
Price
1
JOINT
63M-13132-00-00
Unavailable
2
PIPE, JOINT 3
63M-24378-00-00
Unavailable
3
CLAMP
90465-10098-00
Unavailable
4
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
5
. ROLL OVER VALVE
FJ0-67766-00-00
Unavailable
7
. WASHER, PLAIN
90201-05925-00
Unavailable
8
BAND (EU0)
90601-20009-00
Unavailable
9
RIVET, BLIND
90267-48802-00
Unavailable
10
HOSE, AIR VENT 3
GJ3-U7856-20-00
Unavailable
11
CLAMP
90465-10098-00
Unavailable
12
CLAMP
90465-10098-00
Unavailable
13
TANK, OIL
GJ3-U775B-02-00
Unavailable
14
PACKING, OIL CAP
GJ3-U778C-00-00
Unavailable
15
PACKING, OIL FILLER
GJ3-U778E-00-00
Unavailable
16
CAP, OIL FILLER
GJ3-U778B-00-00
Unavailable
17
SOCKET, OIL FILLER
GJ3-U778D-00-00
Unavailable
18
CHAIN BALL
EU0-U7835-00-00
Unavailable
19
SCREW,TAPPING (EU0)
97780-40110-00
Unavailable
20
. RIVET, BLIND
90267-40935-00
Unavailable
21
SCREW, FLAT HEAD TAPPING
FX1-67869-00-00
Unavailable
22
HOSE, OIL FILLER
GU2-U776C-00-00
Unavailable
23
BAND, HOSE 52
90601-152U3-00
Unavailable
24
STRAINER, OIL
6J8-13411-00-00
Unavailable
25
GASKET, STRAINER COVER
6J8-13414-00-00
Unavailable
