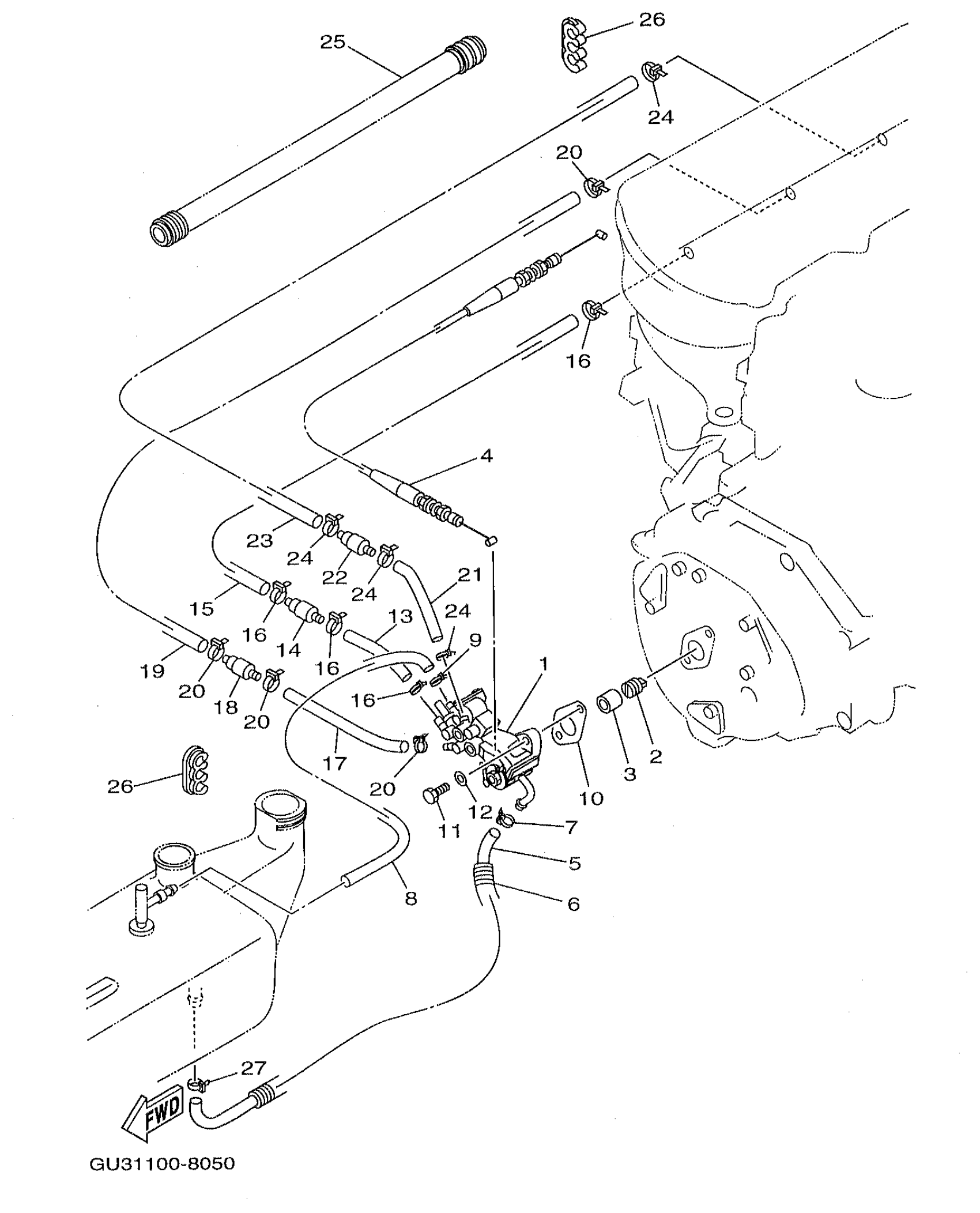

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSEMBLY

65U-13200-00-00

Unavailable

2

JOINT

65U-13132-00-00

$48.47

3

RING, RUBBER

65U-13554-00-00

Unavailable

4

PUMP CABLE ASSEMBLY

65U-26320-00-00

Unavailable

5

HOSE (L700)

90445-117F2-00

$22.86

6

HOSE

90446-17M75-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

HOSE (L770)

90445-07006-00

$24.46

9

CLAMP

90465-10098-00

$1.68

10

GASKET, PUMP CASE

63M-13116-00-00

$2.80

11

BOLT(7U8)

97080-06020-00

$3.63

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

HOSE(62T)

90446-07M48-00

Unavailable

14

VALVE, CHECK

6R3-13183-10-00

$39.61

15

HOSE(62T)

90446-07M48-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

HOSE(62T)

90446-07M48-00

Unavailable

18

VALVE, CHECK

6R3-13183-10-00

$39.61

19

HOSE(62T)

90446-07M48-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

HOSE(62T)

90446-07M48-00

Unavailable

22

VALVE, CHECK

6R3-13183-10-00

$39.61

23

HOSE

90446-07M74-00

Unavailable

24

CLAMP

90465-10098-00

$1.68

25

HOSE

90446-24M83-00

Unavailable

26

CLAMP

90464-07M05-00

$2.80

27

CLAMP

90465-10098-00

$1.68
