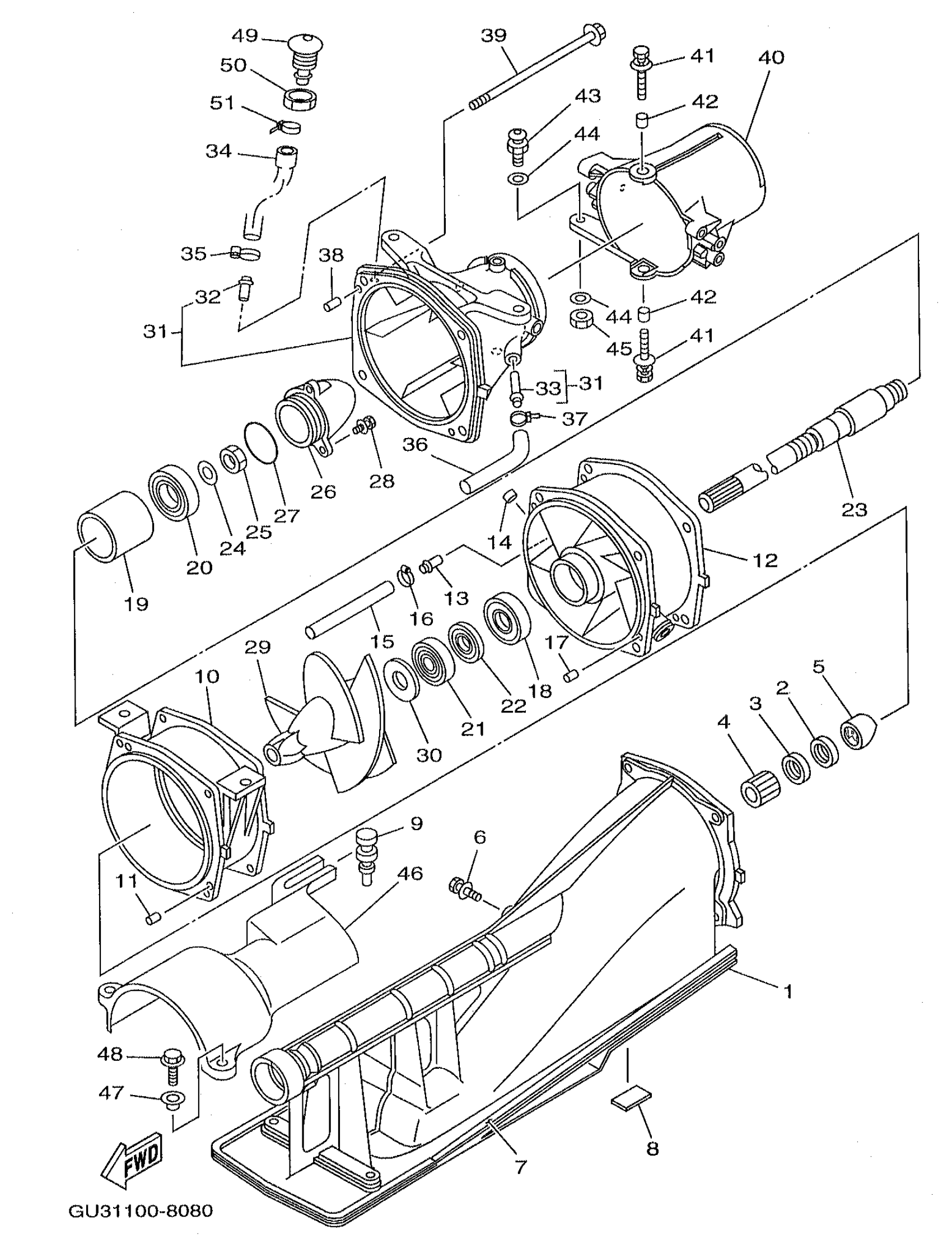

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 JET UNIT 1 Diagram
#
Description
Price
1
DUCT, INTAKE
65U-R1311-00-00
Unavailable
3
OIL SEAL
93102-17M50-00
Unavailable
5
SPACER
65U-R1348-01-00
Unavailable
10
HOUSING, IMPELLER
63M-51312-02-94
Unavailable
12
DUCT, IMPELLER
63M-51315-02-00
Unavailable
13
NIPPLE
65A-R1129-10-00
Unavailable
18
BEARING (6K8)
93306-205U1-00
Unavailable
21
OIL SEAL(6R7)
93102-25M34-00
Unavailable
22
OIL SEAL(6R7)
93101-25M50-00
Unavailable
23
SHAFT, DRIVE
65U-45511-00-00
Unavailable
24
958-58204-00 WASHER,PLAIN
92990-16200-00
Unavailable
26
CAP KIT
65A-R1326-10-KT
Unavailable
29
IMPELLER
66F-R1321-00-00
Unavailable
31
NOZZLE
65R-R1318-00-00
Unavailable
32
. NIPPLE
65A-R1129-00-00
Unavailable
33
NIPPLE,HOSE
65A-R1334-01-00
Unavailable
36
HOSE (L380)
90445-14M25-00
Unavailable
39
BOLT,WASHER BASED
90105-088D7-00
Unavailable
40
NOZZLE,DEFLECTOR
65R-R1313-01-00
Unavailable
44
WASHER,PLATE
90201-068M4-00
Unavailable
45
NUT(650)
95380-06700-00
Unavailable
46
COVER
65A-R1381-00-00
Unavailable
