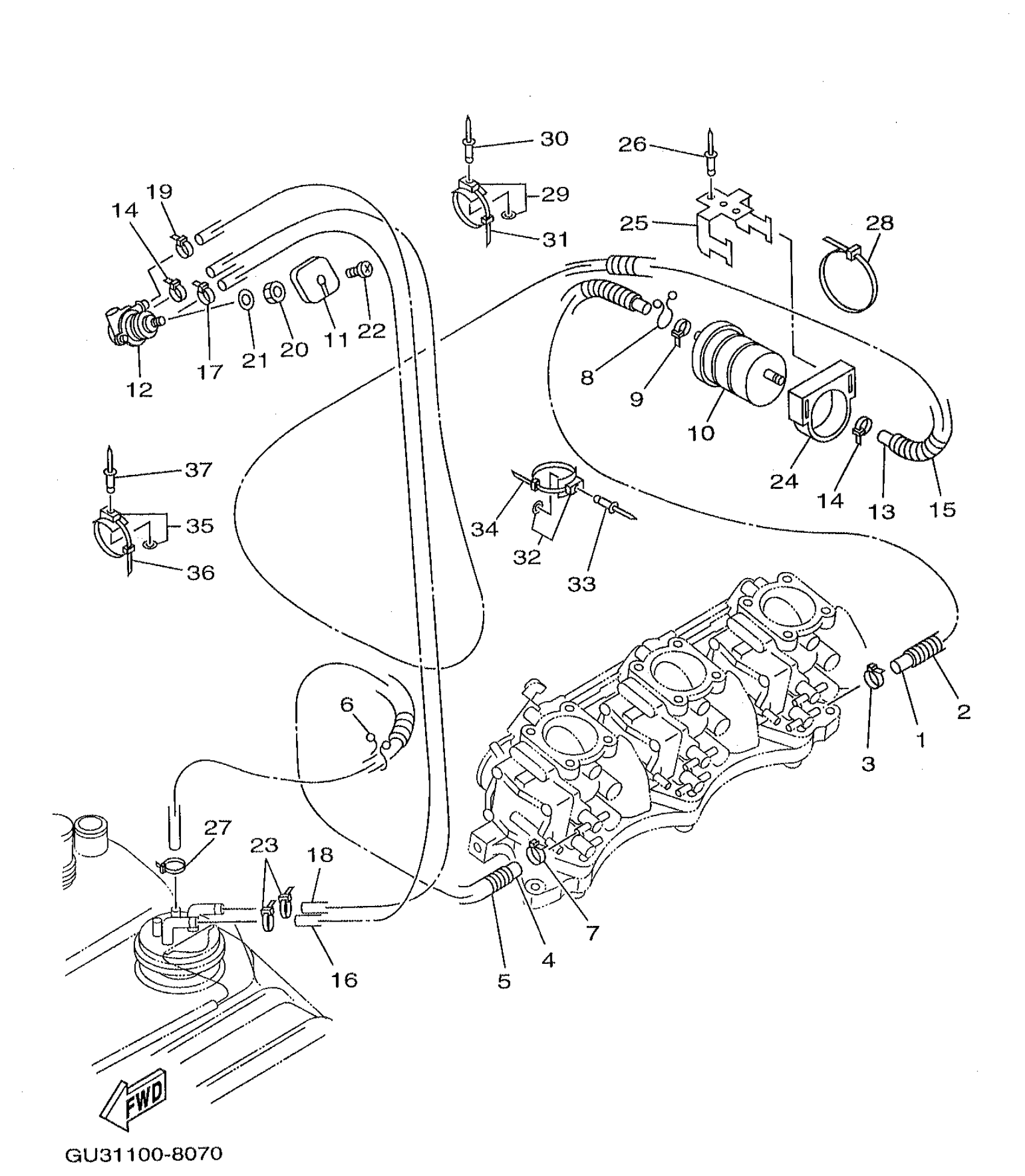

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 FUEL Diagram

#

Description
Price

1

HOSE

90445-10ME2-00

Unavailable

2

HOSE

90446-14M28-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

HOSE (L1040)

90445-10MA9-00

$56.27

5

HOSE

90446-14M84-00

Unavailable

6

CLAMP

90465-18147-00

$5.39

7

CLAMP

90465-10098-00

$1.68

8

CLAMP

90465-18147-00

$5.39

9

CLAMP

90465-10098-00

$1.68

10

FILTER ASSY

6K8-24560-21-00

$28.64

11

LEVER, COCK

6R7-24524-00-00

$7.03

12

FUEL COCK ASSY 1

65U-24500-02-00

Unavailable

13

HOSE (L1700)

90445-10M87-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

HOSE(64T)

90446-14M62-00

$5.98

16

HOSE (L1040)

90445-10MA9-00

$56.27

17

CLAMP

90465-10098-00

$1.68

18

HOSE (L1040)

90445-10MA9-00

$56.27

19

CLAMP

90465-10098-00

$1.68

20

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

21

WASHER, PLATE

90202-229U1-00

$14.35

22

SCREW, BIND

98980-04008-00

$3.05

23

CLAMP

90465-10098-00

$1.68

24

HOLDER

EU0-67817-00-00

$13.33

25

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

26

RIVET (EU0)

90267-48938-00

$5.00

27

BAND (EU0)

90601-20009-00

$6.36

28

CLAMP

90465-10098-00

$1.68

29

CLAMP COMP (EU0)

90600-91736-00

Unavailable

30

RIVET, BLIND

90267-48802-00

$1.98

31

BAND (EU0)

90601-20009-00

$6.36

32

CLAMP COMP (EU0)

90600-91736-00

Unavailable

33

RIVET, BLIND

90267-48802-00

$1.98

34

BAND (EU0)

90601-20009-00

$6.36

35

CLAMP COMP (EU0)

90600-91736-00

Unavailable

36

BAND (EU0)

90601-20009-00

$6.36

37

RIVET, BLIND

90267-48802-00

$1.98
