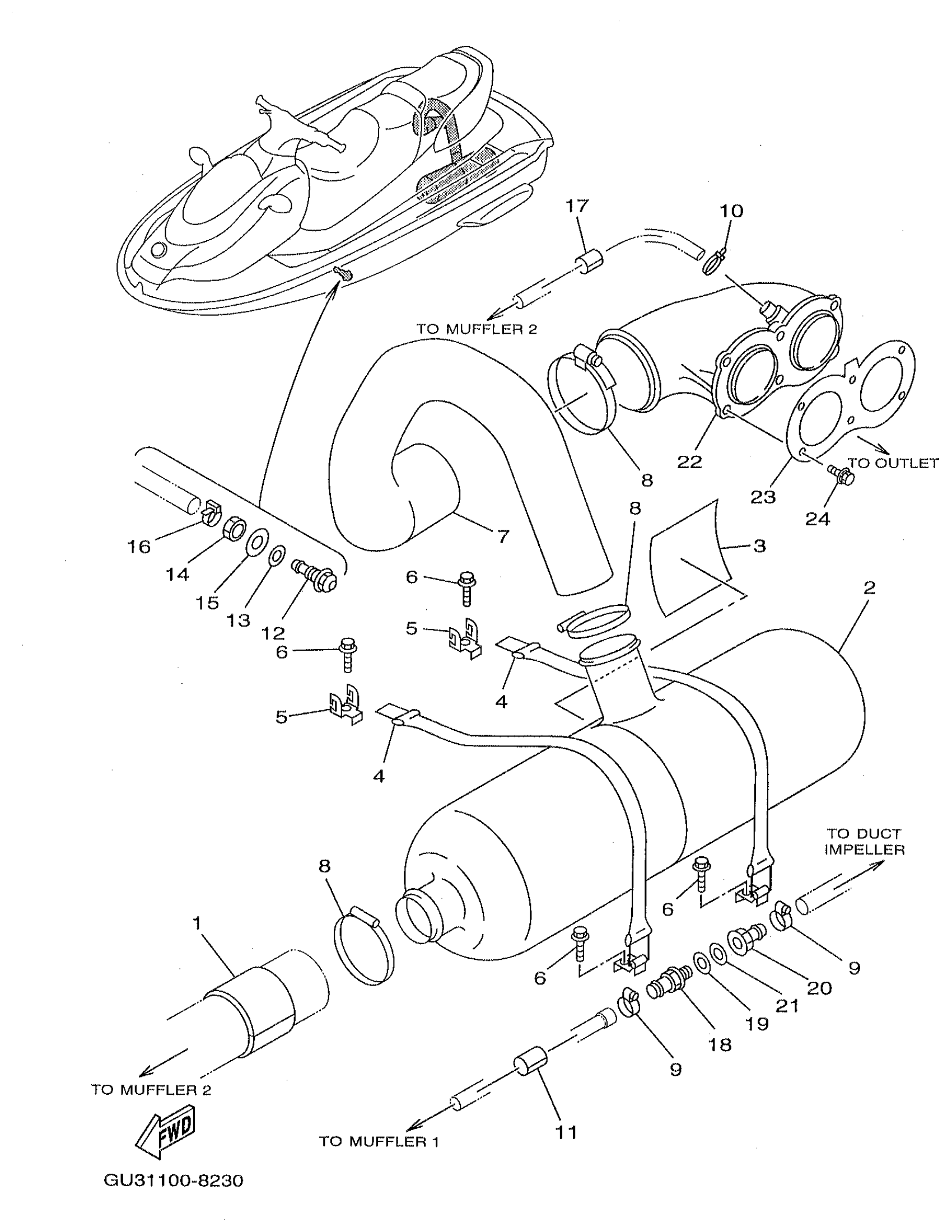

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 EXHAUST 2 Diagram
#
Description
Price
1
PACKING, HOSE 1
GJ1-67577-00-00
Unavailable
2
WATER LOCK BOX
GH3-U7550-00-00
Unavailable
3
MAT,WATER LOCK
GJ3-U755J-00-00
Unavailable
4
C HOOK COMP.
GJ3-U7570-00-00
Unavailable
5
HOOK A
EW2-65772-00-00
Unavailable
6
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
7
HOSE
GH3-U7555-00-00
Unavailable
8
BAND, HOSE 95
90601-195UD-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
BAND, HOSE 18
90601-118UF-00
Unavailable
11
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
12
PILOT, WATER
GJ1-6753B-02-00
Unavailable
13
PACKING
GP3-U1438-00-00
Unavailable
14
NUT
GP7-61652-00-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
18
THROUGH-HULL CONNECTION 3/8"
90604-80793-00
Unavailable
19
GASKET(GJ1)
90430-16910-00
Unavailable
20
THROGUH-HULL CONNECTION 3/8
90604-80794-00
Unavailable
21
GASKET(GJ1)
90430-16910-00
Unavailable
22
EXHAUST, THRU-HALL COMP.
GJ1-U7560-00-00
Unavailable
23
PACKING
GJ1-U7525-00-00
Unavailable
24
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
