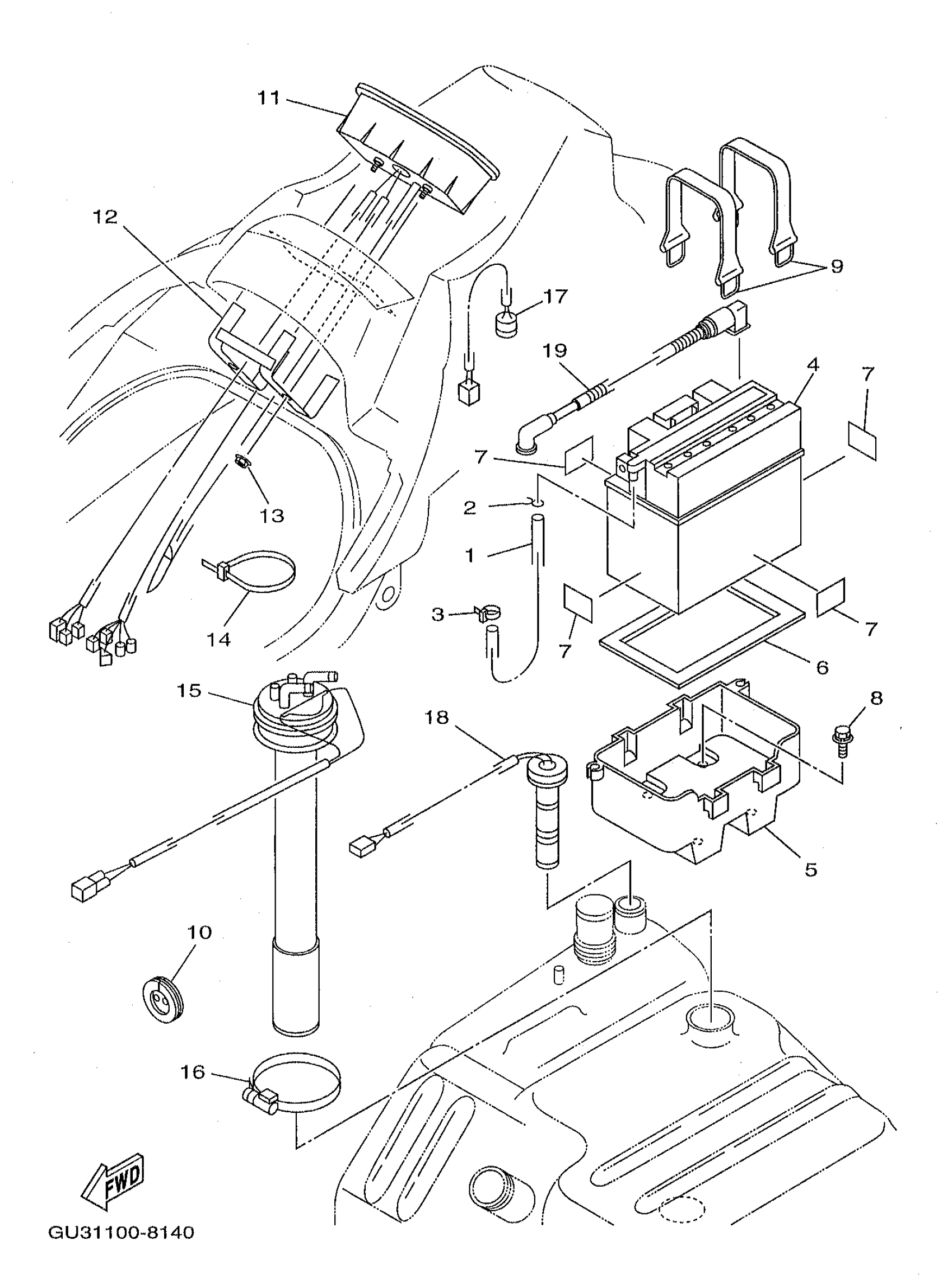

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 ELECTRICAL 2 Diagram

#

Description
Price

1

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

2

CLIP

90467-089U1-00

Unavailable

3

CLAMP

90600-91060-00

Unavailable

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

Unavailable

7

PAD, BATTERY

EU0-U8221-31-00

$2.99

8

BOLT, WITH WASHER

90119-069US-00

Unavailable

9

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

10

GROMMET

FJ0-68222-01-00

Unavailable

11

METER ASSY

GP8-6820A-26-00

Unavailable

12

BRACKET, METER

GP7-68238-10-00

Unavailable

13

NUT, FLANGE

95720-05300-00

Unavailable

14

BAND (EU0)

90601-20009-00

Unavailable

15

SENDER, FUEL

F0V-U824B-04-00

Unavailable

16

BAND, HOSE 62

90601-162U5-00

Unavailable

17

BUZZER

GP7-U8341-00-00

Unavailable

18

SENDER, OIL

F0D-U824C-21-00

Unavailable

19

WIRE, LEAD

63N-82117-00-00

Unavailable
