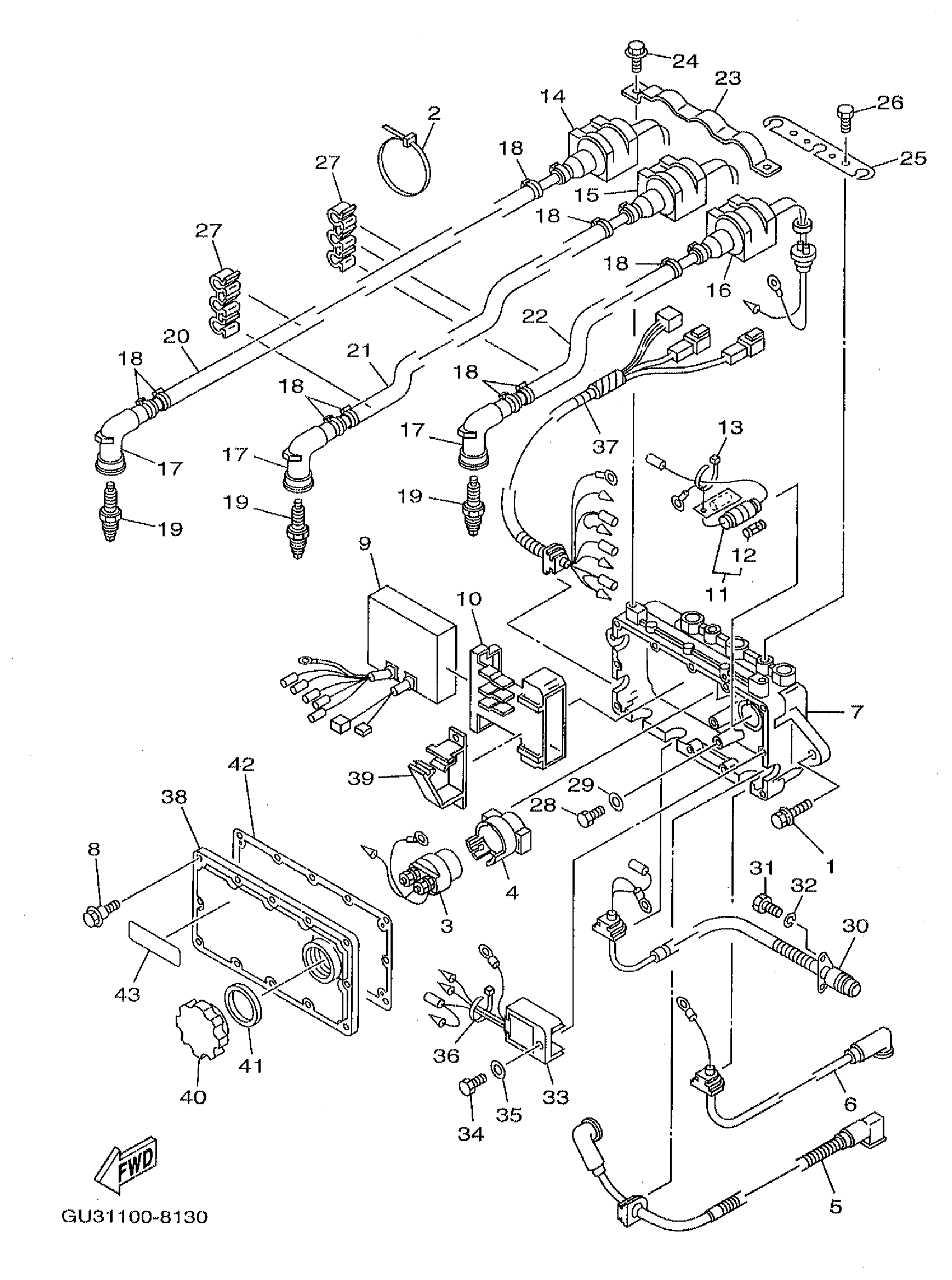

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08907-00

$5.45

2

BAND (EU0)

90601-20009-00

$6.36

3

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

4

HOLDER, RELAY

6M6-81952-01-00

Unavailable

5

WIRE, LEAD

66F-82117-10-00

Unavailable

6

WIRE, LEAD

6M6-82117-21-00

Unavailable

7

HOUSING

65U-8552A-00-94

Unavailable

8

BOLT

90109-05MA0-00

$9.64

9

C.D.I. UNIT

65U-85540-00-00

Unavailable

10

BAND

65U-85546-00-00

Unavailable

11

FUSE HOLDER ASSY

65U-82150-00-00

Unavailable

12

FUSE (10A)

1E6-82151-00-00

$5.80

13

CLAMP

90465-10098-00

$1.68

14

IGNITION COIL ASSY

65U-85570-00-00

Unavailable

15

IGNITION COIL ASSY

65U-85570-10-00

Unavailable

16

IGNITION COIL ASSY

65U-85570-20-00

$145.44

17

PLUG CAP ASSY

63M-82370-01-00

$66.49

18

CLAMP

90465-10098-00

$1.68

19

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

20

TUBE, CORD

63M-82351-00-00

$13.40

21

TUBE, CORD

65U-82351-00-00

Unavailable

22

TUBE, CORD

65U-82351-10-00

Unavailable

23

BRACKET

65U-85542-00-00

$38.99

24

BOLT, WITH WASHER

97513-08516-00

Unavailable

25

COVER

65U-85525-00-00

Unavailable

26

BOLT(GH1)

97080-06012-00

$2.56

27

CLAMP, CORD

65U-81317-10-00

$7.27

28

BOLT(GH1)

97080-06012-00

$2.56

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

THERMOSWITCH ASSEMBLY

65U-82560-00-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, SPRING

92995-06100-00

$2.95

33

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

$121.41

34

BOLT(7U8)

97080-06020-00

$3.63

35

WASHER, PLAIN (646)

92990-06600-00

Unavailable

36

CLAMP

90465-10098-00

$1.68

37

EXTENSION, WIRE LEAD

66F-82553-00-00

Unavailable

38

COVER, CASE

65U-8552E-00-00

Unavailable

39

CLAMP

90464-06M29-00

$6.36

40

CAP

6M6-8132W-00-00

$14.38

41

GASKET

6M6-81844-00-00

$10.99

42

GASKET, TERMINAL

65U-81921-00-00

$68.17

43

MARK 3

6R7-83623-40-00

$7.27
