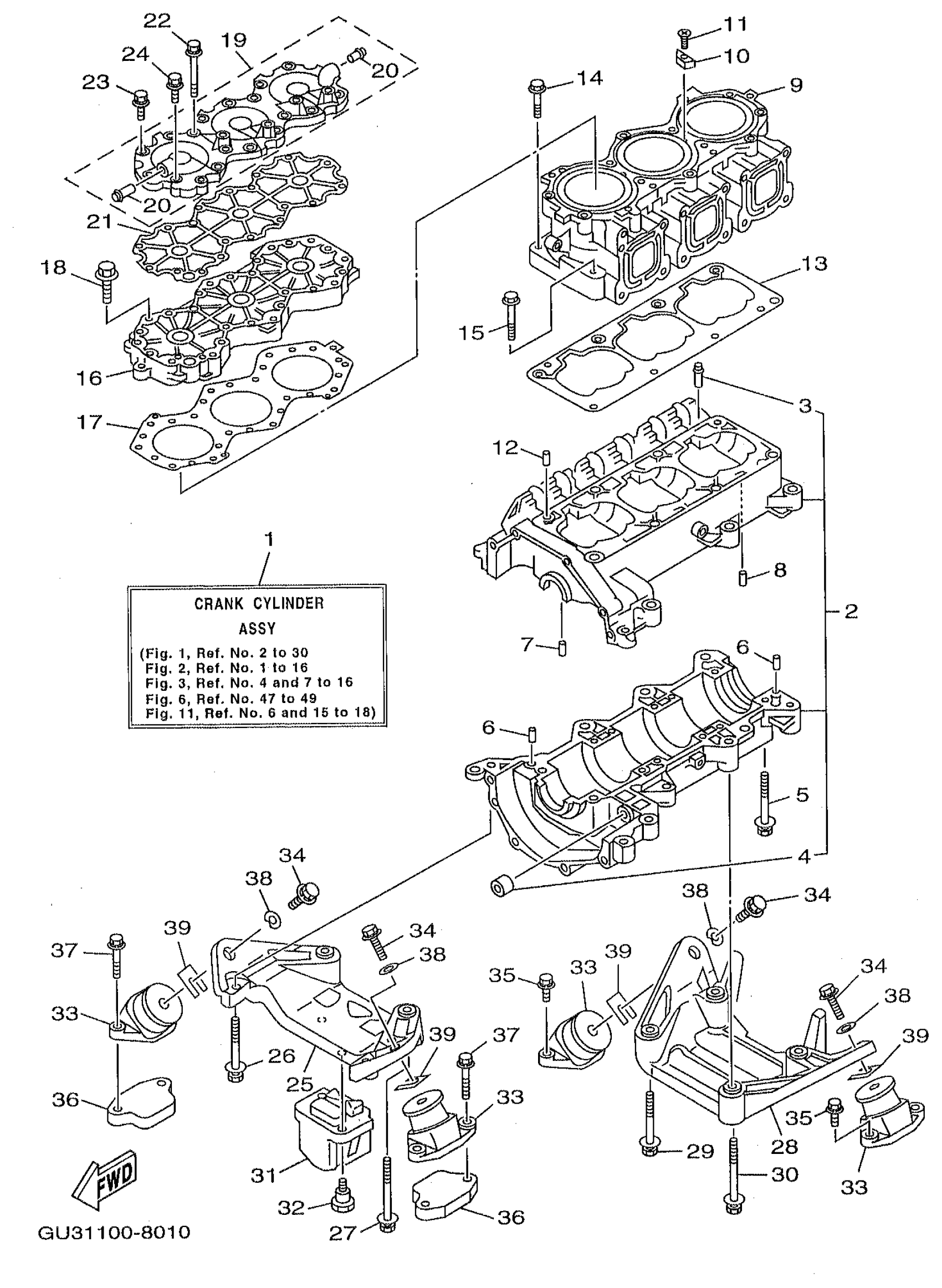

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

65U-W0090-03-8S

Unavailable

2

CRANKCASE ASSY

65U-15100-00-00

$1,110.59

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

PIN (2H7)

93603-10049-00

Unavailable

8

PIN, DOWEL (8H1)

93604-07141-00

$1.29

9

CYLINDER 1

65U-11311-00-8S

$1,337.86

10

ANODE

6E5-11325-00-00

$4.08

11

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

12

PIN, DOWEL (614)

93606-12019-00

$3.05

13

GASKET, CYLINDER

63M-11351-01-00

$31.57

14

BOLT, WITH WASHER

90119-10M56-00

$10.24

15

BOLT (6F5)

90119-10M07-00

$4.21

16

HEAD, CYLINDER 1

65U-11111-00-8S

Unavailable

17

GASKET, CYLINDER HEAD 1

65U-11181-01-00

$125.74

18

BOLT, WITH WASHER

90119-08019-00

$4.79

19

COVER, CYLINDER HEAD 1

63M-11191-00-8S

Unavailable

20

. NIPPLE

6K8-51129-00-00

$9.62

21

GASKET, HEAD COVER 1

63M-11193-01-00

$53.99

22

BOLT, WITH WASHER

90119-08015-00

$2.79

23

BOLT, WITH WASHER(64T)

97513-08630-00

Unavailable

24

BOLT, W/WASHER

97513-06630-00

Unavailable

25

BRACKET, FRONT UPPER 1

63M-21415-03-00

$366.65

26

BOLT, WITH WASHER

90119-10M23-00

$10.24

27

BOLT, WITH WASHER

90119-10M72-00

$5.55

28

BRACKET, REAR UPPER 1

63M-21425-01-00

$313.62

29

BOLT, WITH WASHER

90119-10M23-00

$10.24

30

BOLT, WITH WASHER

90119-10M03-00

$9.08

31

STOPPER, UPPER MOUNT

66F-44532-00-00

Unavailable

32

BOLT(62Y)

90109-06M30-00

Unavailable

33

MOUNT RUBBER

6M6-44517-A2-94

$90.89

34

BOLT, WITH WASHER

90119-089UT-00

$3.16

35

BOLT, WITH WASHER

90119-089U1-00

$3.23

36

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

37

BOLT, WITH WASHER

90119-08856-00

$5.17

38

PLATE

EU0-67324-00-00

$8.14

39

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

39

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

39

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

39

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

39

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
