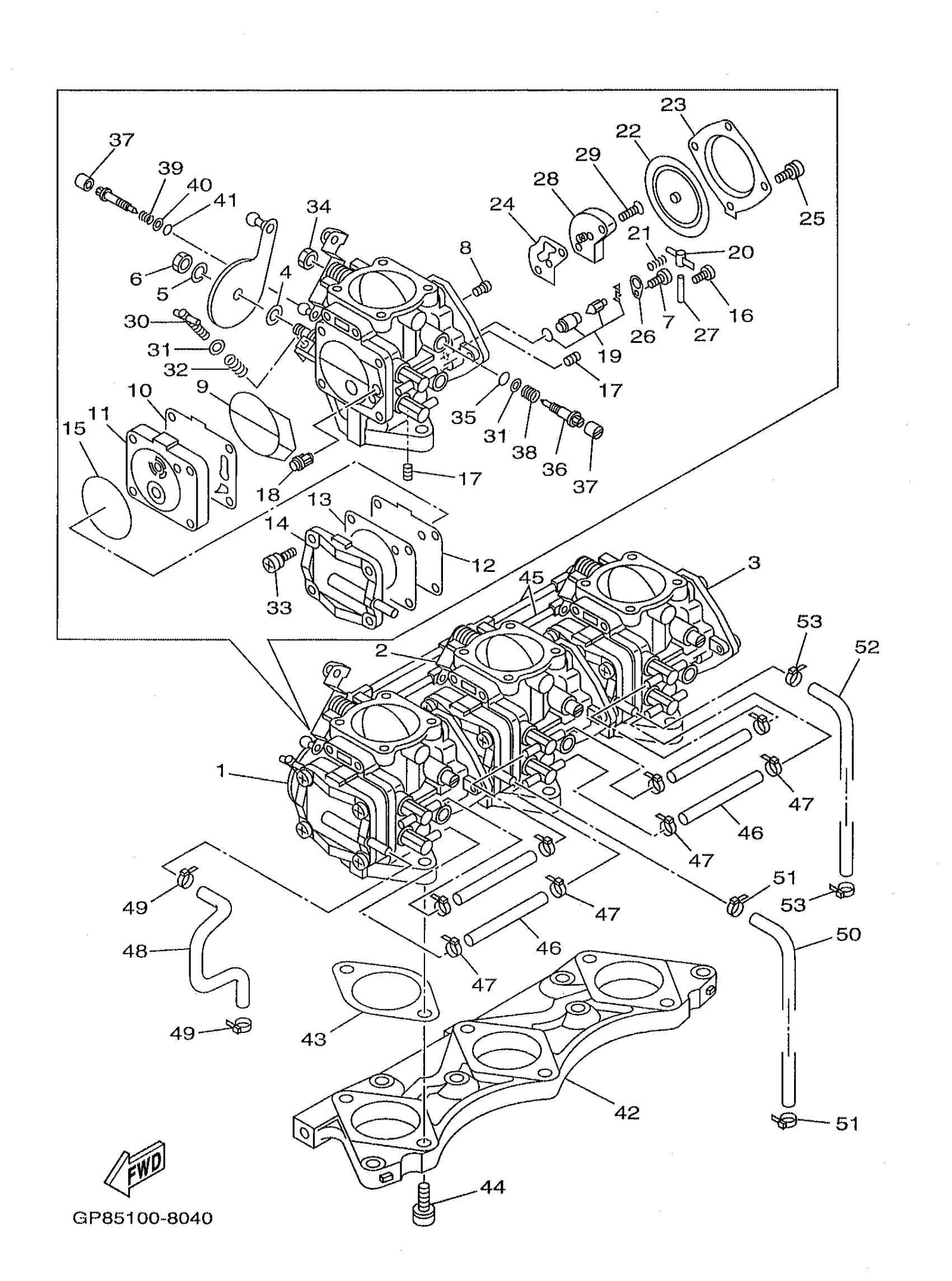

Yamaha XL1200W (WAVE RUNNER XL1200) 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

65U-14301-01-00

Unavailable

2

CARBURETOR ASSY 2

65U-14302-01-00

$899.98

3

CARBURETOR ASSY 3

65U-14303-01-00

Unavailable

4

. COLLAR

6K8-14534-10-00

$19.68

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

. NUT

95380-08700-00

$3.05

7

. SCREW

6M6-14503-00-00

$5.55

8

JET, MAIN (#135)

3G2-14231-27-00

$9.88

9

. O-RING

6K8-14564-00-00

$8.51

10

. DIAPHRAGM

6K8-24411-20-00

$29.63

11

BODY 2

6M6-24413-02-00

$45.81

12

. VALVE, CHECK

6K8-24421-10-00

$24.44

13

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

14

. COVER

6K8-24452-10-00

Unavailable

15

. O-RING

6K8-14563-00-00

Unavailable

16

. SCREW

6K8-14503-02-00

Unavailable

17

. SCREW

6K8-14521-10-00

$34.49

18

. STRAINER

6R7-14569-00-00

$11.48

19

NEEDLE

64T-14916-01-00

$49.49

20

. ARM, FLOAT

6K8-14547-01-00

$8.26

21

. SPRING

63M-14253-00-00

Unavailable

22

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

23

. BODY, PUMP 1

6R7-14542-00-00

$56.05

24

. GASKET

6K8-14536-11-00

$8.14

25

. SCREW

6K8-14591-10-00

$4.57

26

. PLATE

6K8-14527-11-00

$11.35

27

. PIN, FLOAT

439-14186-00-00

$12.49

28

. BODY 1

6R7-24412-01-00

$23.36

29

SCREW, STOP

6K8-14523-12-00

Unavailable

30

SCREW,ADJUST

6M6-14521-01-00

Unavailable

31

WASHER,NEEDLE

812-14235-00-00

$2.44

32

. SPRING, THROTTLE STOP

47X-14133-00-00

$3.18

33

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

34

. NUT

95382-06700-00

Unavailable

35

. O-RING

6K8-14562-00-00

$1.88

36

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

37

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

38

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

39

. SPRING

6K8-14589-00-00

$3.70

40

WASHER, NEEDLE

822-14235-00-00

Unavailable

41

O-RING

583-14561-00-00

Unavailable

42

PLATE

65U-14243-00-00

Unavailable

43

GASKET

64X-14398-00-00

$28.52

44

BOLT, HOLDING

64X-14162-00-00

Unavailable

45

ROD, ACCEL LEVER

65U-41217-00-00

Unavailable

46

HOSE

90445-10MA7-00

Unavailable

47

CLAMP

90465-10098-00

$1.68

48

PIPE 5

65U-24315-01-00

$11.99

49

CLAMP

90465-10098-00

$1.68

50

PIPE 4

65U-24314-01-00

$4.81

51

CLAMP

90465-10098-00

$1.68

52

PIPE 4

65U-24314-01-00

$4.81

53

CLAMP

90465-10098-00

$1.68
