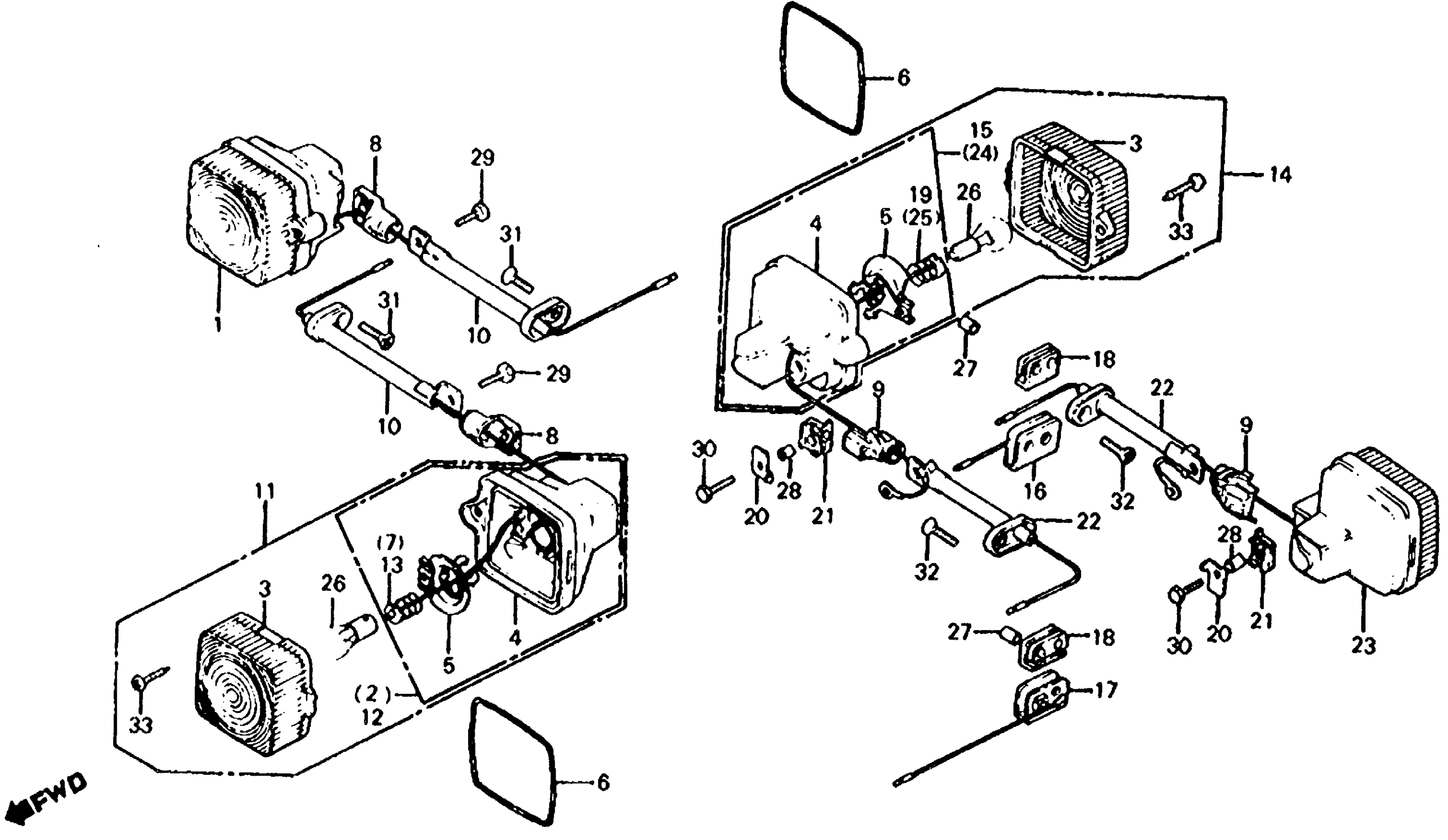

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 TURN SIGNAL 79-80 Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR.

33400-174-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-174-771.

33400-174-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-174-772.

33400-174-406

Unavailable

2

BASE, R. FR. TURN SIGNAL

33401-174-771

Unavailable

3

LENS, TURN SIGNAL This part replaces 33402-195-013.

33402-195-023

$8.74

3

LENS, TURN SIGNAL

33402-195-023

$8.74

6

GASKET, TURN SIGNAL LENS | (Optional).

33407-166-611

$5.78

8

COVER, TURN SIGNAL STAY

33425-174-770

$5.23

9

COVER, TURN SIGNAL STAY

33425-437-711

Unavailable

10

STAY, FR. TURN SIGNAL (NOT AVAILABLE)

33441-126-870

Unavailable

11

TURN SIGNAL ASSY., L. FR.

33400-174-406

Unavailable

11

TURN SIGNAL ASSY., R. FR. This part replaces 33450-174-771.

33400-174-406

Unavailable

11

TURN SIGNAL ASSY., R. FR. This part replaces 33450-174-772.

33400-174-406

Unavailable

12

BASE,L FR WINKER This part replaces 33451-174-771.

33401-174-405

Unavailable

14

TURN SIGNAL, R. RR. This part replaces 33600-KA8-719.

33600-KA8-406

Unavailable

14

TURN SIGNAL, R. RR. This part replaces 33600-KA8-710.

33600-KA8-406

Unavailable

15

BASE, R. RR. TURN SIGNAL

33601-437-710

Unavailable

16

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-419-670

Unavailable

17

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33605-419-670

Unavailable

18

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.98

20

WASHER, TURN SIGNAL MOUNT

33611-437-710

Unavailable

21

RUBBER, TURN SIGNAL MOUNT (NOT AVAILABLE)

33612-437-710

Unavailable

22

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33615-195-770

Unavailable

23

TURN SIGNAL, R. RR. This part replaces 33650-KA8-710.

33600-KA8-406

Unavailable

24

BASE, L. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33651-437-710.

33450-437-711

Unavailable

26

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

27

COLLAR A, RR. FENDER

80108-061-010

$4.12

28

COLLAR (7.5X6.8)

90501-437-710

$2.56

29

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

29

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

29

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

30

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

30

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

31

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

32

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.49

32

SCREW, OVAL (6X25)

93700-06025-0A

$1.49

32

SCREW, OVAL (6X25) This part replaces 93700-06025-1A.

93700-06025-0A

$1.49

33

SCREW, TAPPING (4X16)

93901-14480

Unavailable
