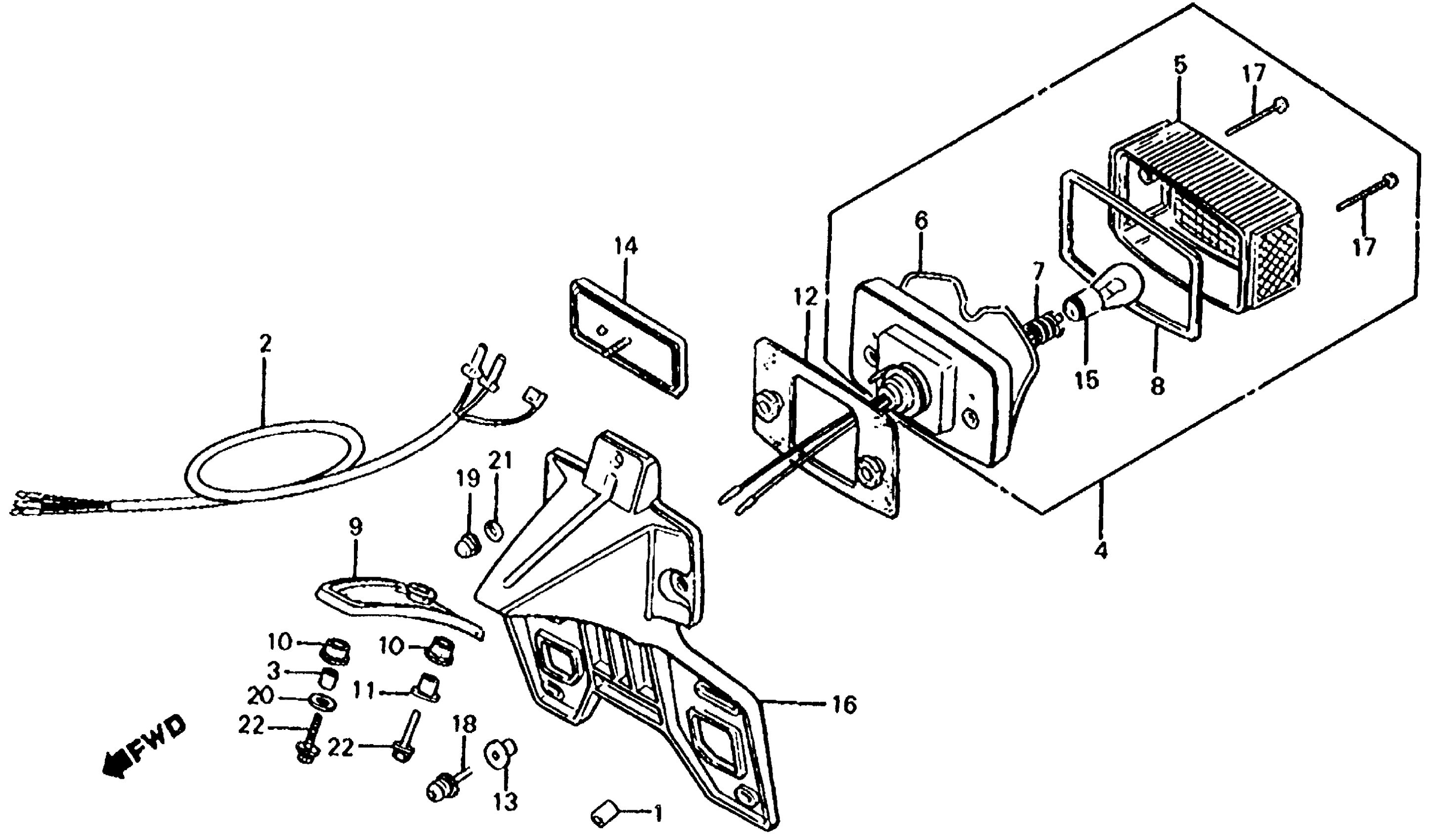

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 TAILLIGHT 83-85 Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$10.56

2

SUB-WIRE HARNESS A

32101-GC5-000

Unavailable

3

COLLAR A, TURN SIGNAL SET

33646-GB2-721

Unavailable

4

TAILLIGHT UNIT (NOT AVAILABLE)

33701-KA8-711

Unavailable

5

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

6

BASE, TAILLIGHT

33703-MC4-671

Unavailable

7

CABLE, TAILLIGHT

33708-147-003

Unavailable

8

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

9

RUBBER, BASE SEAT

33712-KG1-000

Unavailable

10

RUBBER, TAILLIGHT BRACKET

33714-KR5-000

Unavailable

10

RUBBER, TAILLIGHT BRACKET This part replaces 33714-MC4-610.

33714-KR5-000

Unavailable

11

COLLAR, TAILLIGHT SETTING

33715-KA8-710

Unavailable

12

GASKET, TAILLIGHT

33718-KB7-003

Unavailable

13

COLLAR, TAILLIGHT GASKET

33719-KB7-000

Unavailable

14

REFLECTOR, REFLEX | Use up to Frame SN FK403132 This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

14

REFLECTOR, REFLEX | Use up to Frame SN FK403132

33741-MC7-612

$14.43

14

REFLECTOR, REFLEX

33741-MC7-612

$14.43

15

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

16

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

17

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

18

SCREW-WASHER (5X25)

93893-05025-00

Unavailable

19

NUT, CAP (5MM)

94021-05020-0S

$1.49

20

WASHER, PLAIN (6MM)

94103-06000

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

22

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
