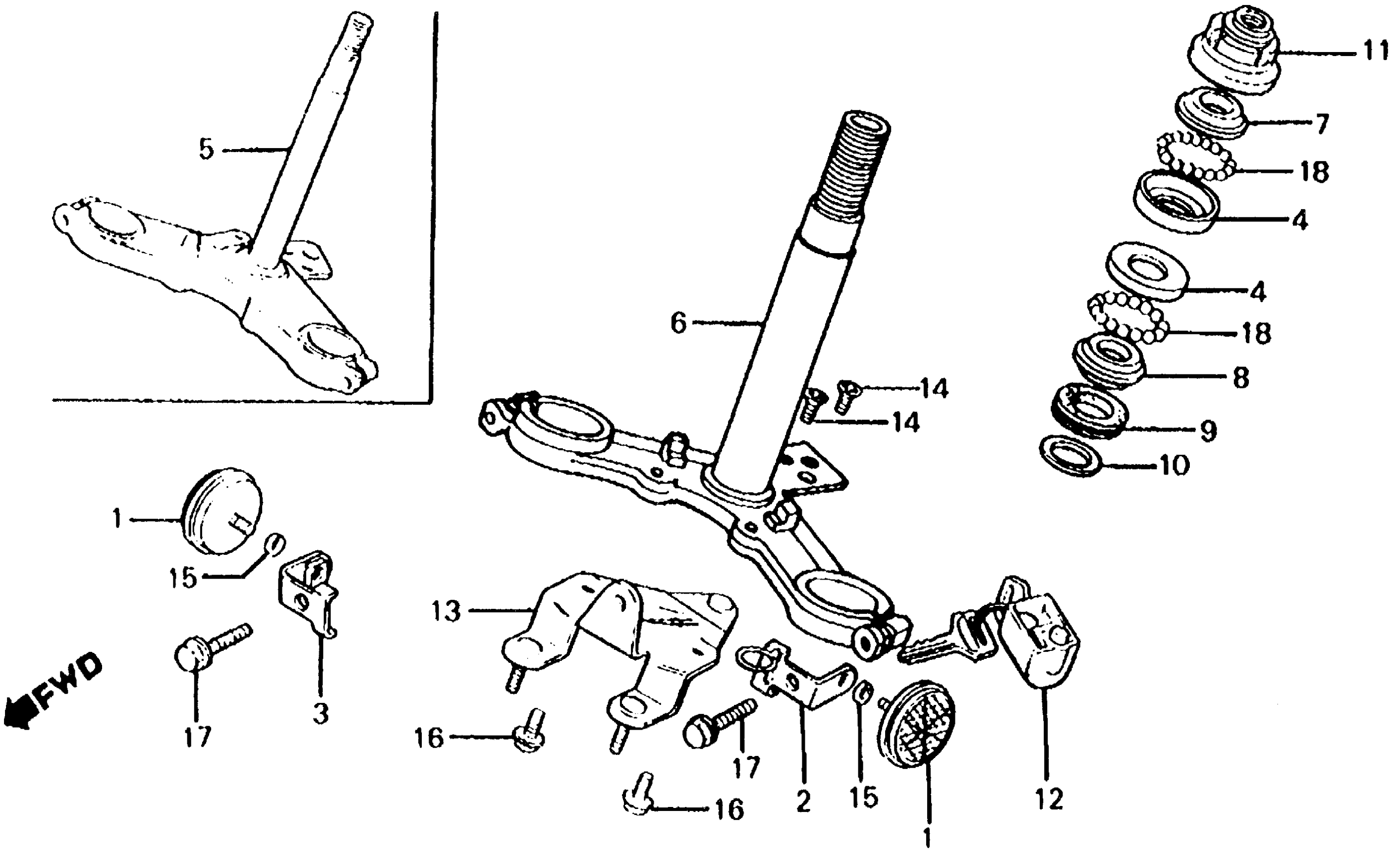

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 STEERING STEM 83-85 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

2

STAY, FR. REFLECTOR

33742-KA8-710

Unavailable

3

STAY, FR. REFLECTOR (NOT AVAILABLE)

33742-166-670

Unavailable

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING TOP BALL

50301-041-010

$12.39

6

STEM, STEERING (NOT AVAILABLE)

53200-166-000

Unavailable

7

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

7

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

9

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

10

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

11

THREAD, STEERING HEAD TOP

53220-167-000

$18.84

12

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

13

STAY, FR. FENDER *NH1* (BLACK)

61102-KA8-710ZA

Unavailable

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

17

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

18

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
