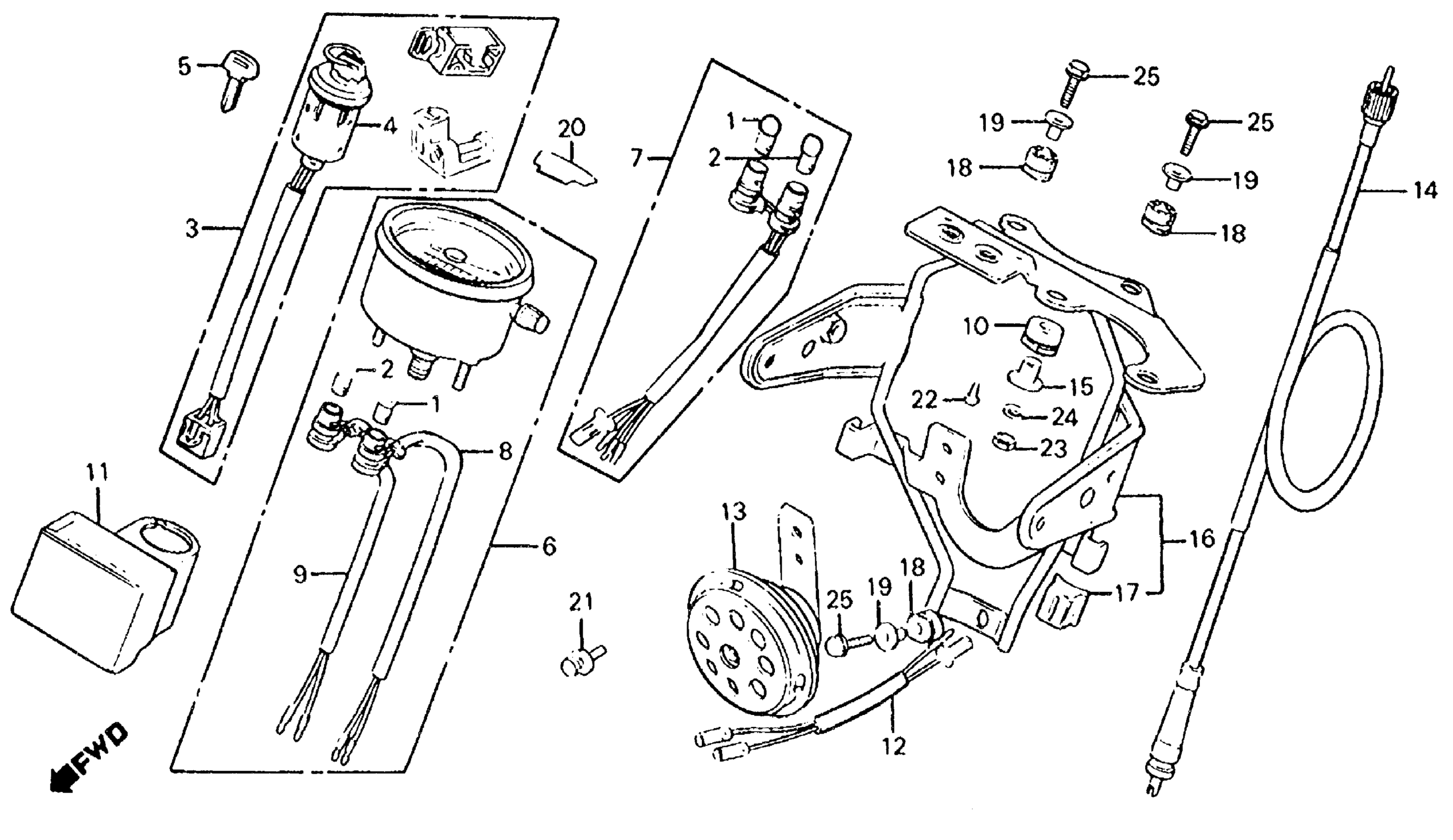

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 SPEEDOMETER + HORN 83-85 Diagram

#

Description
Price

1

BULB, WEDGE BASE (6V3W) (STANLEY)

34902-GA7-008

$4.08

2

BULB, WEDGE BASE (6V1.7W) (STANLEY)

34908-GA7-008

$4.08

3

LOCK SET (NOT AVAILABLE)

35010-195-000

Unavailable

4

SWITCH ASSY., COMBINATION (HONDALOCK) (NOT AVAILABLE)

35100-195-007

Unavailable

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

5

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

5

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

6

SPEEDOMETER ASSY. (MPH)

37200-KA8-600

Unavailable

7

SOCKET, PILOT

37223-KA8-750

Unavailable

8

SOCKET, ILLUMINATION (NOT AVAILABLE)

37224-KB1-670

Unavailable

9

SOCKET, HIGH BEAM PILOT (NOT AVAILABLE)

37227-KB1-670

Unavailable

10

RUBBER, SPEEDOMETER SETTING

37242-435-700

$5.90

11

COVER, PILOT (NIPPON SEIKI) (NOT AVAILABLE)

37601-152-008

Unavailable

13

HORN ASSY. (HIGH)

38110-GS3-013

Unavailable

13

HORN ASSY. (HIGH) This part replaces 38110-KA8-711.

38110-GS3-013

Unavailable

14

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-KA8-000

Unavailable

15

COLLAR (6.3X13)

50324-425-010

$5.05

16

BRACKET, HEADLIGHT CASE *NH1* (BLACK)

61311-KA8-710ZA

Unavailable

17

RUBBER, BRACKET SETTING

61316-361-000

Unavailable

18

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

19

COLLAR, TAILLIGHT SETTING

84706-163-670

$4.08

21

BOLT-WASHER (6X12)

93411-06012-08

$1.55

21

BOLT-WASHER (6X12) This part replaces 93481-06012-08.

93411-06012-08

$1.55

22

SCREW, TAPPING (4X12)

93901-24380

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

25

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
