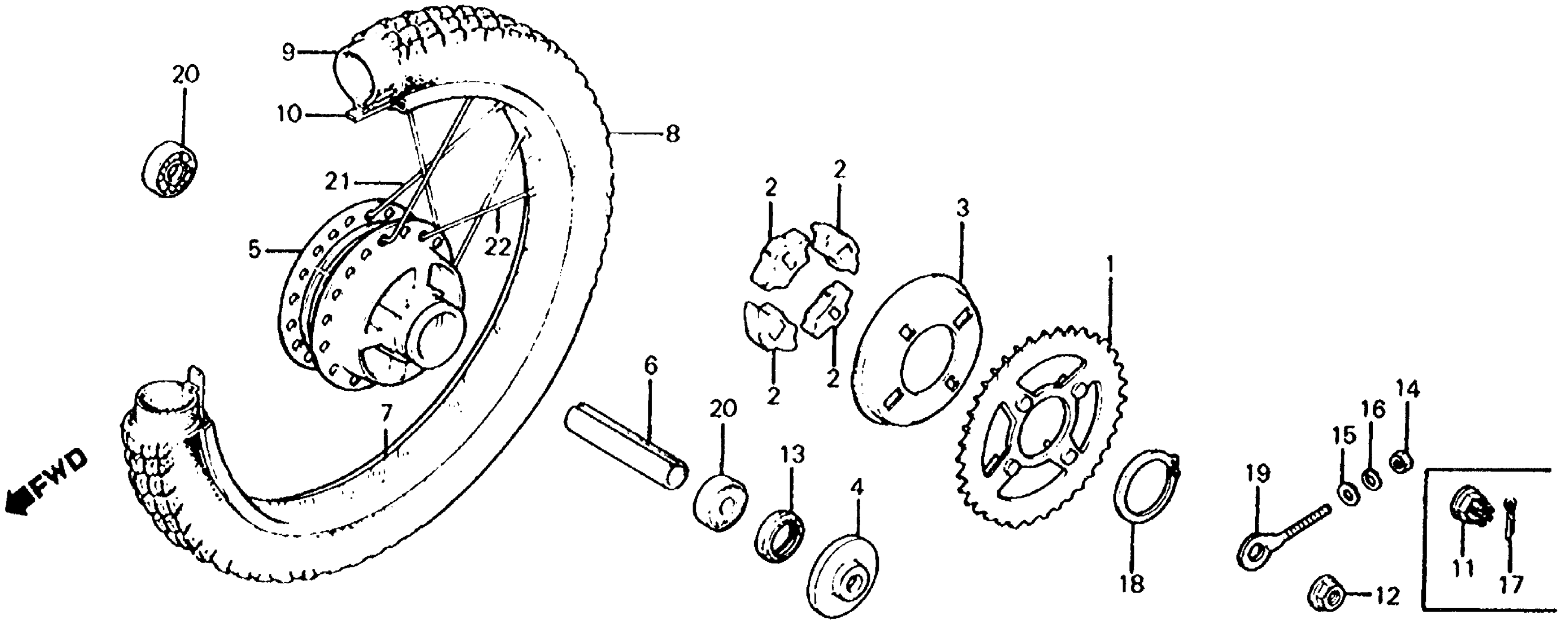

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 REAR WHEEL 81-85 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (42T)

41201-KA8-000

$43.64

2

DAMPER, RR. WHEEL

41241-028-940

$8.78

2

DAMPER, RR. WHEEL This part replaces 41241-459-670.

41241-028-940

$8.78

3

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42304-KA8-000

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-153-600ZB

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-051-000

Unavailable

7

RIM, RR. WHEEL (1.60X16) (DAIDO) (NOT AVAILABLE)

42701-167-003

Unavailable

8

TIRE, RR. (3.00-16) This part replaces 42711-KA8-671.

42711-167-612

Unavailable

8

TIRE, RR. (3.00-16) (4PR TR/GP-2) (INOUE) (NOT AVAILABLE)

42711-KA8-672

Unavailable

9

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

9

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

10

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

10

FLAP, RR. TUBE (14) (INOUE)

42713-116-671

$6.91

10

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

12

NUT, FLANGE (12MM)

90306-181-761

$6.08

13

OIL SEAL (26X37X6)

90753-051-003

$7.66

13

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM)

94103-06000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

18

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

19

ADJUSTER S, R. CHAIN

95014-10010

$4.53

20

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

21

SPOKE B (10X146.0)

97284-42132-K0

$3.01

22

SPOKE B (10X145.5)

97714-42131-K0

$3.01
