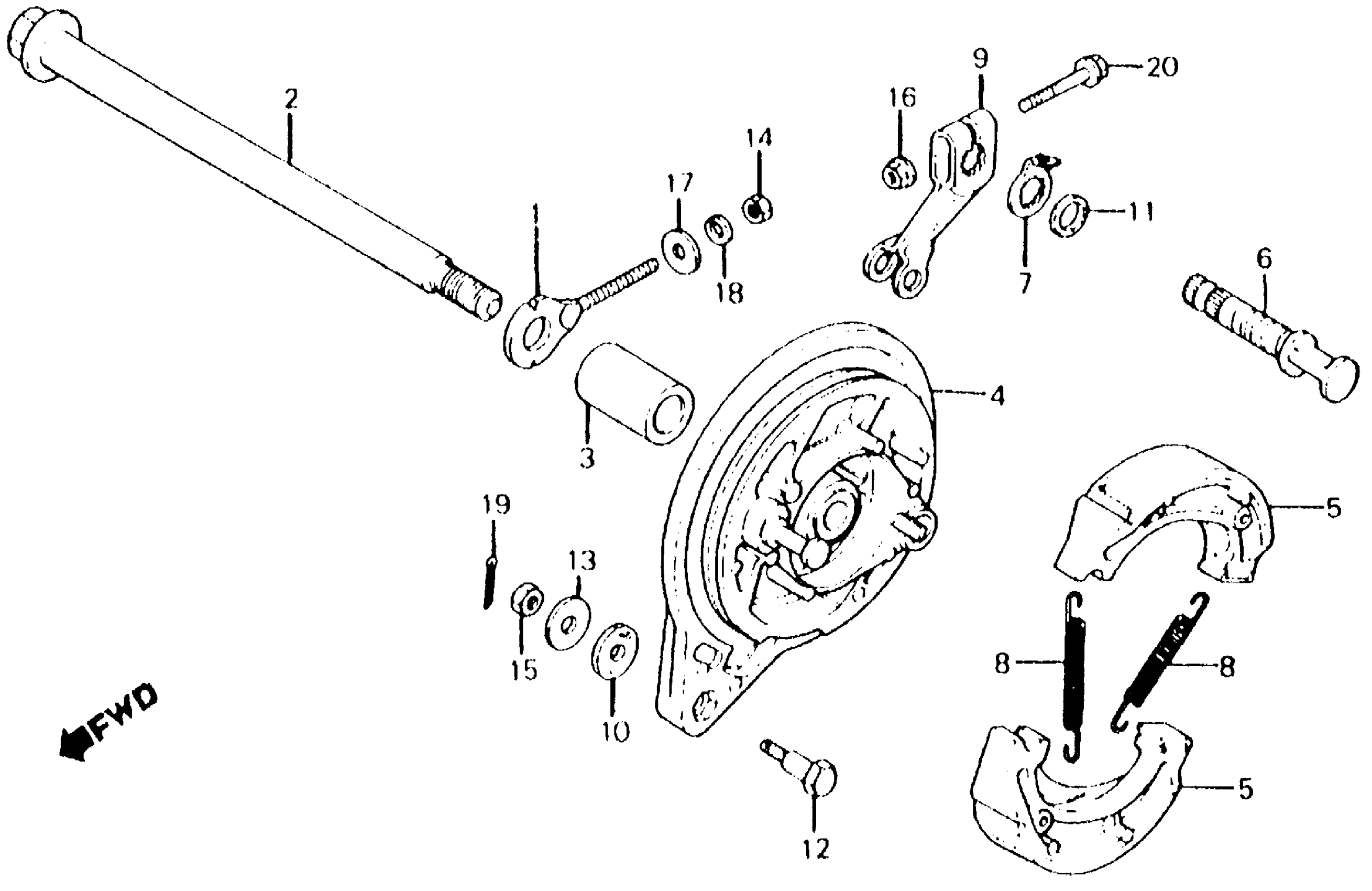

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

ADJUSTER S, R. CHAIN

95014-10010

$4.53

2

AXLE, RR. WHEEL

42301-GJ1-610

Unavailable

2

AXLE, RR. WHEEL This part replaces 42301-KA8-710.

42301-GJ1-610

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-028-010

Unavailable

4

PANEL, RR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

43100-153-601ZA

Unavailable

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

6

CAM, RR. BRAKE

43141-GC5-000

Unavailable

7

INDICATOR, RR. BRAKE

43145-GC5-000

Unavailable

8

SPRING, BRAKE SHOE

43151-110-000

$2.92

9

ARM, RR. BRAKE

43410-GC5-000

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT A, BRAKE STOPPER

92811-10000

$2.92

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, FLANGE (6MM)

94050-06080

$1.49

17

WASHER, PLAIN (6MM)

94103-06000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49

20

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

20

BOLT, FLANGE (6X32)

95701-06032-08

$1.89
