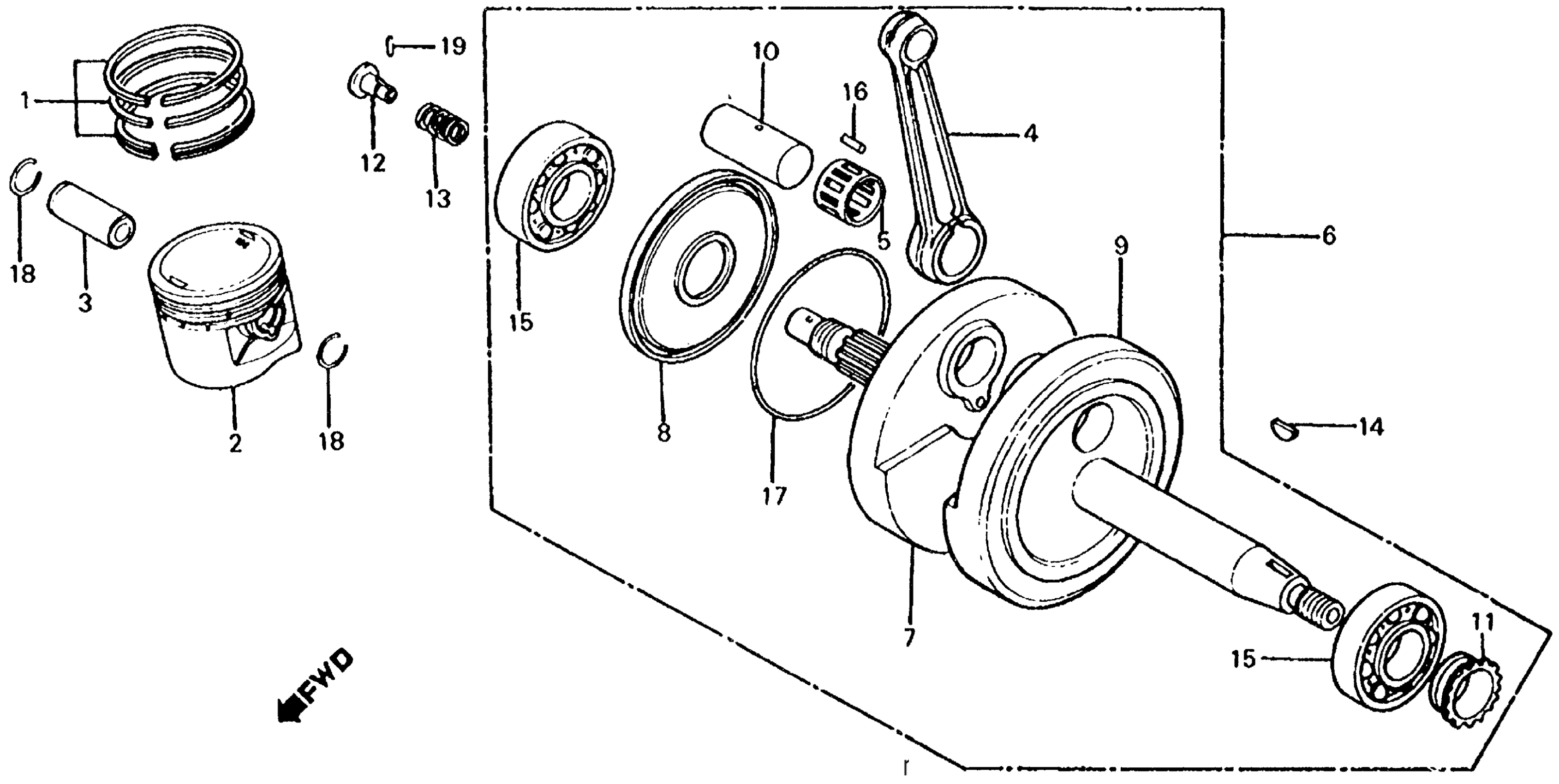

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON

13011-KB4-305

$40.71

1

RING SET, PISTON This part replaces 13011-436-000.

13011-KB4-305

$40.71

1

RING SET, PISTON (OS 0.25) | (Optional).

13012-KB4-305

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13013-KB4-305

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-436-000.

13012-KB4-305

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-436-000.

13013-KB4-305

Unavailable

2

PISTON (STD)

13101-436-000

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-436-000

Unavailable

2

PISTON (OS 0.50) | (Optional).

13103-436-000

Unavailable

3

PIN, PISTON

13111-028-000

$11.08

4

ROD, CONNECTING

13201-028-010

Unavailable

5

RETAINER, CONNECTING ROD ROLLER

13211-235-000

Unavailable

6

CRANKSHAFT (NOT AVAILABLE)

13300-436-020

Unavailable

7

CRANKSHAFT, R.

13311-436-310

Unavailable

8

PLATE, SIDE

13312-436-300

$7.51

9

CRANKSHAFT, L.

13321-436-310

Unavailable

10

PIN, CRANK

13381-436-300

$66.48

11

SPROCKET, TIMING (15T)

14311-436-300

$35.89

12

THROUGH, OIL

15441-149-000

$10.12

13

SPRING, OIL THROUGH

15447-149-000

$2.92

14

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

14

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

14

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-008.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

16

ROLLER, ROD (2.5X10)

91101-001-030

$2.92

17

O-RING (75X2.5)

91301-107-000

$4.87

18

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

19

ROLLER (2X11.8)

96220-20118

$1.49
