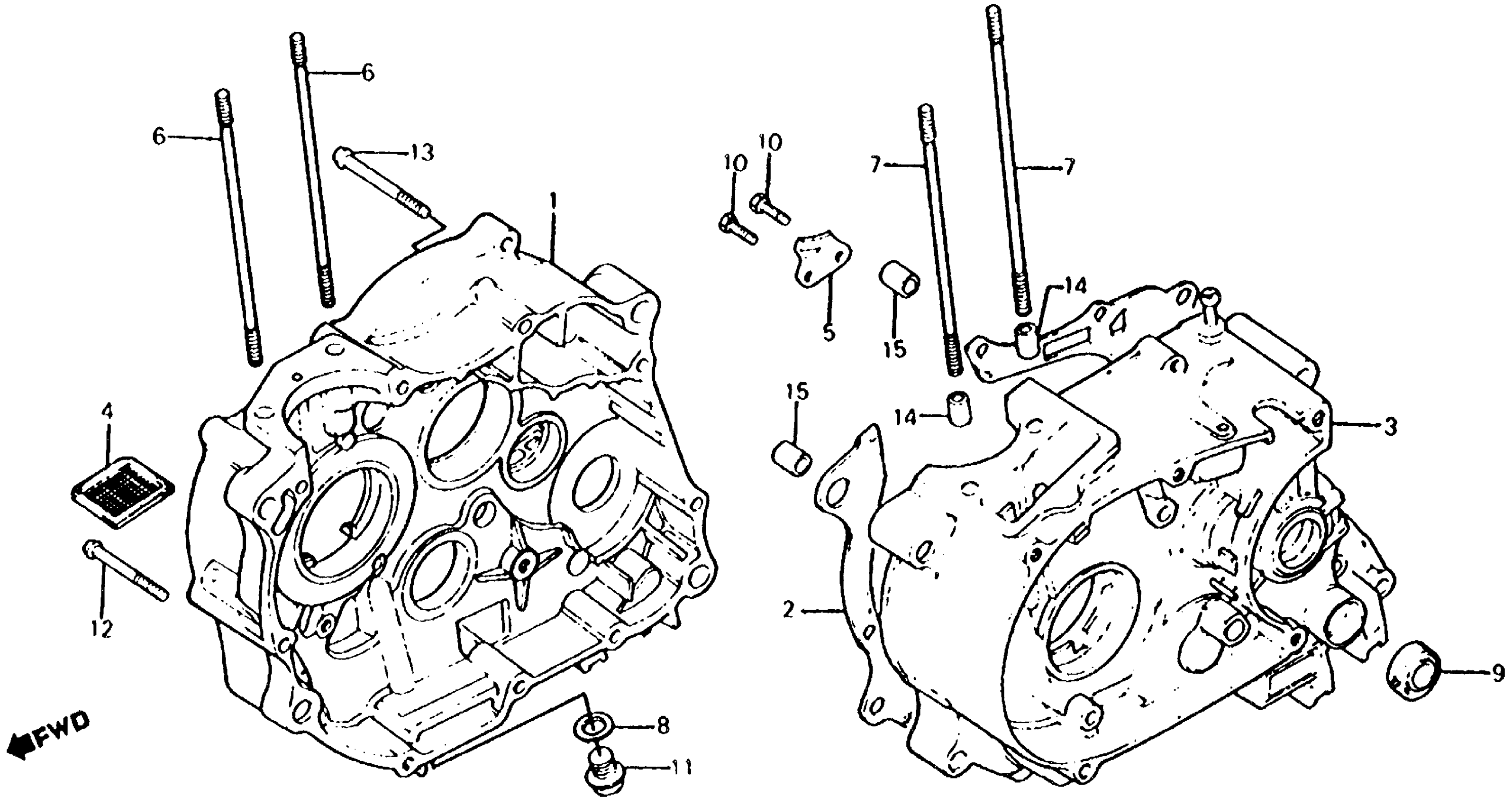

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-436-000.

11100-436-020

Unavailable

1

CRANKCASE, R. This part replaces 11100-436-010.

11100-436-020

Unavailable

1

CRANKCASE, R.

11100-436-020

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KN4-750.

11191-KN4-752

$20.77

2

GASKET, CRANKCASE This part replaces 11191-436-000.

11191-KN4-752

$20.77

3

CRANKCASE, L. This part replaces 11200-436-000.

11200-436-010

Unavailable

3

CRANKCASE, L.

11200-436-010

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

6

BOLT B, CYLINDER STUD

90032-152-000

$6.72

7

BOLT B, CYLINDER STUD

90032-436-000

$12.50

8

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

8

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

8

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

9

OIL SEAL (12X24X5) (NOK)

91203-436-004

$6.16

10

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

12

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

12

SCREW, PAN (6X45)

93500-06045-0A

$1.49

13

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

13

SCREW, PAN (6X55)

93500-06055-0A

$1.49

14

PIN, DOWEL (10X16)

90701-KA8-000

$3.85

15

PIN A, DOWEL (12X20)

94301-12200

$2.29
