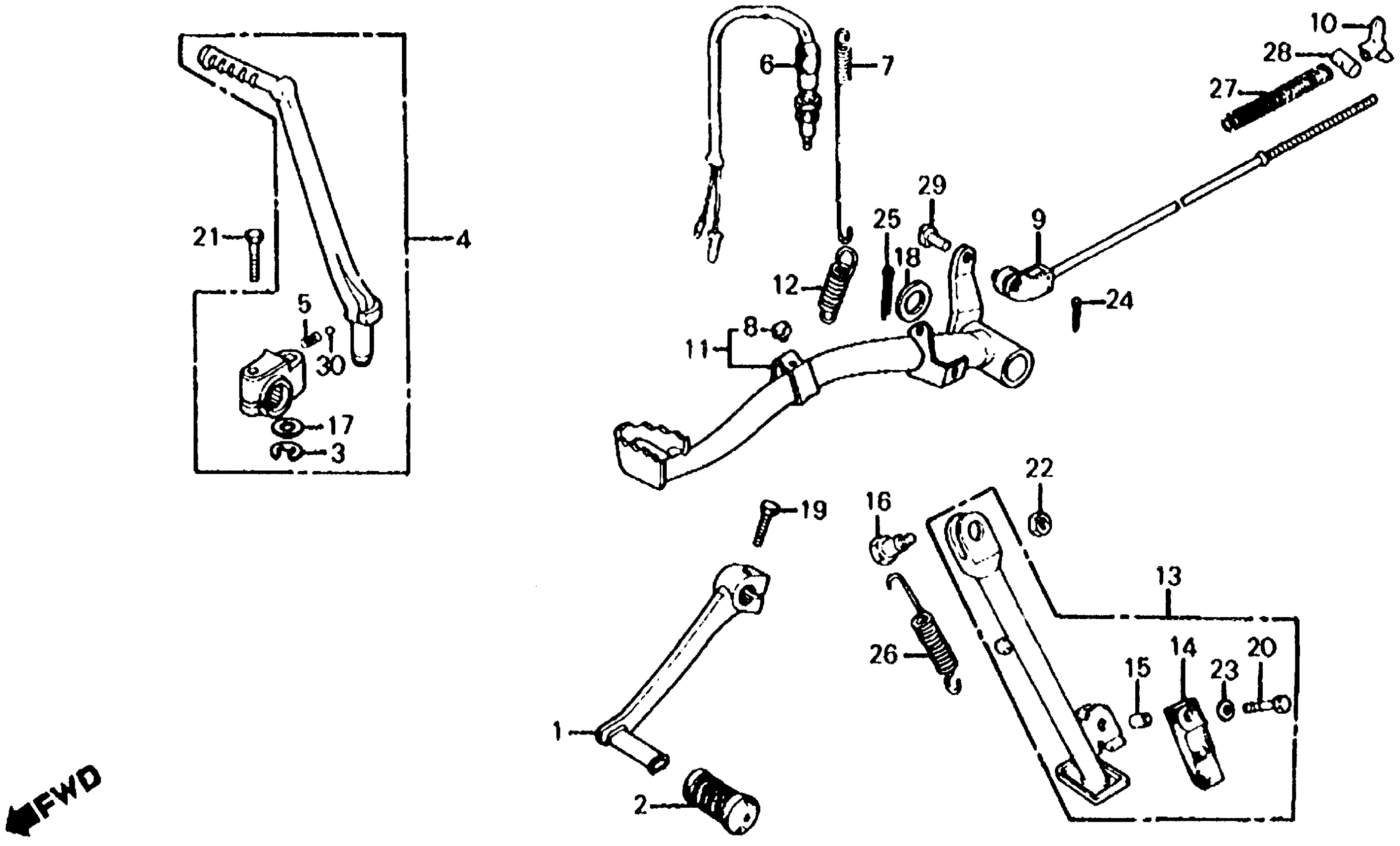

Honda XL100SA (85) MOTORCYCLE, JPN, VIN# JH2HD050-FK400001 BRAKE PEDAL + GEARSHIFT PEDAL + KICK STARTER ARM 81-85 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-KA8-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

CLIP, KICK STARTER ARM

28293-333-000

$2.67

4

ARM ASSY., KICK STARTER (NOT AVAILABLE) This part replaces 28300-KA8-770.

28300-195-000

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

6

SWITCH ASSY., RR. STOP

35350-KE6-830

Unavailable

7

SPRING, STOP SWITCH

35357-166-000

Unavailable

8

PLUG, CHAIN GUARD

40514-333-000

$2.57

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KA8-000

Unavailable

10

NUT, BRAKE ADJUST

43459-434-000

$15.27

11

PEDAL, BRAKE (NOT AVAILABLE)

46500-KA8-000

Unavailable

12

SPRING, BRAKE PEDAL

46514-052-000

Unavailable

13

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KA8-000

Unavailable

14

RUBBER, STAND

50548-324-760

$12.47

15

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

16

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

17

WASHER (13X20)

90505-116-670

$2.92

18

WASHER (17X22)

90521-028-000

$1.89

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

20

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

21

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

21

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

SPRING A, SIDE STAND

95014-72102

$2.84

27

SPRING A, BRAKE ROD

95014-73100

$1.49

28

JOINT, BRAKE ARM

95015-32001

$1.49

29

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
