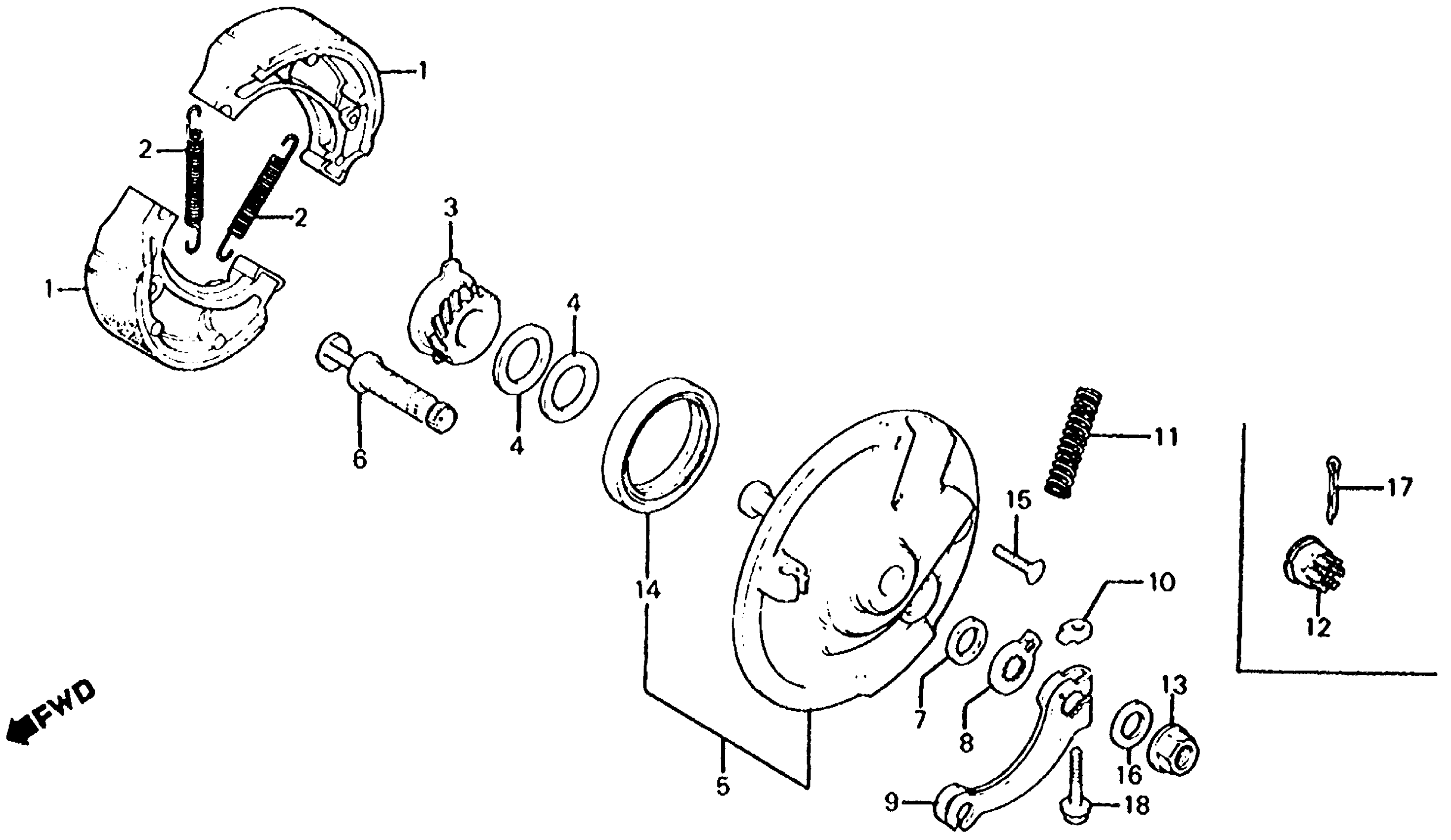

Honda XL100SA (84) MOTORCYCLE, JPN, VIN# JH2HD050-EK300001 TO JH2HD050-EK302070 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

2

SPRING, BRAKE SHOE

43151-110-000

$2.92

3

GEAR, SPEEDOMETER

44804-150-003

Unavailable

4

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.34

5

PANEL SUB, FR. BRAKE

45010-KA8-710

Unavailable

6

CAM, FR. BRAKE

45131-400-020

Unavailable

7

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

8

INDICATOR, FR. BRAKE

45145-GC5-000

Unavailable

9

ARM, FR. BRAKE This part replaces 45410-195-670.

45410-125-780

Unavailable

9

ARM, FR. BRAKE This part replaces 45410-KA8-710.

45410-125-780

Unavailable

9

ARM, FR. BRAKE

45410-125-780

Unavailable

10

NUT, FR. BRAKE ARM SETTING

45436-GC5-000

Unavailable

11

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

13

NUT, FLANGE (12MM)

90306-181-761

$6.08

14

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7)

91251-361-005

$13.39

14

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

15

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

15

SCREW, OVAL (5X18) This part replaces 93700-05018-1A.

93700-05018-0A

$1.49

16

WASHER, PLAIN (12MM)

94101-12000

$1.49

18

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

18

BOLT, FLANGE (6X32)

95701-06032-08

$1.89
