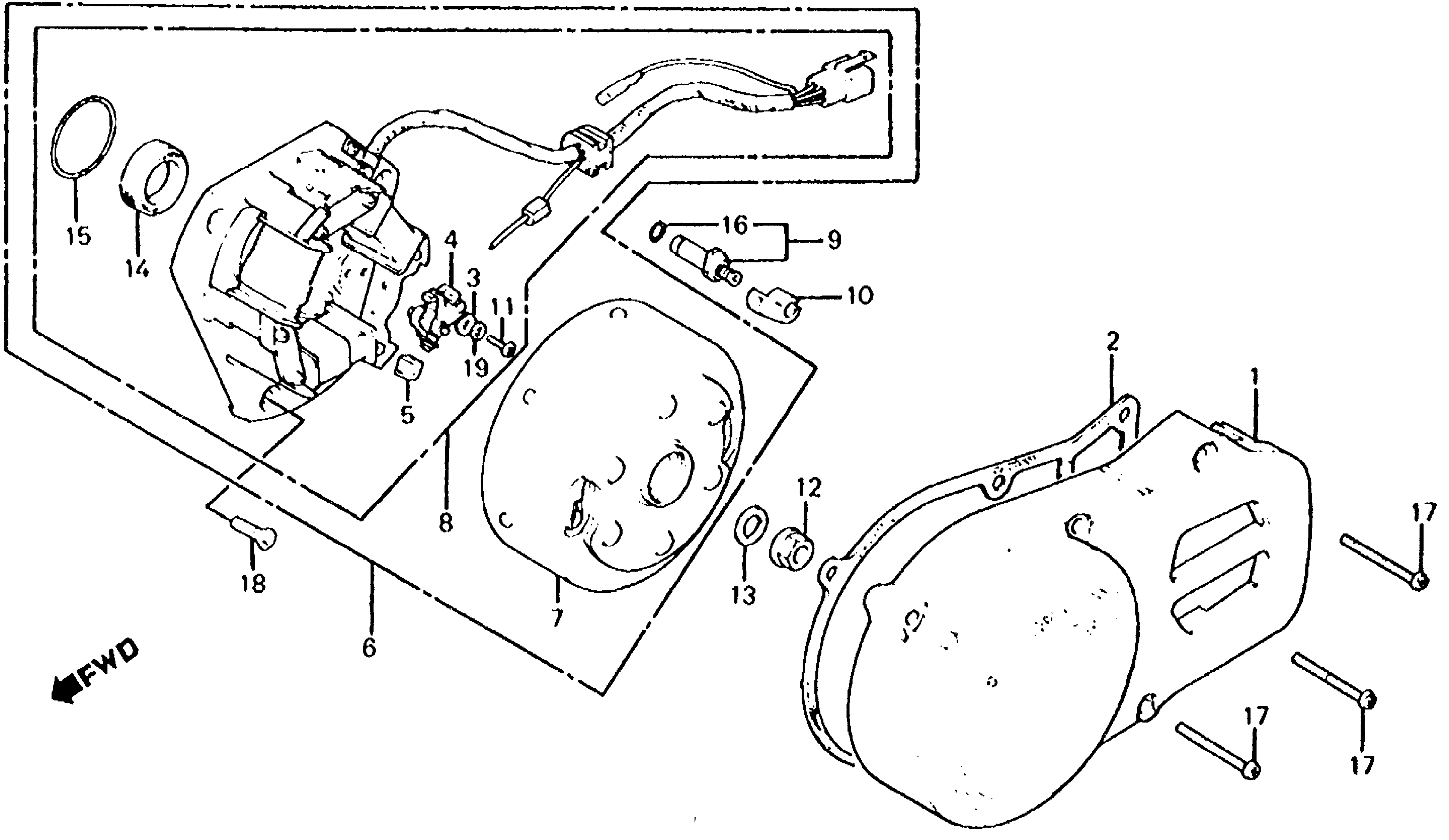

Honda XL100SA (84) MOTORCYCLE, JPN, VIN# JH2HD050-EK300001 TO JH2HD050-EK302070 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-KA8-000

Unavailable

GASKET, L. This part replaces 11394-KN4-750.

11394-KN4-752

$11.61

GASKET, L. This part replaces 11394-436-000.

11394-KN4-752

$11.61

SCREW-WASHER (4X10) This part replaces 17122-590-309.

93893-04010-08

$1.49

SCREW-WASHER (4X10)

93893-04010-08

$1.49

POINTS ASSY. (KOKUSAN)

30202-436-003

Unavailable

FELT, OIL (KOKUSAN) (NOT AVAILABLE)

30205-436-003

Unavailable

ALTERNATOR ASSY.

31100-KA8-710

Unavailable

ROTOR (NOT AVAILABLE)

31110-436-003

Unavailable

STATOR (NOT AVAILABLE)

31120-KA8-710

Unavailable

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

CONTACT ASSY., NEUTRAL SWITCH This part replaces 35750-436-000.

35750-001-020

$9.16

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-436-000

Unavailable

SCREW (4X10) (KOKUSAN) (NOT AVAILABLE)

90011-436-003

Unavailable

NUT, FLANGE (12MM)

90309-375-003

$8.61

OIL SEAL (21X36X7) This part replaces 91202-436-003.

91202-436-004

$7.70

OIL SEAL (21X36X7)

91202-436-004

$7.70

O-RING (43X2.5)

91303-436-003

$7.05

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49
