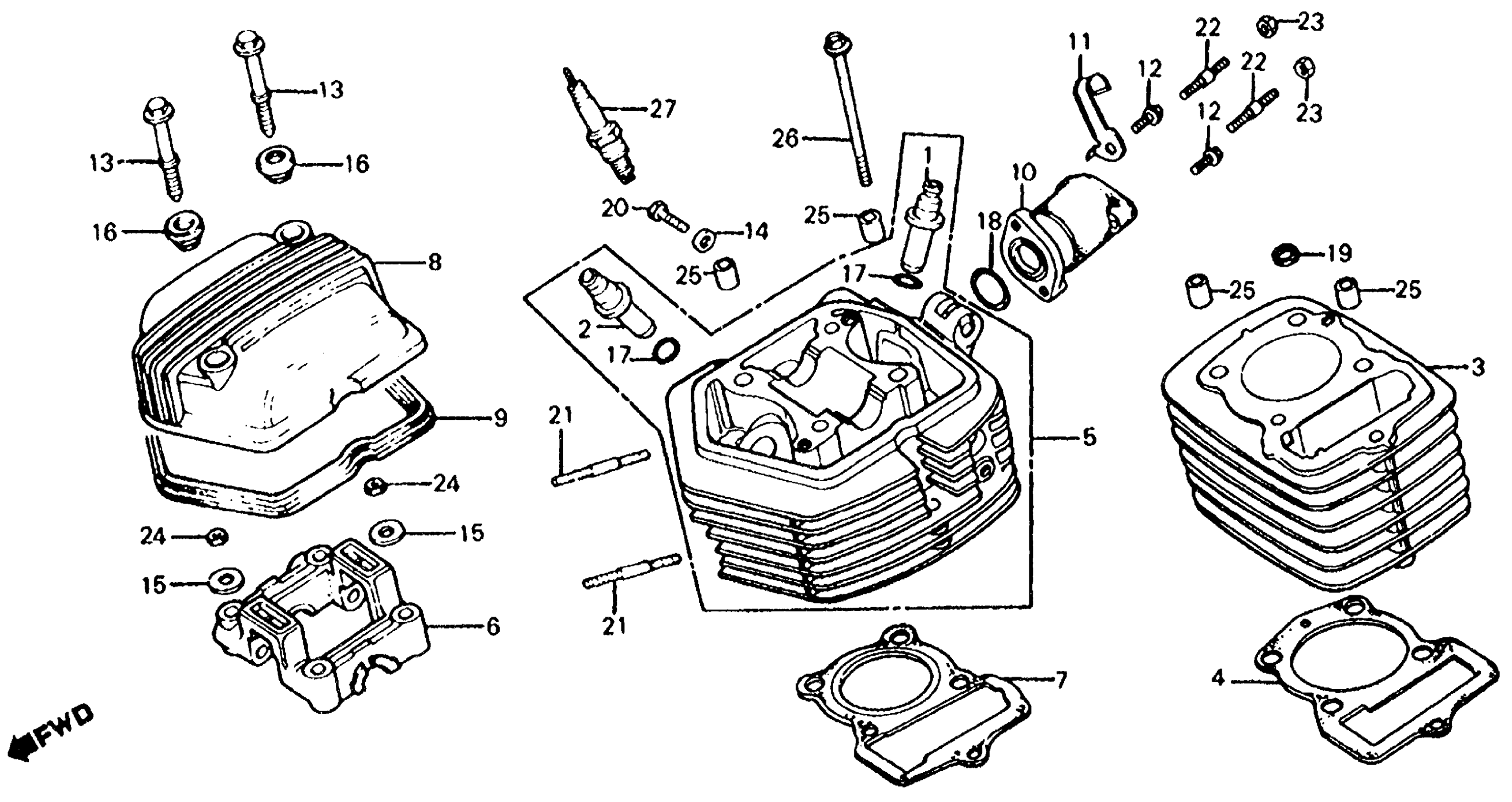

Honda XL100SA (84) MOTORCYCLE, JPN, VIN# JH2HD050-EK300001 TO JH2HD050-EK302070 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-115-300.

12203-333-405

$8.28

1

GUIDE, VALVE

12203-333-405

$8.28

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$17.36

2

GUIDE, VALVE

12023-465-405

$17.36

3

CYLINDER

12100-436-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-KA8-000.

12191-KN4-752

$6.21

4

GASKET, CYLINDER This part replaces 12191-KN4-750.

12191-KN4-752

$6.21

5

CYLINDER HEAD This part replaces 12200-KA8-000.

12200-KA8-010

Unavailable

5

CYLINDER HEAD

12200-KA8-010

Unavailable

6

HOLDER, CAMSHAFT

12210-149-020

$105.43

7

GASKET, CYLINDER HEAD This part replaces 12251-KA8-000.

12251-KA8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-KA8-405

Unavailable

8

COVER, CYLINDER HEAD This part replaces 12301-149-010.

12301-GN1-A80

$67.59

8

COVER, CYLINDER HEAD This part replaces 12301-149-020.

12301-GN1-A80

$67.59

8

COVER, CYLINDER HEAD This part replaces 12301-149-030.

12301-GN1-A80

$67.59

9

GASKET, HEAD COVER (ARAI)

12391-149-003

$18.67

10

PIPE, INLET

17110-KA8-000

$62.57

12

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.79

12

BOLT, FLANGE (6X18)

96001-06018-00

$1.79

13

BOLT, SPECIAL (6X45.5)

90017-436-000

$11.08

14

WASHER, SEALING (6MM)

90441-028-010

$3.29

15

WASHER (8MM)

90483-028-000

$1.40

16

RUBBER, SETTING

90541-195-670

$4.09

17

O-RING (10X1.6)

91301-200-000

$2.87

18

O-RING (29.5X3)

91301-401-000

$3.36

18

O-RING (29.5X3) This part replaces 91302-436-003.

91301-401-000

$3.36

18

O-RING (29.5X3) This part replaces 91302-436-004.

91301-401-000

$3.36

19

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.44

19

GASKET, RUBBER (9MM)

91306-141-000

$4.44

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.47

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.47

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.47

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.47

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.47

21

BOLT, STUD (6X32)

92700-06032-0B

$1.78

21

BOLT 2, STUD (6X20)

92900-06020-0B

$1.71

22

BOLT, STUD (6X28) This part replaces 92712-06028.

92712-06028-0B

$1.13

22

BOLT, STUD (6X28)

92712-06028-0B

$1.13

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

23

NUT, HEX. (6MM)

94001-06200-0S

$1.31

24

NUT, HEX. (8MM)

94002-08200-0S

$1.31

25

PIN A, DOWEL (10X16)

94301-10160

$2.80

26

BOLT, FLANGE (6X110) This part replaces 95700-06110-08.

95701-06110-08

$3.72

26

BOLT, FLANGE (6X110)

95701-06110-08

$3.72

27

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.28

27

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.28

27

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.35

27

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.28

27

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.35

27

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.35
